3DB 23063 ADAA - Rev 004 July 2007 Vol. IV-6-1
Chapter 6. Node and Terminal
Information
The Information screen provides user configurable fields for terminal and site
name, site grid, contact details and notes. Refer to Figure 6-1.

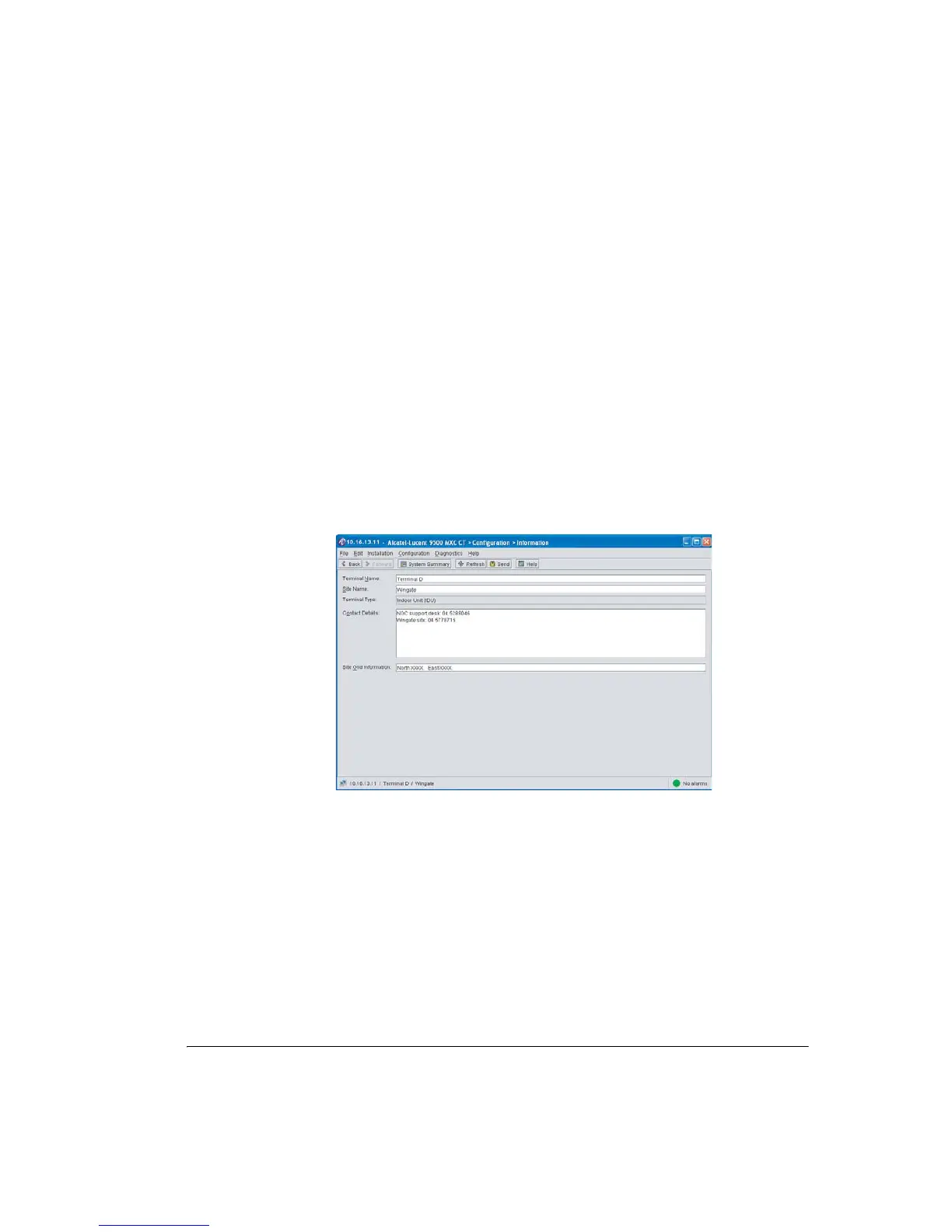

Figure 6-1. Information Screen
The terminal name and site name set in this screen are displayed in the status bar
on all screens.
• The terminal name is also displayed in the module name-line for the NCC (the
NCC name is the terminal name).
• The terminal name can also be changed in the System Summary screen by
right-clicking in the NCC module and selecting the Rename option.
