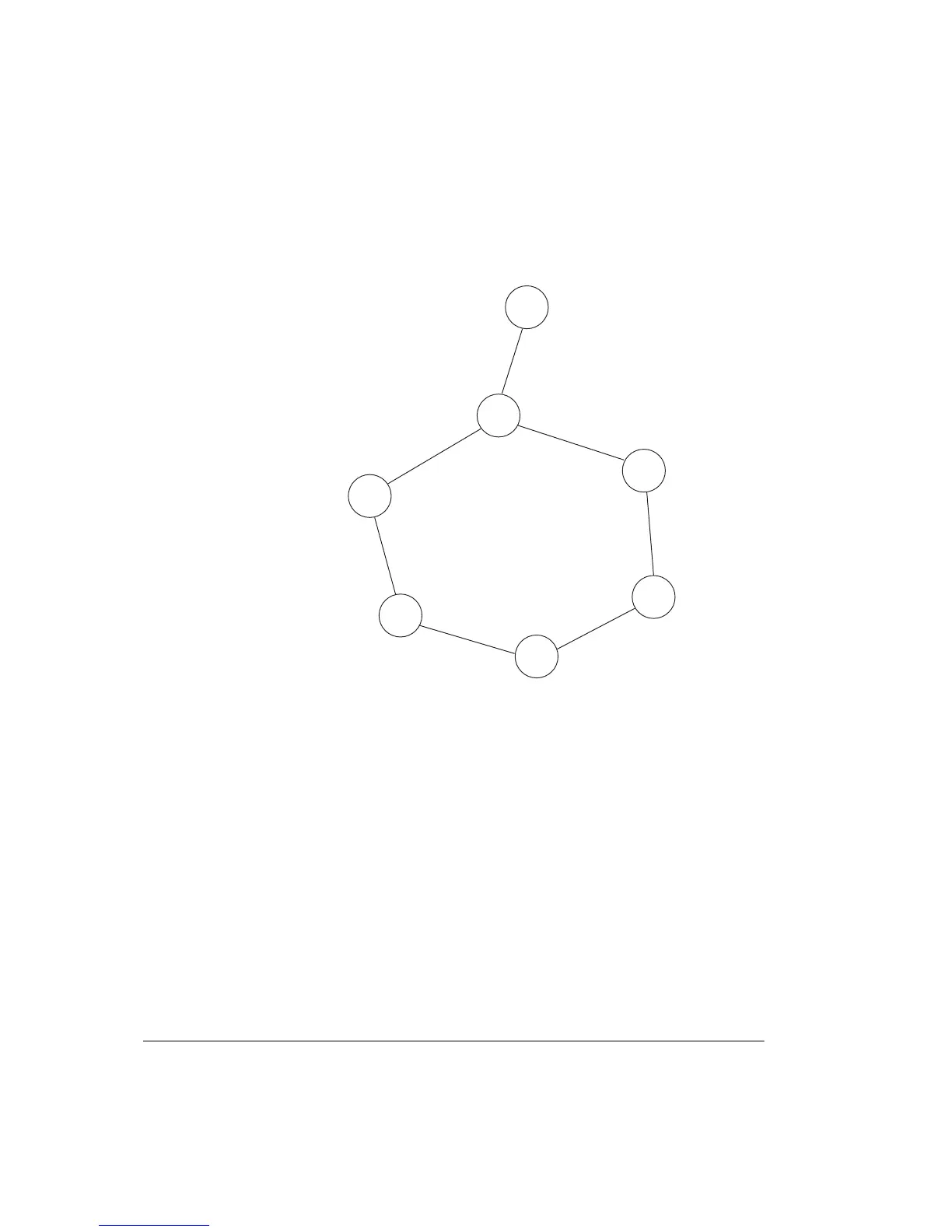

Figure A-7. Example Ring Network NMS IP Addressing
Date/Time
The Configuration > Date/Time screen is standard for all 9500 MXC network
configurations. For details, refer to Volume IV, Chapter 12.
Node A
Node D
Node F
Node E
Node B
Node C
10.16.2.1
255.255.255.0
10.16.4.1
255.255.255.0
10.16.5.1
255.255.255.0
10.16.6.1
255.255.255.0
10.16.3.1
255.255.255.0
10.16.1.1
255.255.255.0
10.17.1.1
255.255.255.0
9500 MXC Ring Network
Radio
Radio
Radio
Radio
Radio
Radio
Radio
Link 2
Link 1
Link 1
Link 2
Link 3
Link 2
Link 1
Link 2
Link 2
Link 1
Link 1
Link 2
Link 1
INU
INU
INU
INU
INU
INU
Select Dynamic Routing (OSPF or RIP) for each node in the ring. The Static routing option
must not be selected for ring networks.
