Alcatel-Lucent 9500 MXC - Installing Building Entry Suppressor Procedure

Chapter 2. Outdoor Installations
Vol. III-2-28 Alcatel-Lucent

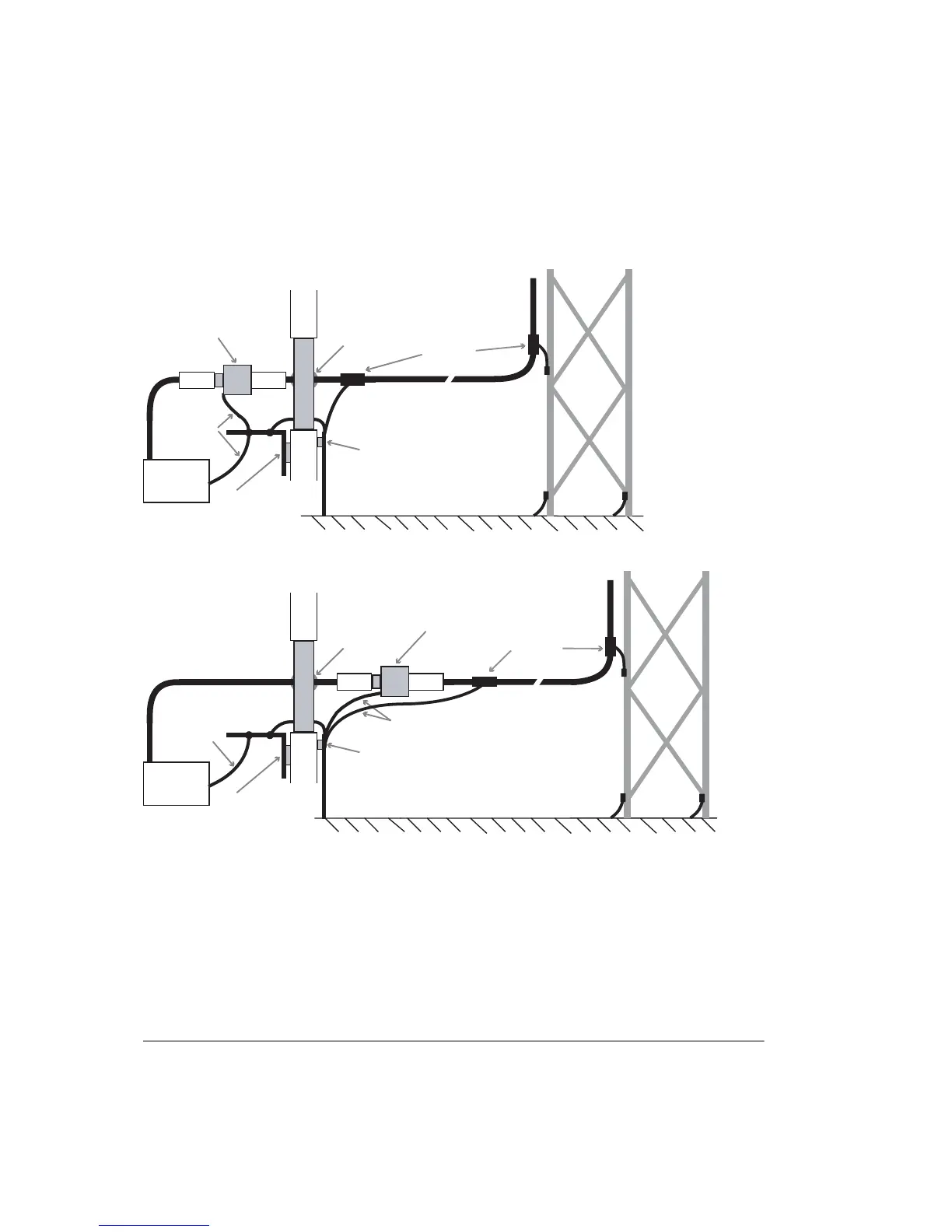

Figure 2-17. Suppressor Installed Inside
Figure 2-18. Suppressor Installed Outside
Installing Building Entry Suppressor Procedure
To install the lightning surge suppressor at building entry:
1. Determine where the suppressor is to be installed. The normal location is just
inside the building.
2. Trim the cable from the ODU at the point where the suppressor is to be
installed. Terminate the cable with a Type N male connector from the ODU
Accessories Kit, and connect to the Type N female connector on the
Equipment
Racks
Inside Outside
Station Ground
Wall Gland
Ground Lead
Master Ground Bar
Grounded Copper Plate
Lightning Suppressor
Ground Kit
Equipment
Racks
Inside Outside
Station Ground
Wall Gland
Ground Lead
Master Ground Bar
Ground Lead
Grounded Copper Plate
Lightning Suppressor
Ground Kit
