Alcatel-Lucent 9500 MXC - Platform Layout

Chapter 3. 9500 MXC Nodes
Vol. II-3-2 Alcatel-Lucent
Platform Layout
Figure 3-1 illustrates platform support for:
• Non-protected and protected/diversity links
• Slot availability for option plug-ins
• Over-air data types supported
• ODU options

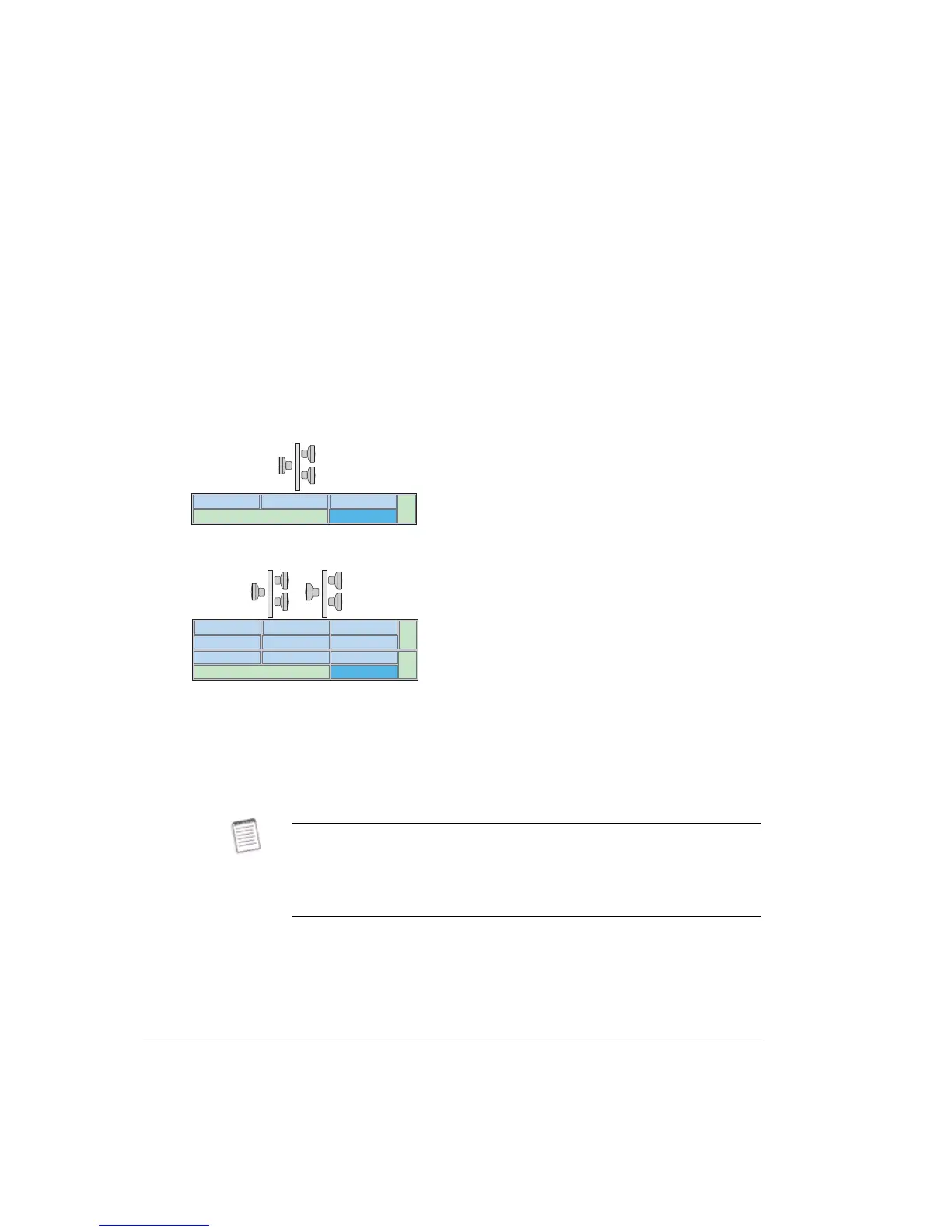

Figure 3-1. INU and INUe Platforms
Fan
Slot 1 Slot 2 Slot 3
Slot 4
Fan
Slot 7
Slot 5 Slot 6
Slot 9
Slot 8
NCC
Slot 10
Fan
Slot 1 Slot 2 Slot 3
NCC Slot 4
Slots 1 to 4 support radio and trib options for:
- E1/DS1, E3/DS3, STM1/OC3, Ethernet
- Auxiliary data and alarm I/O
NPC option may be installed in slot 4
Slots 1 to 9 support radio and trib options for:
- E1/DS1, E3/DS3, STM1/OC3, Ethernet
- Auxiliary data and alarm I/O
Slot 10 reserved for NPC option
Supports 3 non-protected links or
1 protected/diversity and 1 non-protected link
INU and INUe support ODU 300ep/hp:
- ODU 300ep: QPSK to 256QAM, 5 to 23 GHz, requires RAC 30, RAC 40 or RAC 3X plug-in
- ODU 300hp: QPSK to 256QAM, 7 to 38 GHz, requires RAC 30, RAC 40 or RAC 3X plug-in
Supports 6 non-protected links or
1 protected/diversity and 4 non-protected links o
r
2 protected/diversity and 2 non-protected links o
r
3 protected/diversity links
INU
INUe
ODUs
During April 2007 an updated IDCe (INUe chassis) was introduced. This IDCe
accepts a new 2RU FAN as well as the original 1RU FANs. The updated IDCe is
form-fit-function compatible with the previous IDCe, and retains its 002 part
number extension.
One 2RU FAN is supplied as standard with the updated IDCe.
