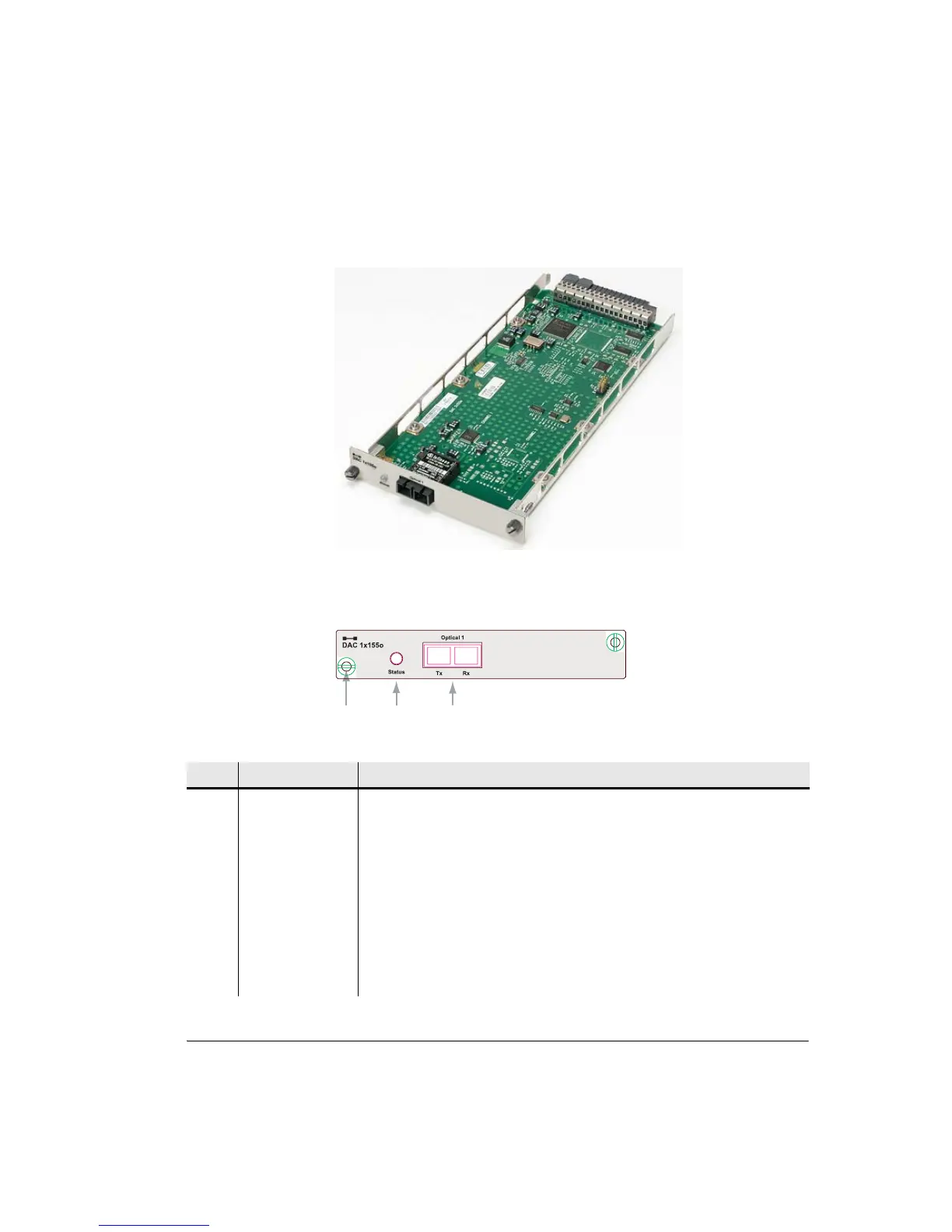

Figure 3-21. DAC 155o Plug-in
Figure 3-22 shows the DAC 1x155o front panel layout. Table 3-19 on page 3-39
describes the interfaces.
Figure 3-22. DAC 1x155o Front Panel Layout
Table 3-19. DAC 1x155o Front Panel Description
1
23
No Item/Label Description
1 Plug-in fastener Finger-grip screw-type fastener and card pull (2).
2 Status LED Status LED provides indications of:
Off INU power off
Green Normal operation
Orange flashing Configuration not supported, or software / hardware
incompatible
Red Critical alarm: Trib LOS or SW/HW failure
3 Trib. connector SC type single mode optical connector
