9500 MXC User Manual
3DB 23063 ADAA - Rev 004 July 2007 Vol. II-3-41

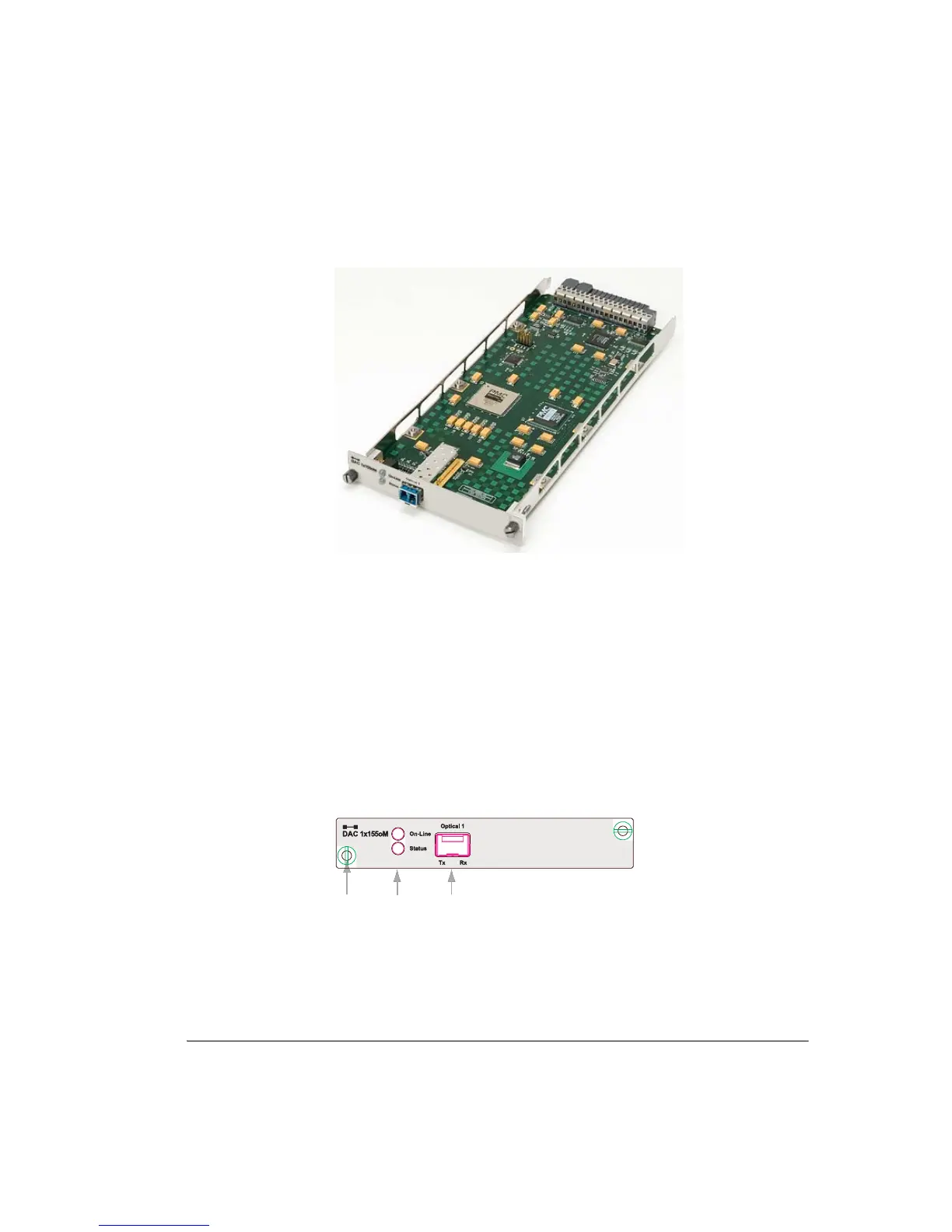

Figure 3-23. DAC 155oM Plug-in
The connector assembly is an LC type on an SFP (small formfactor pluggable)
transceiver module, and cable options are available, as accessories, for extension
to SC or FC types. LC-LC attenuator cable options are also available.
Where protection of the DAC is required (line protection), two DAC 1x155oM
plug-ins can be installed and splitter Y-cables fitted to provide extensions to
single Tx and Rx LC connectors.
When installed in an INUe, it must be located only in slots 1 to 6 when NMS
transport over the DAC 155oM is required. If NMS access is not required (no
NMS transport over the DAC 155oM), the DAC 155oM may also be installed in
slots 7 to 9.
Figure 3-24 shows the DAC 155oM front panel layout. Table 3-20 describes the
interfaces.
Figure 3-24. DAC 155oM Front Panel Layout
1
2
3
