9500 MXC User Manual
3DB 23063 ADAA - Rev 004 July 2007 Vol. II-3-65
• Graphed historical Rx and Tx throughputs, frame type and discards per port and
channel.
• Historical statistics per port and channel.
• Comprehensive RMON performance statistics per port and channel.
• Event history.
For more information refer to Volume IV, Chapter 15 for:
• DAC ES and DAC GE System/Controls Screens
• DAC GE Performance
• History Screen: Ethernet
DAC GE Front Panel Layout
Figure 3-33 shows the DAC GE front panel layout. Table 3-22 describes the
interfaces.

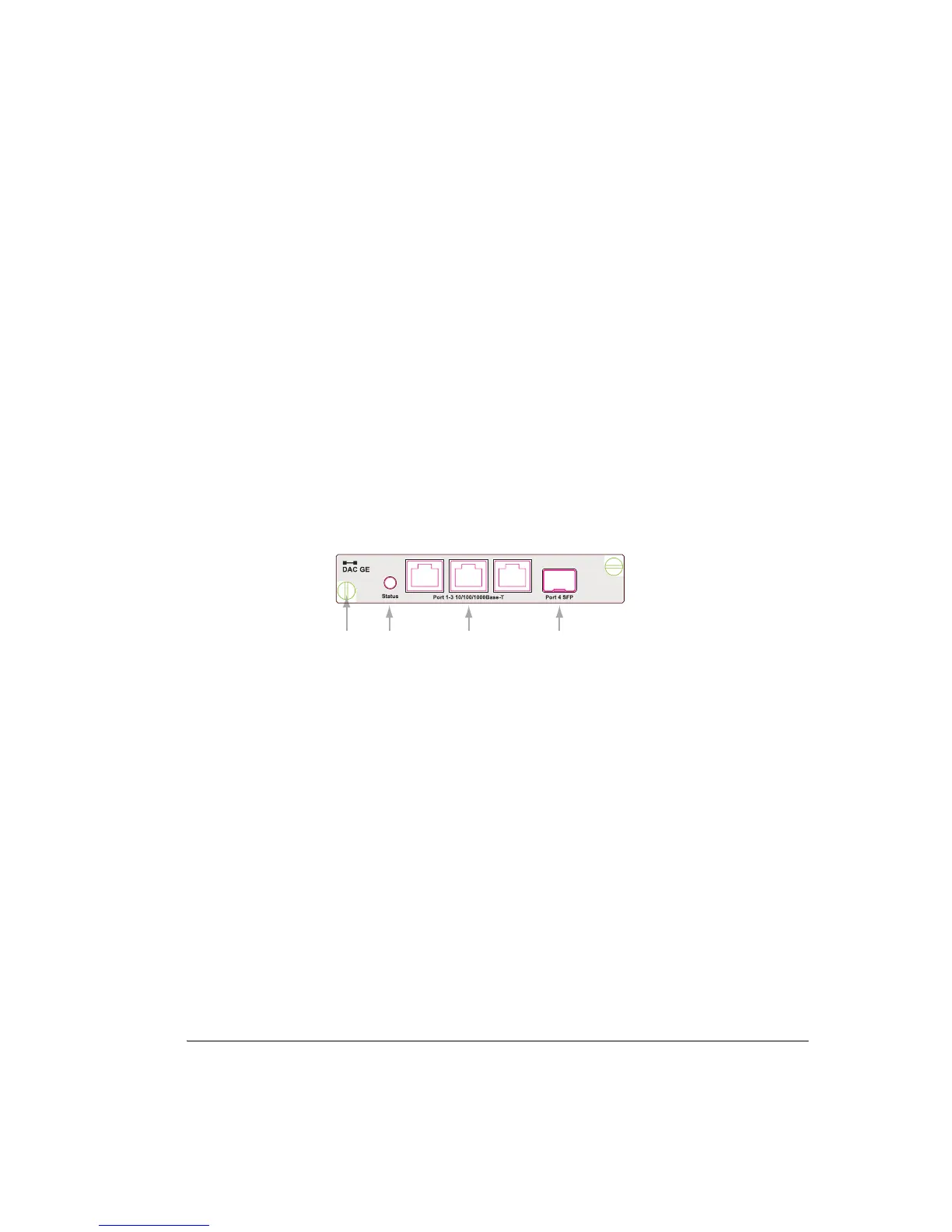

Figure 3-41. DAC GE Front Panel Layout
12 3 4
