Chapter 2. 9500 MXC Terminals
Vol. II-2-12 Alcatel-Lucent
Table 2-5. IDU ES ETSI Options
Please check the Product Release Notes to confirm the availability of modem profiles.

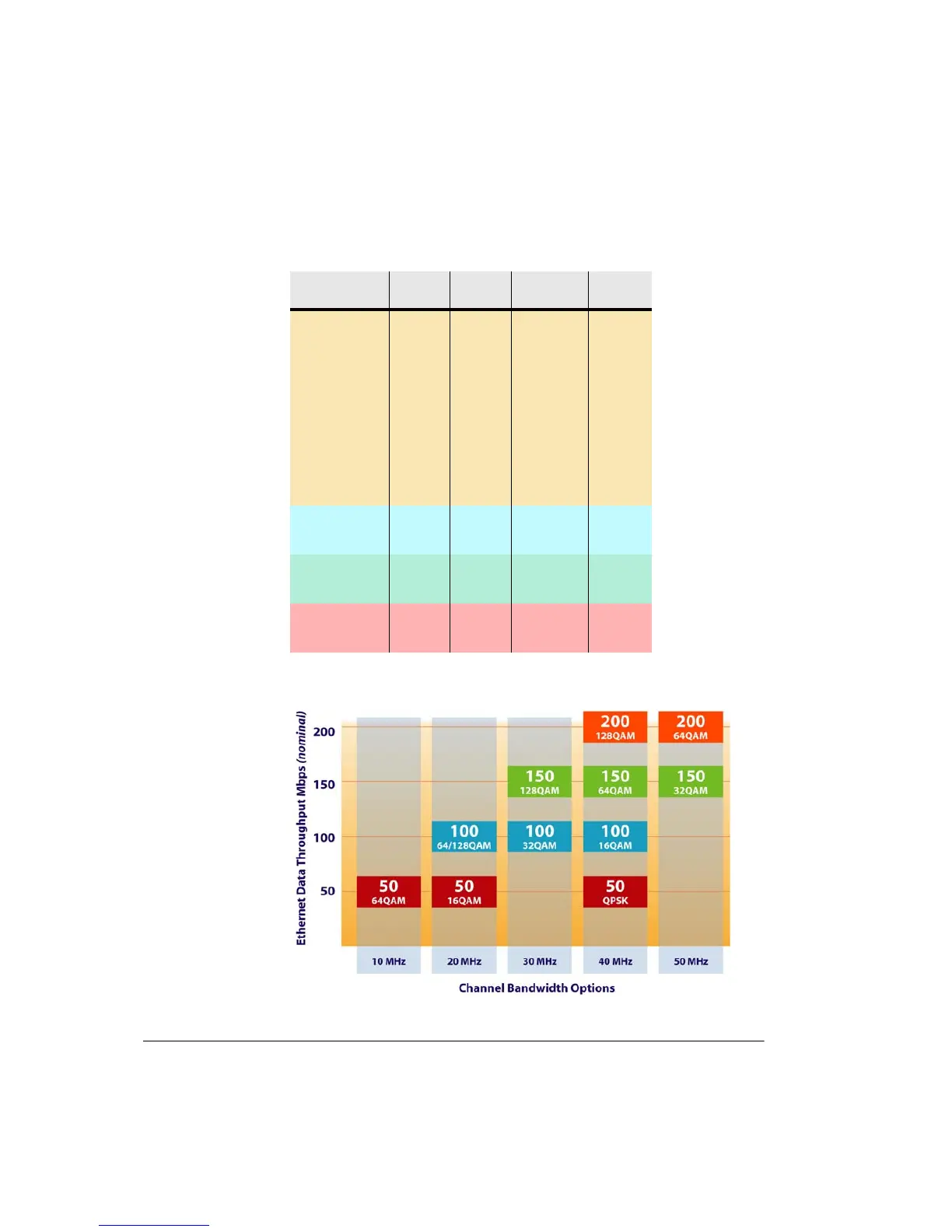

Figure 2-4. IDU ES ANSI: Nominal Capacity and Channel BW Options
IDU ES License
Option
Ethernet
Mbps
Channel
BW, MHz
Modulation License
50 Mbps 10 7 QPSK Base
50 Mbps 20 7 16 QAM Base
50 Mbps 20 14 QPSK Base
50 Mbps 32 7 64QAM Base
50 Mbps 40 28 QPSK Base
50 Mbps 40 14 16QAM Base
50 Mbps 55 14 32QAM Base
50 Mbps 64 28 16 QAM Base
100 Mbps 82 28 16 QAM Upgrade 1
100 Mbps 106 28 32 QAM Upgrade 1
150 Mbps 150 28 128 QAM Upgrade 2
150 Mbps 150 56 16 QAM Upgrade 2
200 Mbps 190 28 256QAM Upgrade 3
200 Mbps 196 56 64 QAM Upgrade 3
