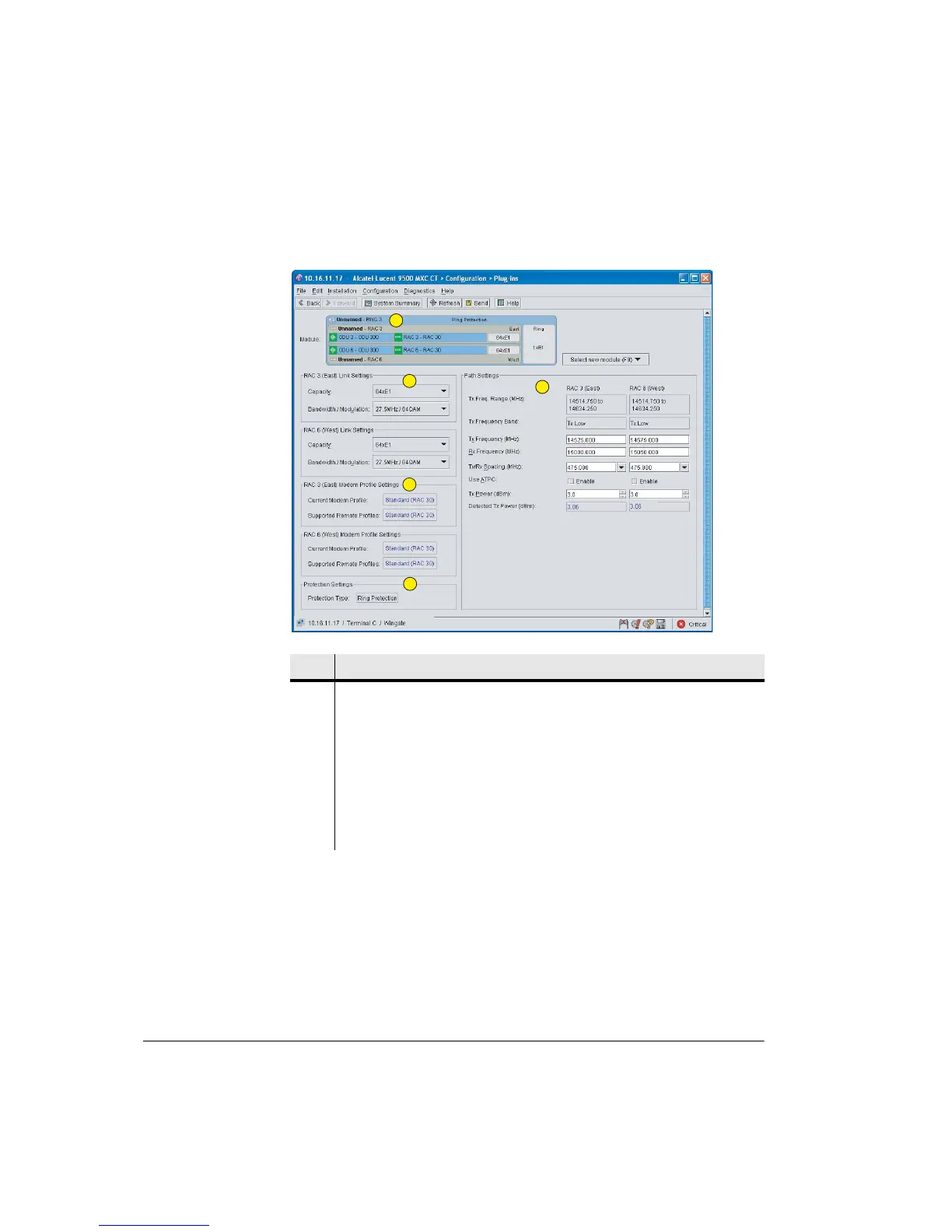

Figure A-4. Typical Plug-In Screen for a Ring
Item Description
1 Module shows ring-protected STM1 links with RACs in slots 1 & 4.
2 East and West links are independently set for capacity and bandwidth/
modulation. For a normal ring (no pt-to-pt overlay) the east and west capacity
settings should be set for same capacity.
3 Path settings are independently set for the East and West links.
4 Modem profile settings are confirmed for both RACs.
5 The Protection Settings Panel simply confirms that ring protection has been set.
1
2
3
4
5
