Vol. VI-A-16 Alcatel-Lucent
Ring-Node Traffic Circuits Connection

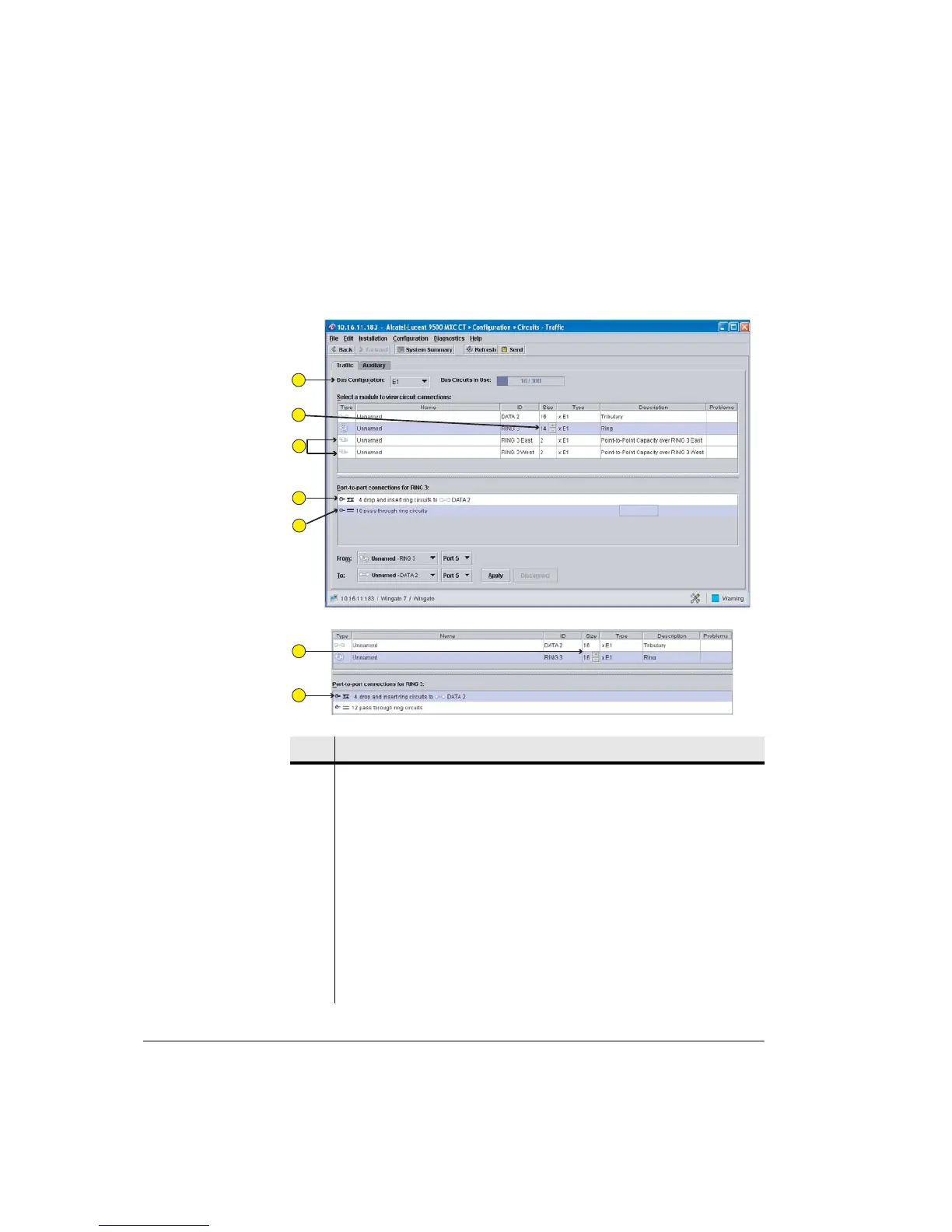

Figure A-5 shows an example ring-node circuits screen.
Figure A-5. Example Circuits Screen for 16xE1 East and West Links
Item Description
1 Backplane bus is set to match the rate type selected in the Plug-ins screen.
2 Protected ring capacity is set here.
3 Balance of available capacity on ring (2xE1) is automatically assigned as
available Pt-to-Pt capacity.
4 Four of the protected ring circuits are connected to DATA 2.
5 Balance of protected ring circuits (10xE1) are passed-through.
6 Alternative view shows all 16xE1 circuits assigned to the Ring; there are no
circuits available for Pt-to-Pt.
7 Local connections to DATA 2 remain at 4xE1, resulting in pass-through
circuits incrementing to 12xE1
1
2
3
4
5
6
7
