9500 MXC User Manual
3DB 23063 ADAA - Rev 004 July 2007 Vol. II-3-5

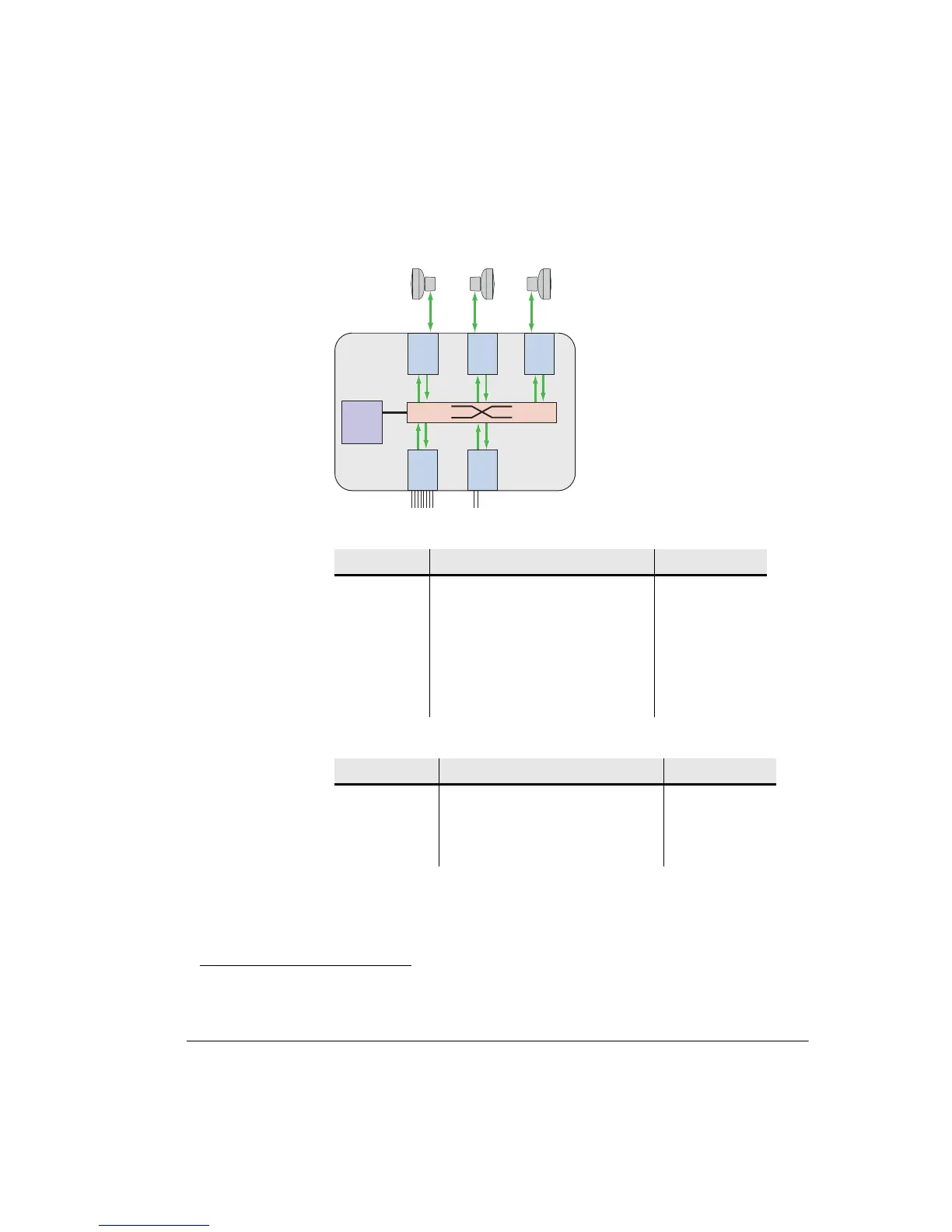

Figure 3-3. Relationship of Plug-in Cards to the Backplane
Table 3-1. PDH and SDH Link Options and Backplane Maximums
1
Table 3-2. Ethernet Link and Backplane Maximums
For more information on the traffic handling maximums of a Node when used in
linear and ring network configurations, refer to Node Capacity Rules,
Appendix G.
Bus Rate Link Capacity Options Backplane Max.
E1 5x, 10x, 16x, 20x, 32x, 40x, 52x, 64x,
75x, 93x, 100x
100x
DS-1 4x, 8x, 14x, 16x, 28x, 32x, 56x, 70x,
84x, 100x, 127x
128x
DS-3 1x, 2x, 3x, 4x 6x
STM1/OC-3 1x, 2x 2x
1
The Link/RAC options do not support NxE3. Where E3 trib connections are required, use the E13 mode
on the DAC 3xE3/DS3M.
Bus Rate Link Capacity Options Backplane Max.
Nx2.048 Mbps 8 to 204 Mbps 204 Mbps
Nx1.544 Mbps 6 to 154 Mbps 198 Mbps
Nx155.52 Mbps 155.5 or 311 Mbps 311 Mbps
RACRAC
RAC
DAC AUX
NCC
INU
