2.5 Normal Measurement
HA-8190V 2-19
2 Label the sample tubes with sample ID barcode labels (when needed).
Attach sample ID barcode labels to the sample tubes when measurement results are managed by sample IDs. Go to
step 3 if sample IDs are not used.

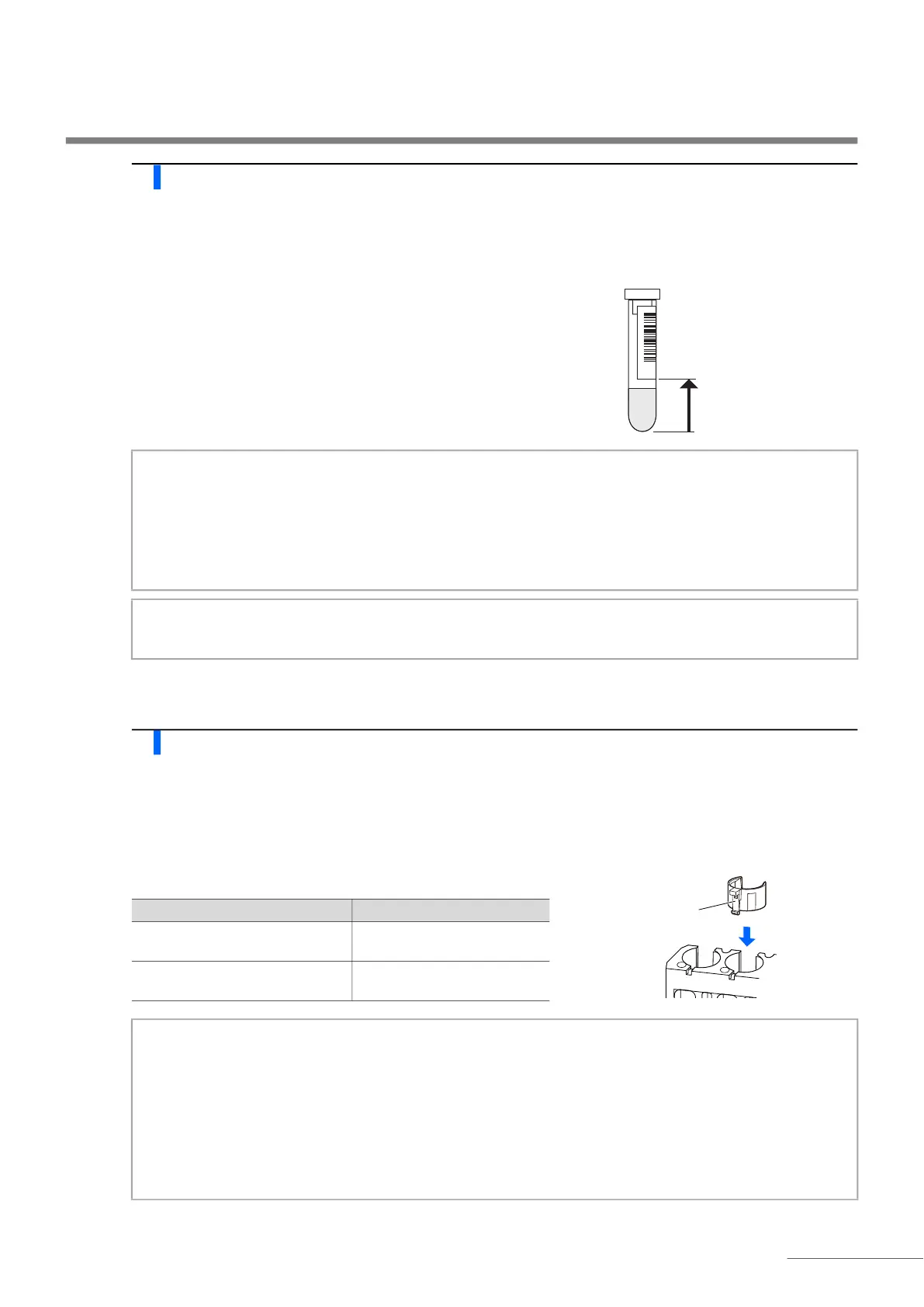

a Label the sample tube with a barcode label.
• Attach the barcode label 20 mm or more above the bottom end of
the sample tube, as shown on the right.
• Label empty sample tubes when using the whole blood pair rack
or hemolysis pair rack.
3 Set the samples in the sample racks.
 When preparing sample tubes with sample:
Use the normal rack (no label) or start rack (START) for non-anemia samples, and the anemia rack (ANEMIA) for
anemia samples.
a Set the port guides in the sample rack if needed.
a12569014872a
Min. 20 mm
above the bottom
IMPORTANT:
 Make sure that the entire barcode label adheres tightly to the sample tube.
 Do not attach one barcode label on top of another. Attaching more than one barcode label to sample tubes
may prevent the instrument from correctly reading the barcode or may keep the sample tube from spinning.
 Do not set the sample tube in the sample rack with the barcode label coming off. The label may cause a
jam inside the instrument while the sample is stirred, preventing proper stirring.
NOTE:
Barcode labels cannot be attached to sample cups.
2
1
Port guide
Sample tube Required adapter
Sample tube
(About 13 mm diameter)
Port guide (gray)
Sample tube
(About 15 mm diameter)
None
NOTE:
 For sample tubes of about 13 mm diameter, set the port guide.
 For sample tubes of about 15 mm diameter, remove the port guide. Sample tubes of this size cannot fit in
the rack due to the port guide.
 If the port guide is dirty with sample or other substance, the barcode may become smudged with dirt and
prevent the instrument from correctly reading the barcode. Therefore, wipe clean any adhering sample, etc.
 As for the normal rack (no label), start rack (START), anemia rack (ANEMIA) and calibration rack (CAL), do
not mix sample tubes of 13 mm and 15 mm diameters in a rack.
