SIP User's Manual 124 Document #: LTRT-83310
Mediant 600 & Mediant 1000
To configure the internal DNS table:
1. Open the Internal DNS Table page (Configuration tab > VoIP menu > Network
submenu > DNS submenu > Internal DNS Table).

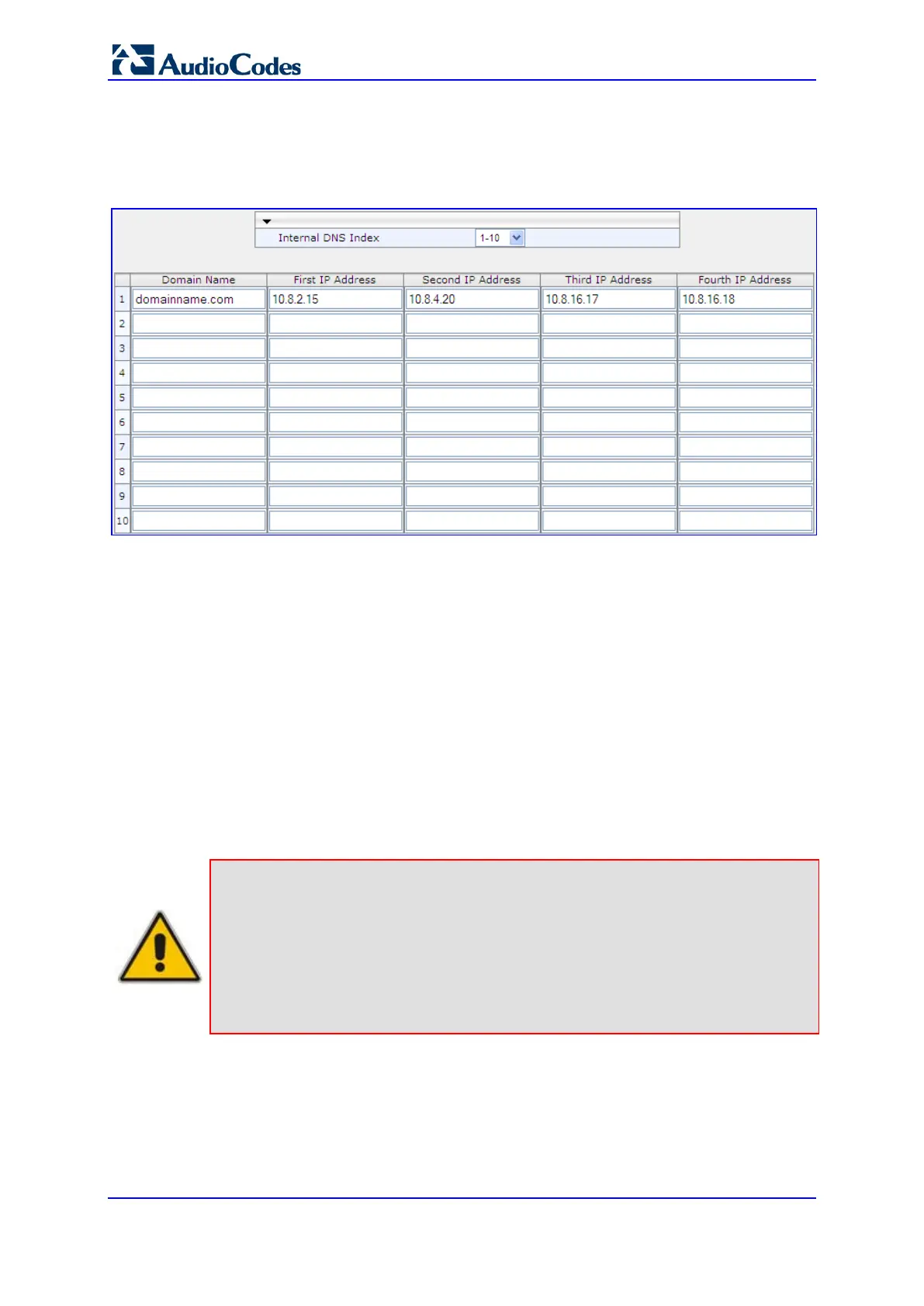

Figure 10-6: Internal DNS Table Page
2. In the 'Domain Name' field, enter the host name to be translated. You can enter a
string of up to 31 characters.
3. In the 'First IP Address' field, enter the first IP address (in dotted-decimal format
notation) to which the host name is translated.
4. Optionally, in the 'Second IP Address', 'Third IP Address', and 'Second IP Address'
fields, enter the next IP addresses to which the host name is translated.
5. Click Submit to apply your changes.
6. To save the changes to flash memory, see 'Saving Configuration' on page 482.
10.6.2 Configuring the Internal SRV Table
The Internal SRV Table page resolves host names to DNS A-Records. Three different A-
Records can be assigned to each host name. Each A-Record contains the host name,
priority, weight, and port.
Notes:
• If the Internal SRV table is configured, the device initially attempts to
resolve a domain name using this table. If the domain name isn't found,
the device performs an Service Record (SRV) resolution using an
external DNS server (defined in the Multiple Interface table - see
'Configuring IP Interface Settings' on page 102).
• You can also configure the Internal SRV table using the ini file table
parameter SRV2IP (see 'DNS Parameters' on page 551).
