Version 6.4 25 March 2012
SIP User's Manual 2. Assigning the VoIP LAN IP Address
2.2 Using the Web Interface
The procedure below describes how to assign a LAN IP address, using the Web interface.
To assign an IP address using the Web interface:
1. Disconnect any network cables from the device.
2. Connect one of the LAN ports of the device directly to the network interface of your
computer, using a straight-through Ethernet cable.

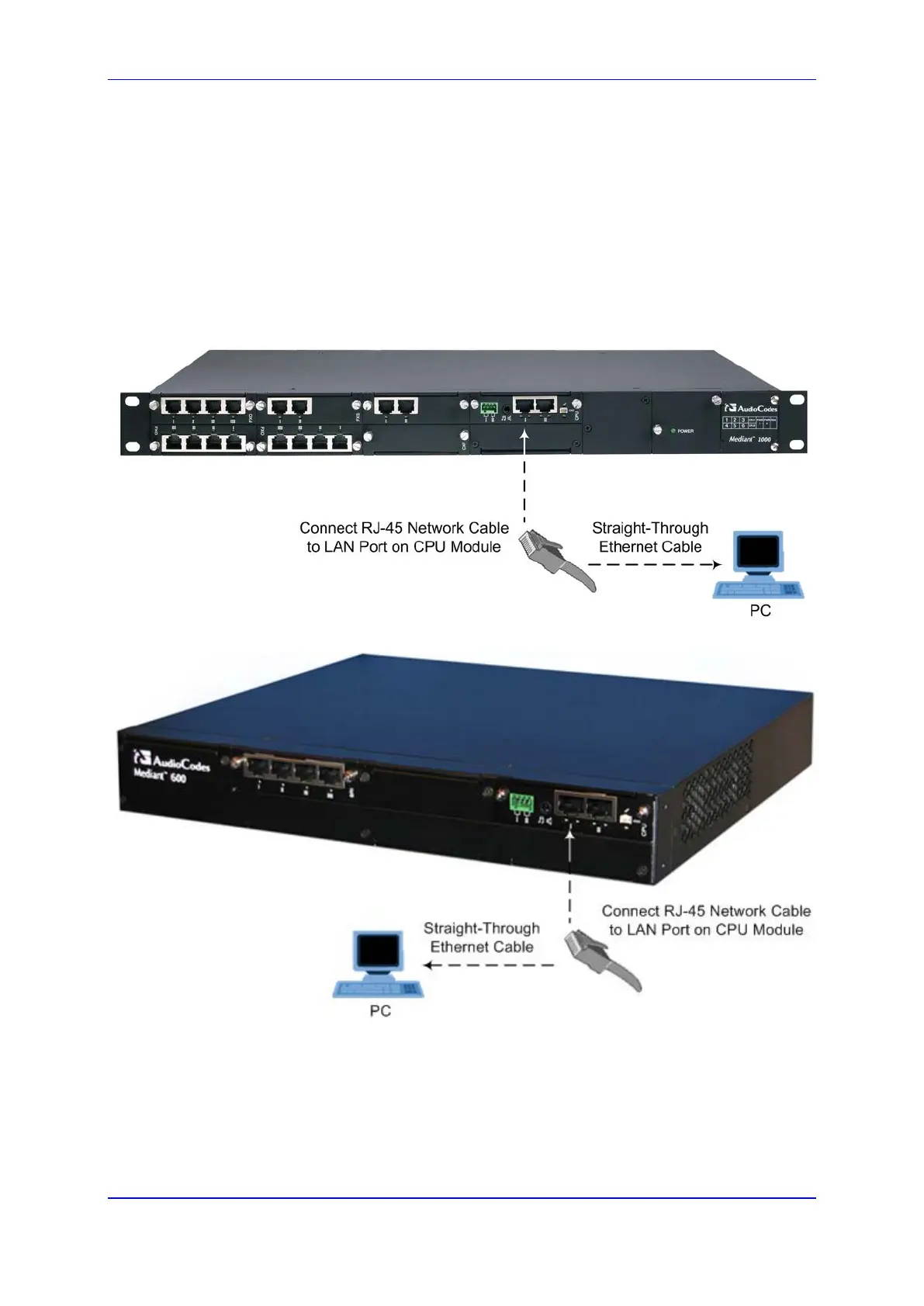

Figure 2-3: Connecting to LAN for Initial Connectivity – Mediant 1000
Figure 2-4: Connecting to LAN for Initial Connectivity – Mediant 600
3. Change the IP address and subnet mask of your computer to correspond with the
default IP address and subnet mask of the device.
