AudioCodes Mediant 600 - Trunk Group; Configuring Trunk Group Table

Version 6.4 251 March 2012
SIP User's Manual 18. GW and IP to IP
18.2 Trunk Group
This section describes the configuration of the device's channels, which entails assigning
them numbers and Trunk Group IDs.
18.2.1 Configuring Trunk Group Table
The Trunk Group Table page allows you to define up to 120 Trunk Groups. A Trunk Group
is a logical group of physical trunks and channels, and is assigned an ID. The Trunk Group
can include multiple trunks and ranges of channels.
To enable and activate the channels of the device, Trunk Groups need to be defined and
with telephone numbers. Channels that are not defined in this table are disabled. The
Trunk Groups are later used for routing IP-to-Tel and Tel-to-IP calls.
Note: You can also configure Trunk Groups using the ini
file table parameter
TrunkGroup_x to (see 'Number Manipulation Parameters' on page 750).

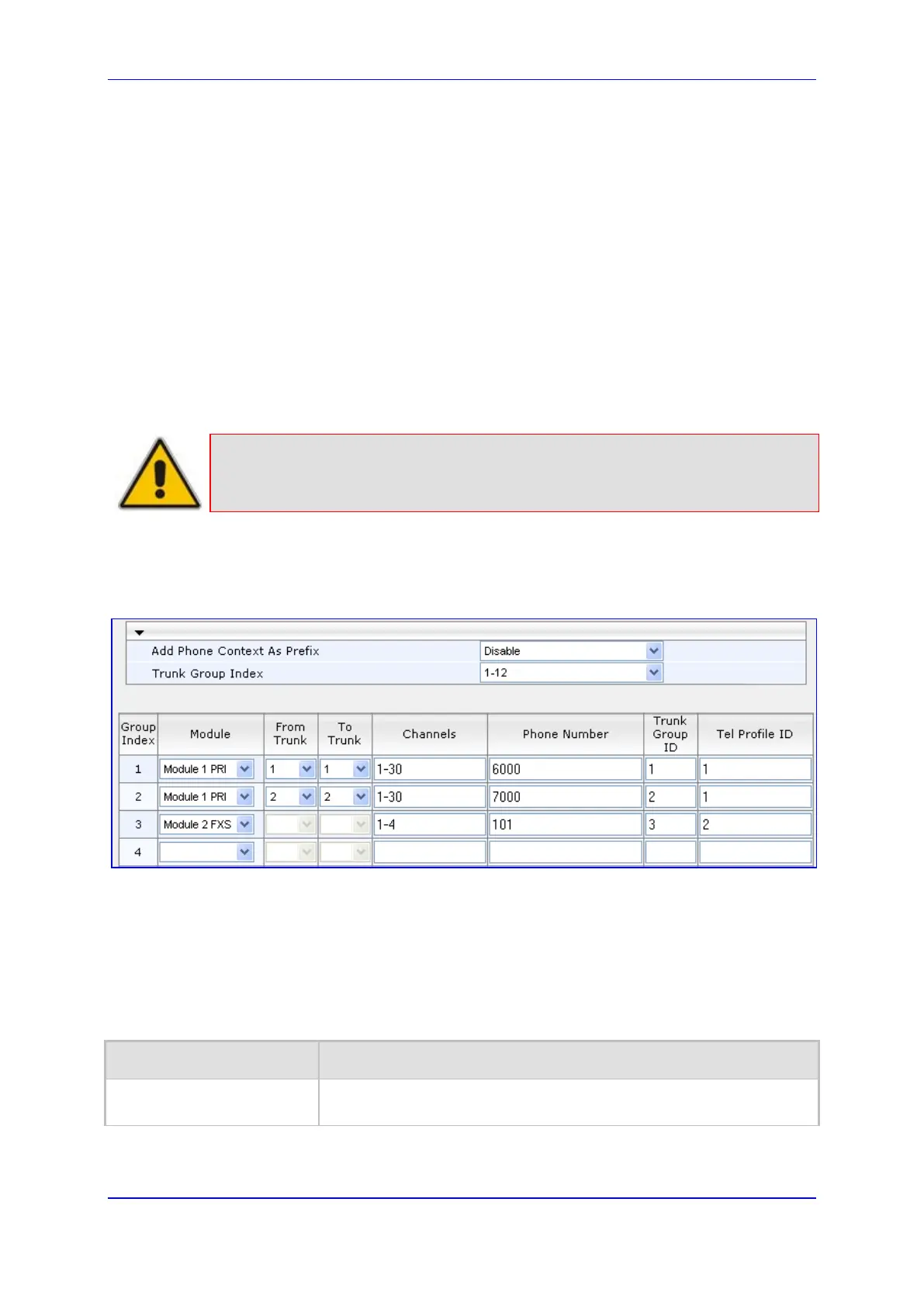

 To configure the Trunk Group Table:
1. Open the Trunk Group Table page (Configuration tab > VoIP menu > GW and IP to
IP submenu > Trunk Group > Trunk Group).
2. Configure the Trunk Group according to the table below.
3. Click Submit to apply your changes.
4. To save the changes to the flash memory, see 'Saving Configuration' on page 482.
5. To register the Trunk Groups, click the Register button. To unregister the Trunk
Groups, click Unregister. The registration method for each Trunk Group is according
to the setting of the 'Registration Mode' parameter in the Trunk Group Settings page.
Table 18-6: Trunk Group Table Parameters
Parameter Description
Module
[TrunkGroup_Module]
Defines the module (i.e., FXS, FXO, PRI, or BRI) for
which you want to
define the Trunk Group.
