a. Open the Advanced Parameters page (Configuration tab > VoIP menu > SIP
Definitions submenu > Advanced Parameters).

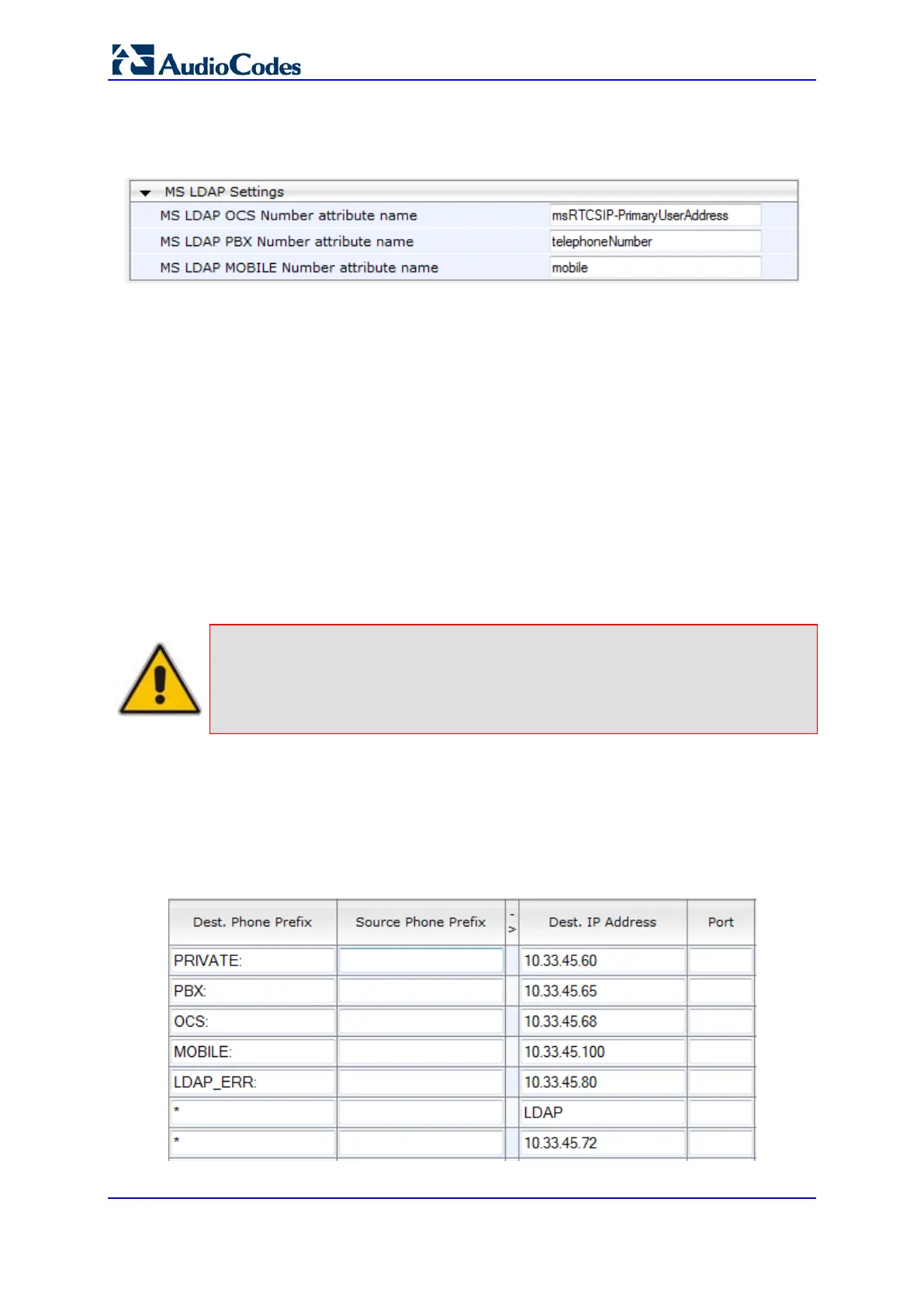

Figure 11: LDAP Parameters for Microsoft Lync Server 2010
b. Configure the LDAP attribute names as desired.
3. Configure AD-based Tel-to-IP routing rules:
a. Open the Outbound IP Routing Table page (Configuration tab > VoIP menu >
GW and IP to IP submenu > Routing > Tel to IP Routing). For more
information, see ''Configuring Outbound IP Routing Table'' on page 271.
b. Configure query-result routing rules for each IP domain (private, PBX / IP PBX,
Lync / OCS clients, and mobile), using the "LDAP" keywords for the prefix
destination number (case-sensitive):
♦ PRIVATE: Private number
♦ OCS: Lync / OCS client number
♦ PBX: PBX / IP PBX number
♦ MOBILE: Mobile number
♦ LDAP_ERR: LDAP query failure
c. Configure a routing rule for routing the initial Tel call to the LDAP server, using
the value "LDAP" for denoting the IP address of the LDAP server.
Note: The routing rule for sending the initial incoming Tel call to the LDAP server
must be configured in a row located below the query result rules. This is done
to prevent the looping of calls to the LDAP server. The value used for
denoting the matching prefix destination number is typically "*" (i.e., all dialed
destination numbers).
d. For alternative routing, enable the alternative routing mechanism and configure
corresponding SIP reasons for alternative routing. For this feature, alternative
routing always starts again from the top of the table (first routing rule entry) and
not from the next row.
The figure below shows an example for configuring AD-based routing rules in the
Outbound IP Routing Table:
Figure 12: Active Directory-based Routing Rules in Outbound IP Routing Table
