Version 6.4 27 March 2012
SIP User's Manual 2. Assigning the VoIP LAN IP Address
4. Click the Add New Client icon.

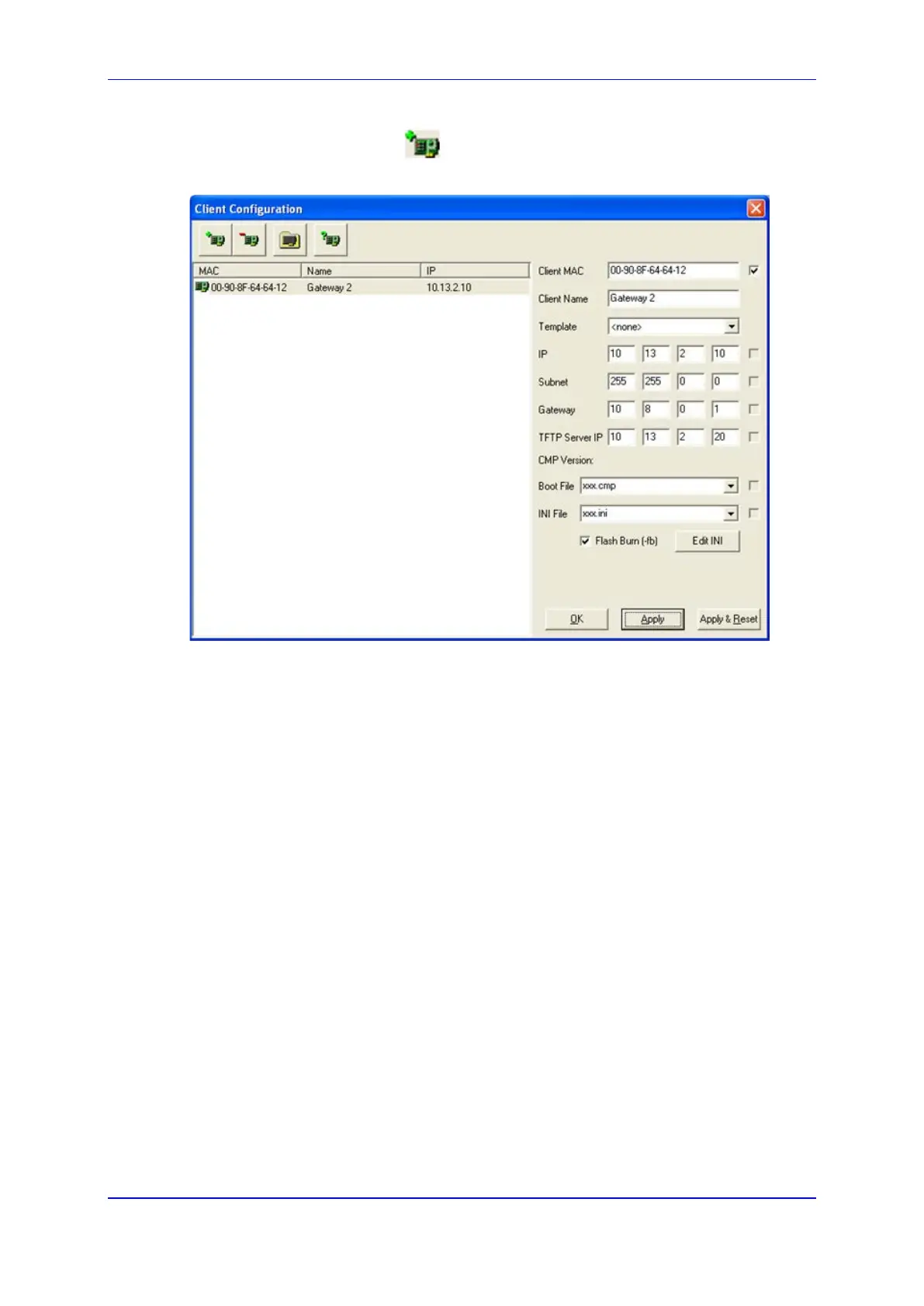

Figure 2-6: BootP Client Configuration Screen
5. In the ‘Client MAC’ field, enter the device's MAC address. The MAC address is printed
on the label located on the underside of the device. Ensure that the check box to the
right of the field is selected in order to enable the client.
6. In the ‘IP’ field, enter the IP address (in dotted-decimal notation) that you want to
assign the device.
7. In the ‘Subnet’ field, enter the subnet mask (in dotted-decimal notation) that you want
to assign the device.
8. In the ‘Gateway’ field, enter the IP address of the Default Gateway (if required).
9. Click Apply to save the new client.
10. Click OK; the ‘Client Configuration’ screen closes.
11. Physically reset the device by powering down and then powering up the device. This
enables the device to receive its new networking parameters through the BootP
process.
