AUTOHELM ST80 User Manual

ST80 Masterview Operation and Setup
113

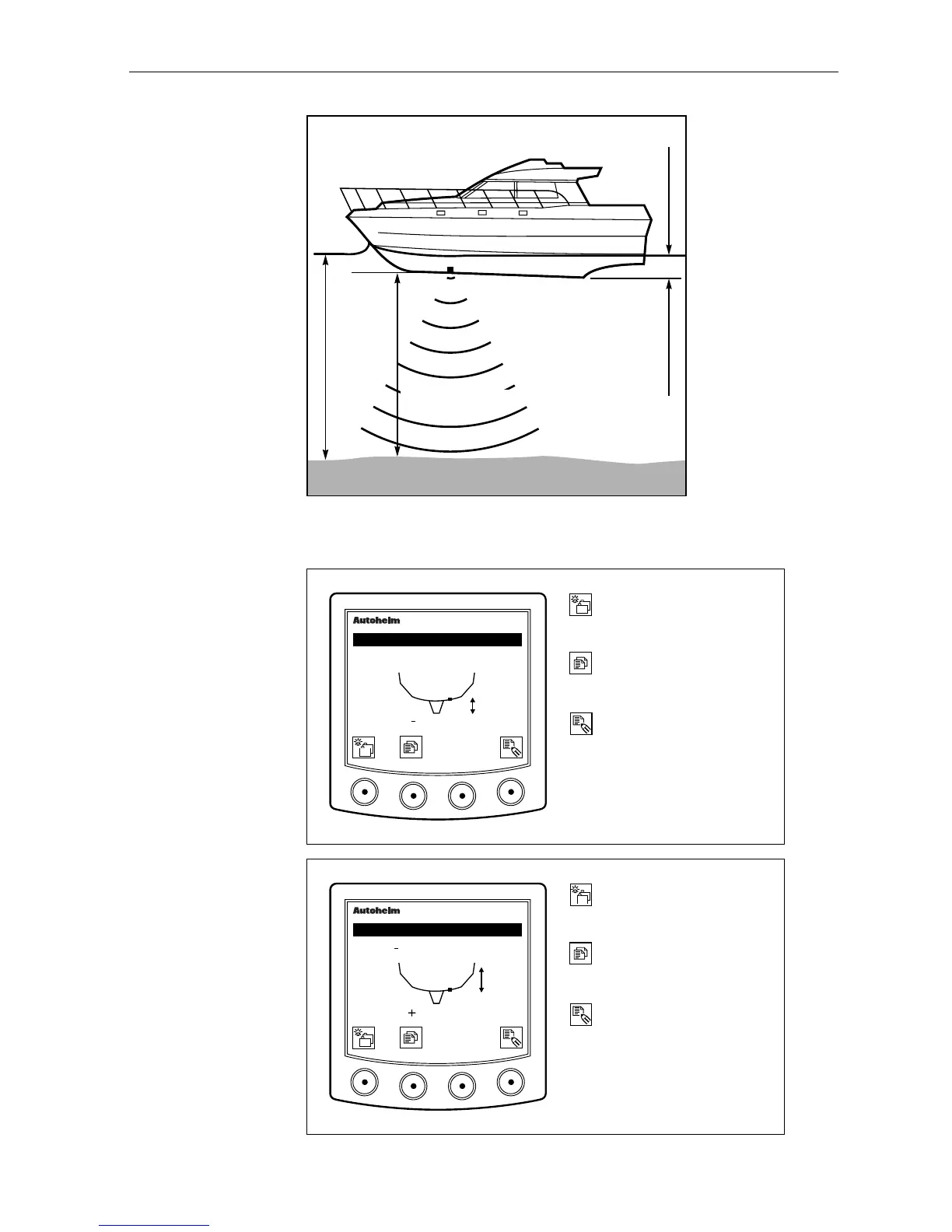

Waterline
Waterline
Offset
Actual
Water
Depth
Depth Below Transducer
D2212-1
Entry to offset adjustment is made using the right-hand key (as
shown in the following diagram).
D2302-1
Advance to next chapter or
press for 1 second to enter
illumination adjustment.
Next page or press for 1
second to return to previous
page.
Display offset adjustment
icons.
masterview
SET-UP
KEEL OFFSET
- 3.0 FT
D2303-1
Advance to next chapter or
press for 1 second to adjust
illumination.
Next page or press for 1
second to return to previous
page.
Display offset adjustment
key icons.
masterview
SET-UP
W/ LINE OFFSET
+ 4.5 FT
