ST80 Masterview Operation and Setup 59
Course Deviation Indicator (CDI)
• The CDI displays a graphic representation of your boat relative to
the current destination waypoint.
• Bearing to waypoint and distance to waypoint information is
displayed permanently.

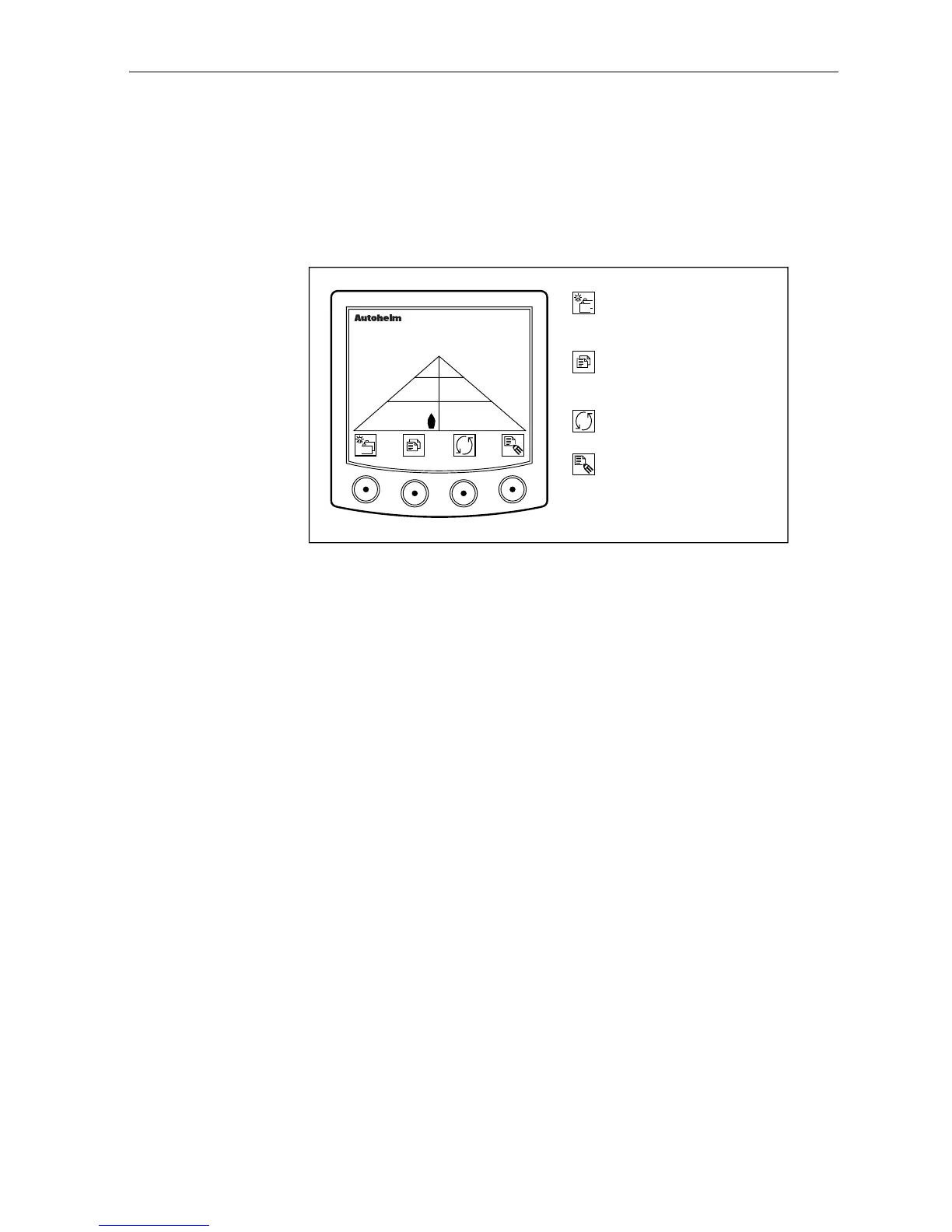

D2265-1
Go to the next chapter or
press for 1 second to enter
illumination adjustment.
Next page or
press for 1 second to return
to the previous page.
masterview
XTE 1.05 NM
Return to the cross track
error display.
Cycle top line options.
BTW
102oM
DTW
100.2
• The position of the boat symbol is proportional to cross track error.
Additional information (cross track error (XTE) being the default) is
displayed at the top of the screen. This can be changed to any one of
the following:
• Speed (SPD)
• Velocity made good to waypoint (VMG)
• Speed over ground (SOG)
• Cross track error (XTE)
• Distance to waypoint (DTW)
• Estimated time to arrival (ETA)
• Heading (HDG)
• Course over ground (COG)
• Waypoint number
• Course to steer (CTS)
