AUTOHELM ST80 User Manual

ST80 Masterview Operation and Setup 37
masterview
D2256-1

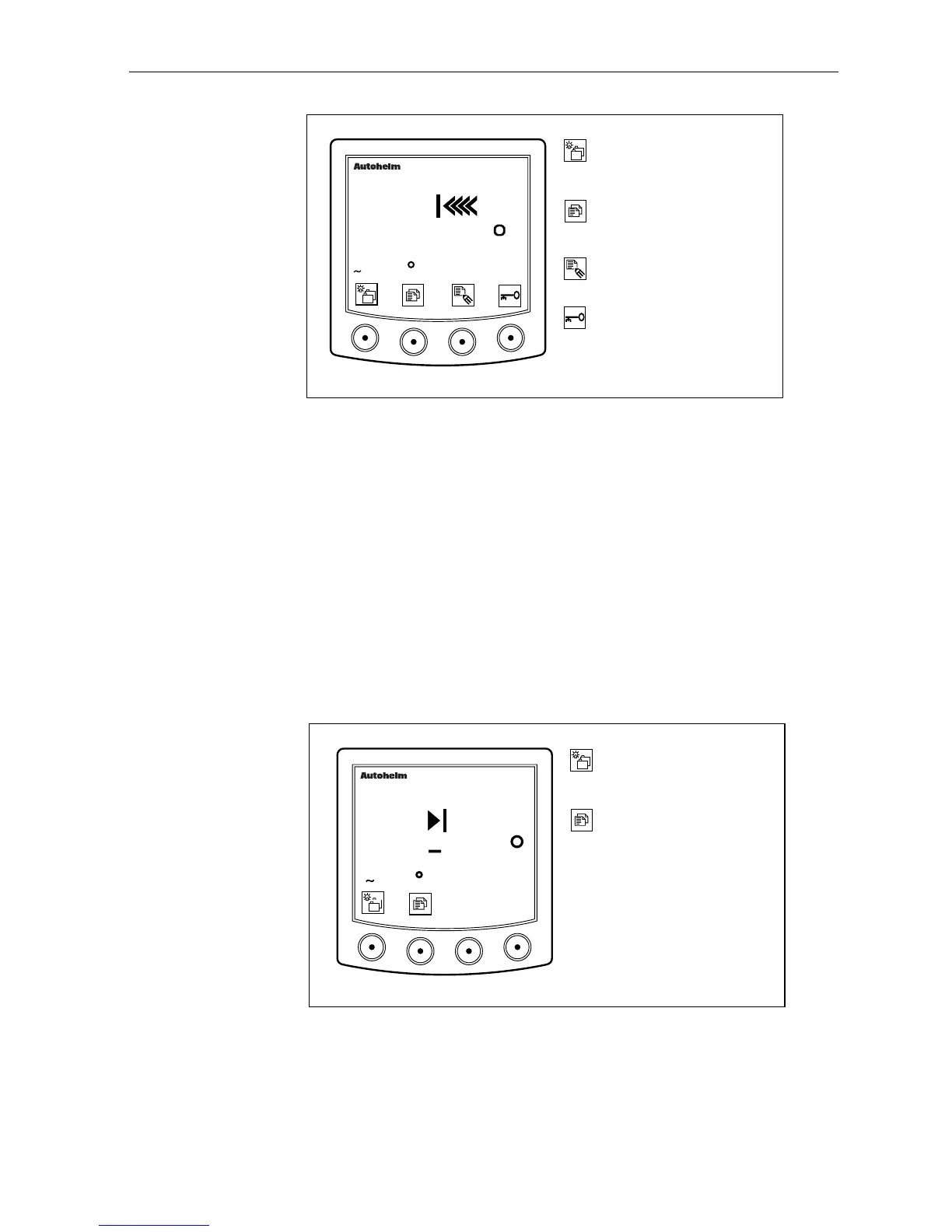

WIND p PORT
LOCK
Go to the next chapter or
press for 1 second to enter
illumination adjustment.
Press to advance to the next
page or press for 1 second to
return to the previous page.
Display locked apparent wind
angle adjustment icons.
+012
Return to the unlocked mode.
132
HEAD
There are two operating modes: locked and fixed. These modes are
similar to those described in Heading to Steer.
• A head/lift (freeing) indicator is displayed when applicable.
Adjusting a Locked Apparent Wind Steer
A “locked apparent wind steer” can be adjusted in 1° increments by
entering “locked apparent wind control”.
Autopilot Locked
This page displays the difference between the autopilot “locked
apparent” and “current apparent” wind angles. A steering indicator
shows the direction to steer to correct any error.
masterview
D2625-1
WIND PORT
AUTO
Go to the next chapter.
Press for 1 second to enter
illumination adjustment.
Press to go to the next
page.
Press for 1 second to return
to the previous page.
118
LIFT
001
There are two operating modes: current and fixed.
• Current: the current “live” apparent wind angle (identified by a ~)
is displayed at the bottom left of the display and the locked value as
a positive (starboard) and a negative (port) reading up to 30°. The
arrows indicate the direction to steer to correct any error.
