122 ST80 Masterview Operation and Setup
2.8 Navigate
The navigate chapter is used to adjust the response for the cross track
error (XTE) page and to set the radius for the waypoint arrival alarm.

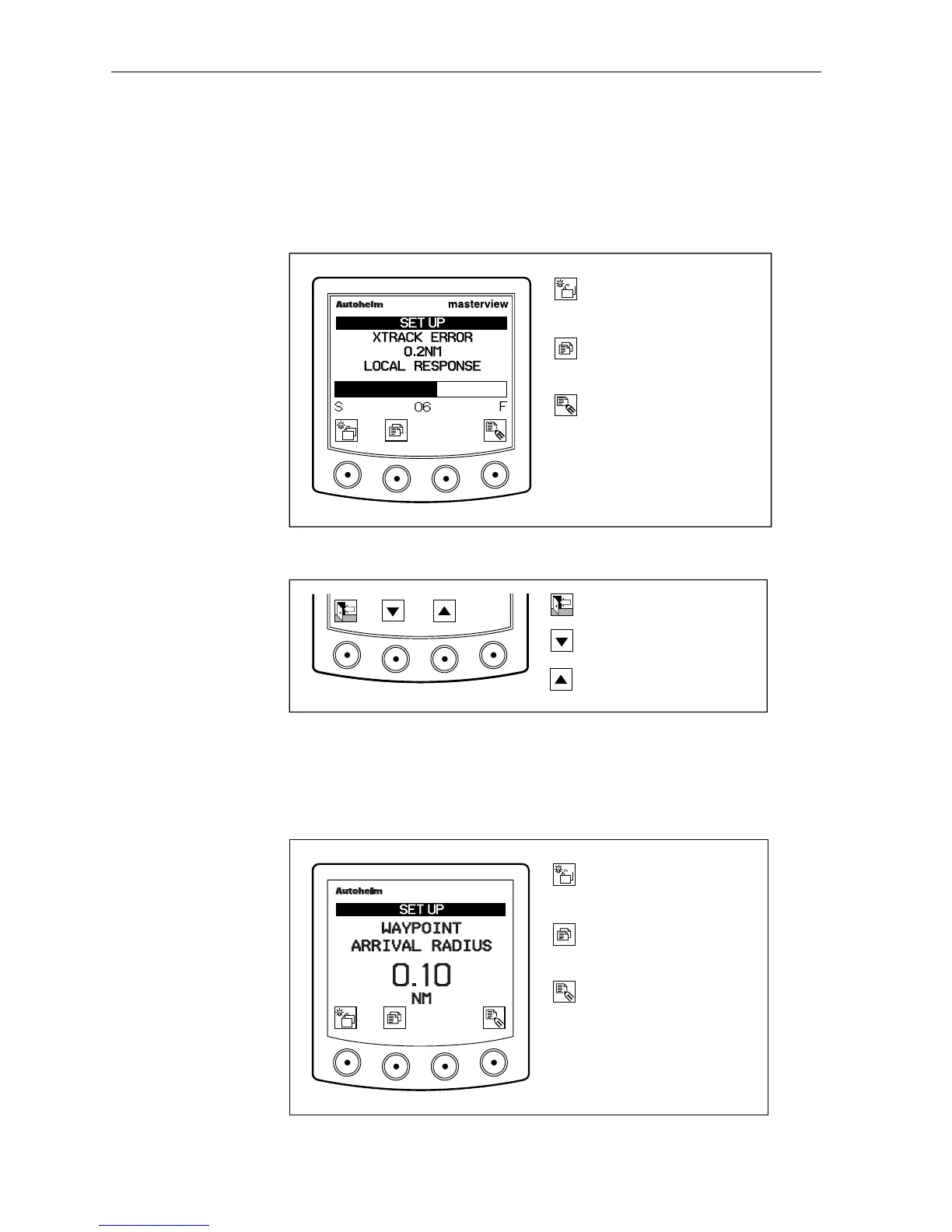

XTE Response
D2646-1
Advance to next chapter or
press for 1 second to enter
illumination adjustment.
Display response adjustment
keys.
Next page or press for 1
second to return to previous.
Adjusting XTE Response
D2647-1
Exit response adjustment.
Decrease response.
Increase response.
• The response range is from 0 (most damping) to 15 (least damping).
Waypoint Arrival Radius
This page is used to set a radius for the waypoint arrival alarm.
D4053-1
Advance to next chapter.
Press for 1 second to enter
illumination adjustment.
Advance to next page.
Press for 1 second to go to
previous page.
Enter edit radius mode.
