ST80 Masterview Operation and Setup 89
Satellite Plot Page
This page displays the position of the satellites relative to the earth
and your boat.
• The satellite plot is always generated with true north uppermost.

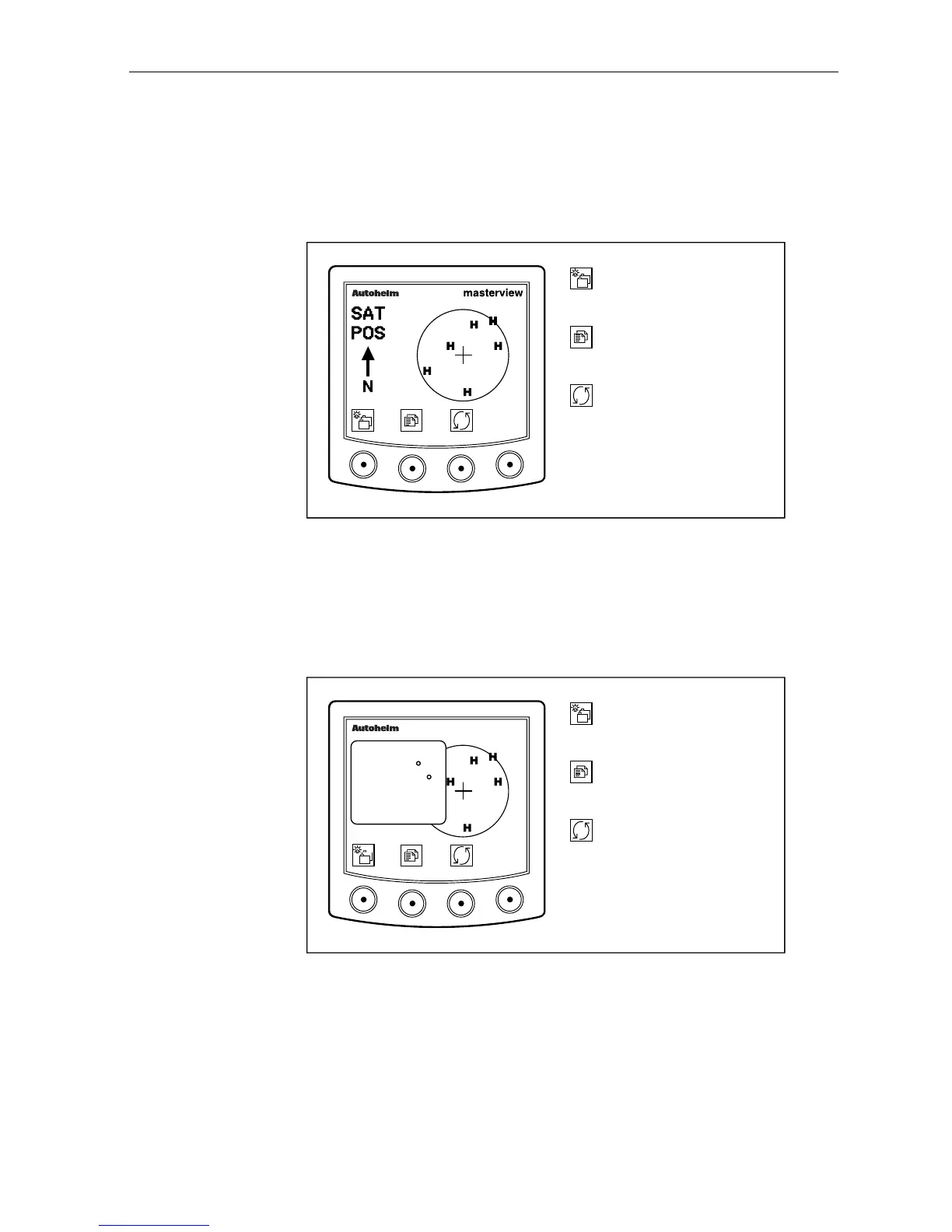

D2294-1
Go to the next chapter or
press for 1 second to enter
illumination adjustment.
Next page or
press for 1 second to return
to the previous page.
Display split screen.
Split Screen Mode
The split screen displays the position of the satellites and data
(satellite number, elevation, bearing, signal strength and status/
search/track/demodulation) related to the currently selected
satellite.
D2295-1
Go to the next chapter or
press for 1 second to enter
illumination adjustment.
Next page or
press for 1 second to return
to the previous page.
masterview
Display details of the next
satellite in use.
SAT 3
ELV 74
BRG 340
SIG 40
STA TRK
Note: The display reverts to the full screen plot page after 8 seconds of
keypad inactivity.
