BEAMEX MC4 - Voltage Measurement

Measuring
52 MC4 User Guide
Voltage Measurement
MC4 has two voltage measurement ranges:
Measurement range: 1 to +60 VDC
Function: Voltage Measurement

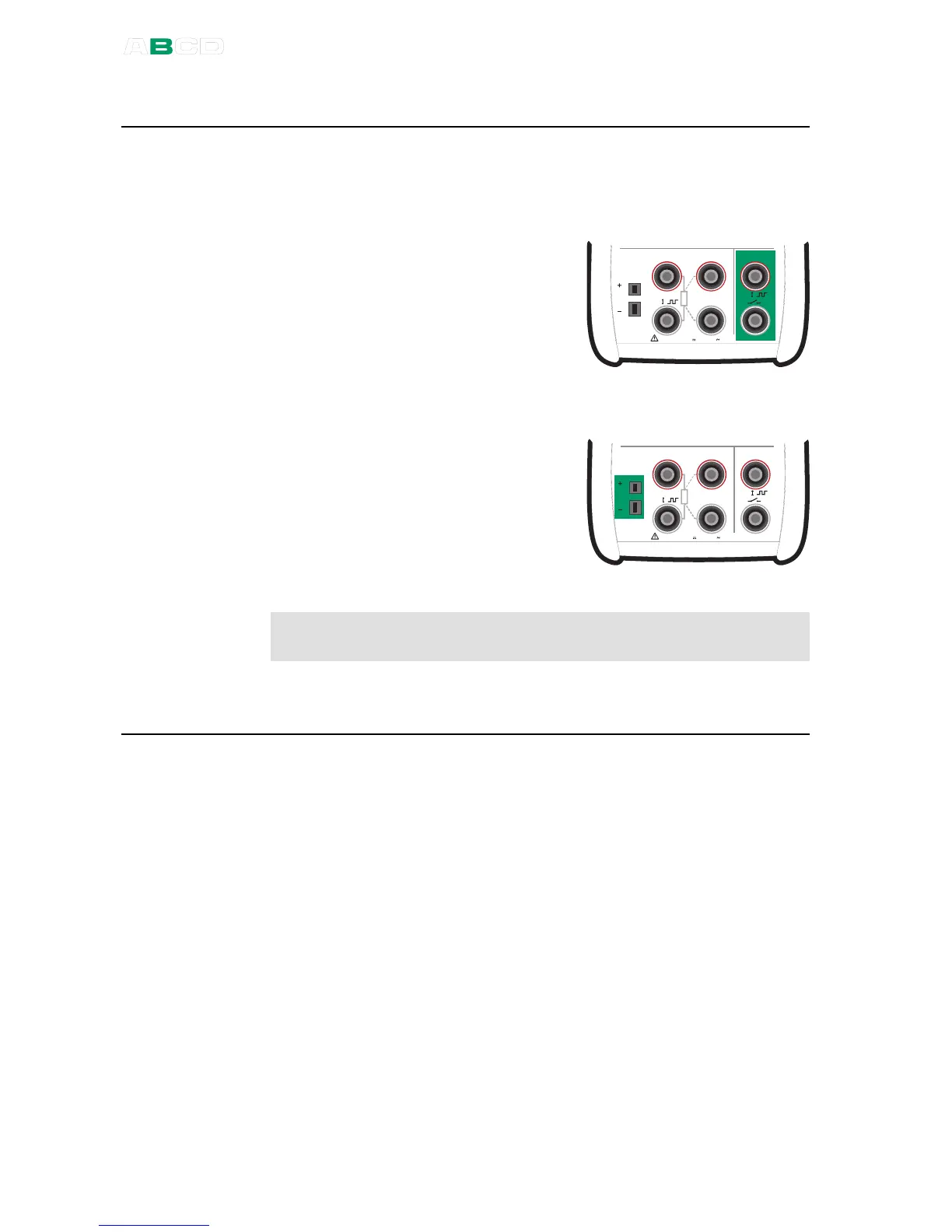

The active terminals for this
measurement range are highlighted in
the adjacent picture.
M e a s u r e
M a x 6 0 V , 3 0 V , 1 0 0 m A
T / C
m V
s e n s e
R , R T D R m e a s
V , I ,
V , I ,
T e m p e r a t u r e / G e n e r a t e
Measurement range: -25 to 150 mVDC
Function: Low-Voltage
Measurement
The active terminals for this
measurement range are highlighted in
the adjacent picture.
M e a s u r e
M a x 6 0 V , 3 0 V , 1 0 0 m A
T / C
m V
s e n s e
R , R T D R m e a s
V , I ,
V , I ,
T e m p e r a t u r e / G e n e r a t e
Warning!
Do not apply hazardous voltages to MC4's terminals.
Next
Voltage Generation on page 65.
Temperature Measurement (Thermocouple) on page 51.
Tools Menu on page 67.
Alarms on page 69.
Calibration, see Part D.
