Stepping
MC4 User Guide 73
Stepping
Stepping utility is one of three tools allowing you to create
generation/simulation signals that vary with time. This one could be
called "automatic stepping" since one of the other tools is a manual
stepping utility.
Other similar tools:
Ramping on page 76
Manual Stepping on page 78.
To open the stepping configuration window, enter the following menu
commands: F1/ Setup  or F2/ Setup  (depending on which
window you want to configure the stepping to), F2/ Tools and Step
from the opened menu.

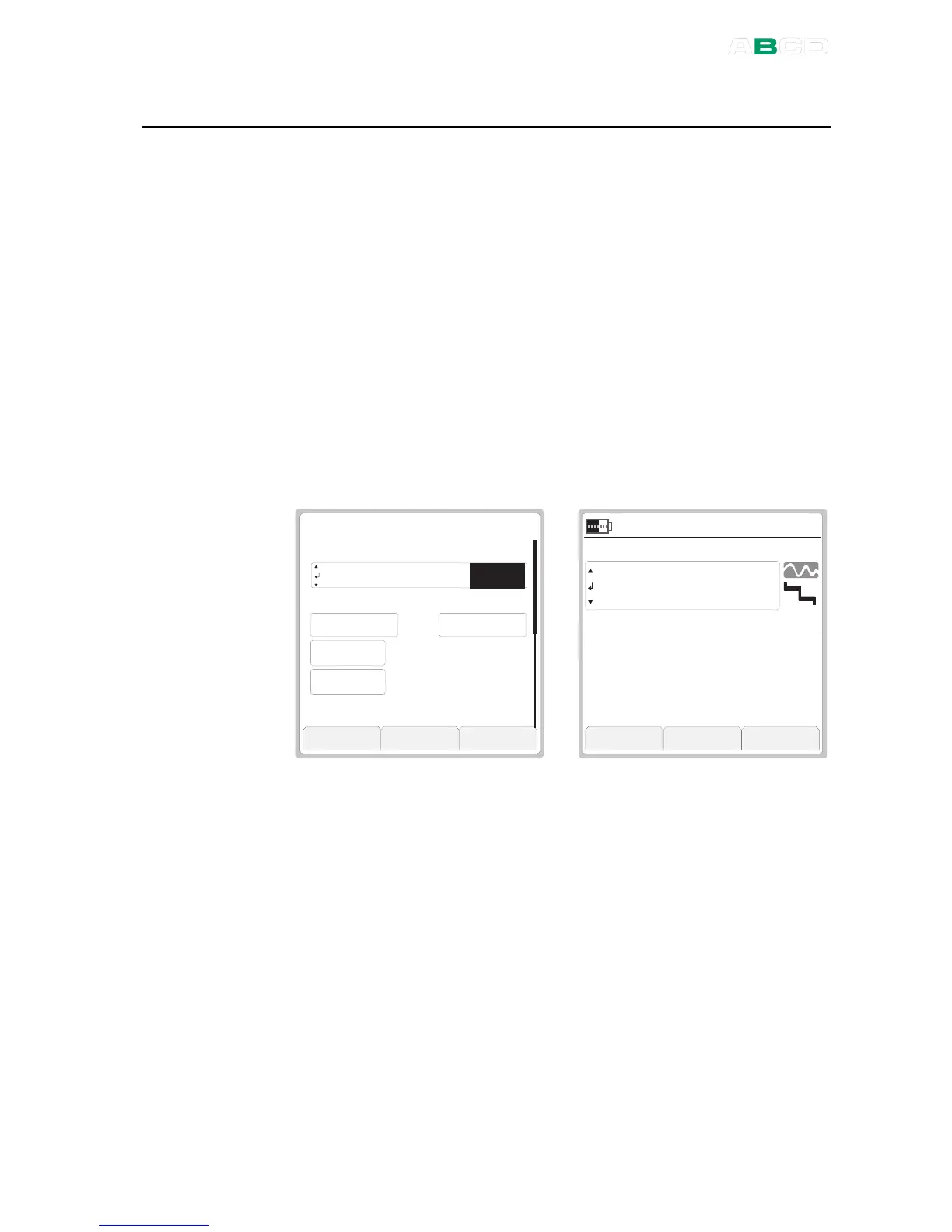

The leftmost picture below shows the configuration window and the
rightmost picture the stepping utility in use.
5 . 9 6
O u t p u t
S T E P
S t e p T i m e , s
C l o s e C a p t u r e S t a r t

V
I N T
R a n g e ( 0 % . . . 1 0 0 % )
0 . 0 0 0 0 1 2 . 0 0 0 0
R e p e a t F o r m a t
. . .
5
0 R e p e a t s ( 0 =
¥
)
3 . 0 0 0 0
S e t u p

S e t u p

M e n u

V
2 9 . 0 8 . 2 0 0 5 1 4 : 5 8 : 2 2
 N o n e
6 . 0 0 0 0
Start stepping by selecting the F3/ Start Function Key in the
configuration window. To stop a stepping that is in progress, open
the stepping configuration window and press F1/ Stop Step Function
Key.
When stepping is ready, or stopped, you may restart it as follows:
F1/ Setup  or F2/ Setup  (depending on which window you want
to configure the stepping to), F1/ Start Step . This possibility is
available until a new Function is selected for the window where
stepping was used or MC4 is shut down.
