BEAMEX MC4 - Current Generation

Generating/Simulating
56 MC4 User Guide
Current Generation
MC4 is able to generate current both in source and sink mode. In
source mode MC4 provides the supply power to the loop. In sink
mode an external power supply is used and MC4 controls the
current flow.
Function: Current Source or Sink

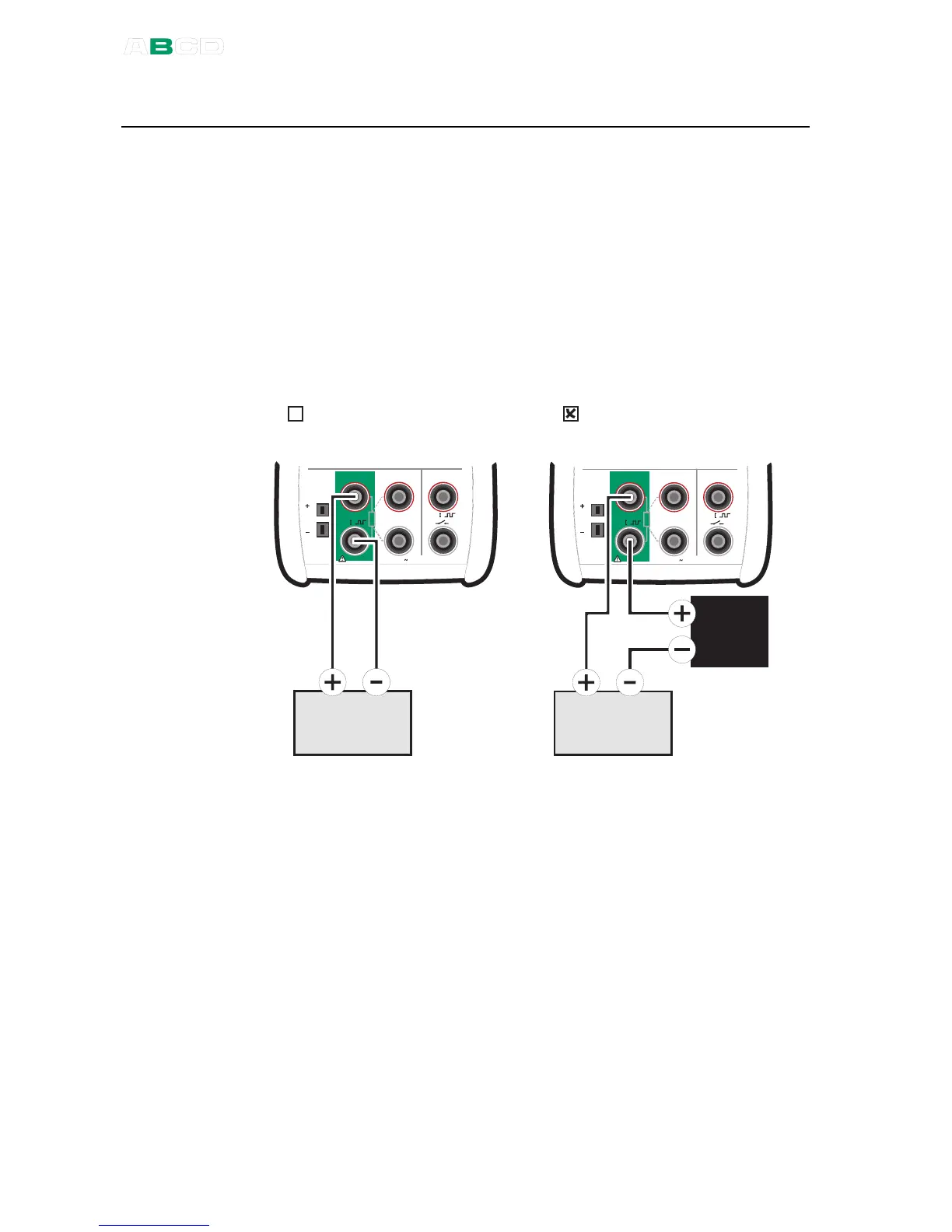

The connection of the current loop varies depending on the setting of
the External Supply, Sink Current (reverse polarity) check box.
See the following pictures.
Source mode:
E x t e r n a l S u p p l y , S i n k
C u r r e n t ( r e v e r s e p o l a r i t y )
Sink mode:
E x t e r n a l S u p p l y , S i n k
C u r r e n t ( r e v e r s e p o l a r i t y )
M e a s u r e
M a x 6 0 V , 3 0 V , 1 0 0 m A
T / C
m V
s e n s e
R , R T D
R m e a s
V , I ,
V , I ,
T e m p e r a t u r e / G e n e r a t e
I n s t r u m e n t t o
b e c a l i b r a t e d
M e a s u r e
M a x 6 0 V , 3 0 V , 1 0 0 m A
T / C
m V
s e n s e
R , R T D R m e a s
V , I ,
V , I ,
T e m p e r a t u r e / G e n e r a t e
I n s t r u m e n t t o
b e c a l i b r a t e d
P o w e r
S u p p l y
Note.
If the loop resistance of the external circuit is too high or infinite, the
message "Overload" is displayed until the load is reasonable.
