Brunswick Sync - Page 125

Sync Scorer Components 93
(2)
RIGHT LANE
KEYPAD
INTERFACE PCB
(1)
LEFT LANE
KEYPAD
INTERFACE PCB
(3)
SPEAKER
(3)
SPEAKER
(4)
MICROPHONE
(4)
MICROPHONE
(5)
KEYPAD
(5)
KEYPAD
(7)
AUDIO CONTROL UNIT
(8)
INTERCOM AUDIO
(9)
RS-232
COMM/POWER
(8)
INTERCOM AUDIO
(11)
INTERCOM AUDIO
TO NEXT LANE
PAIR
57-500279-000
57-500399-000
BUMPER
CAMERA KEYPAD
GS PINSETTER
2X 2.0 AMP, 250V
SLOW BLOW FUSES
ETHERNET
4321
LANEAUDIO OUT
CMS SERIAL
ROCKWORX
POWER
IN
AUDIO
IN
HANDSET
(6)
PERIPHERAL
CONTROLLER

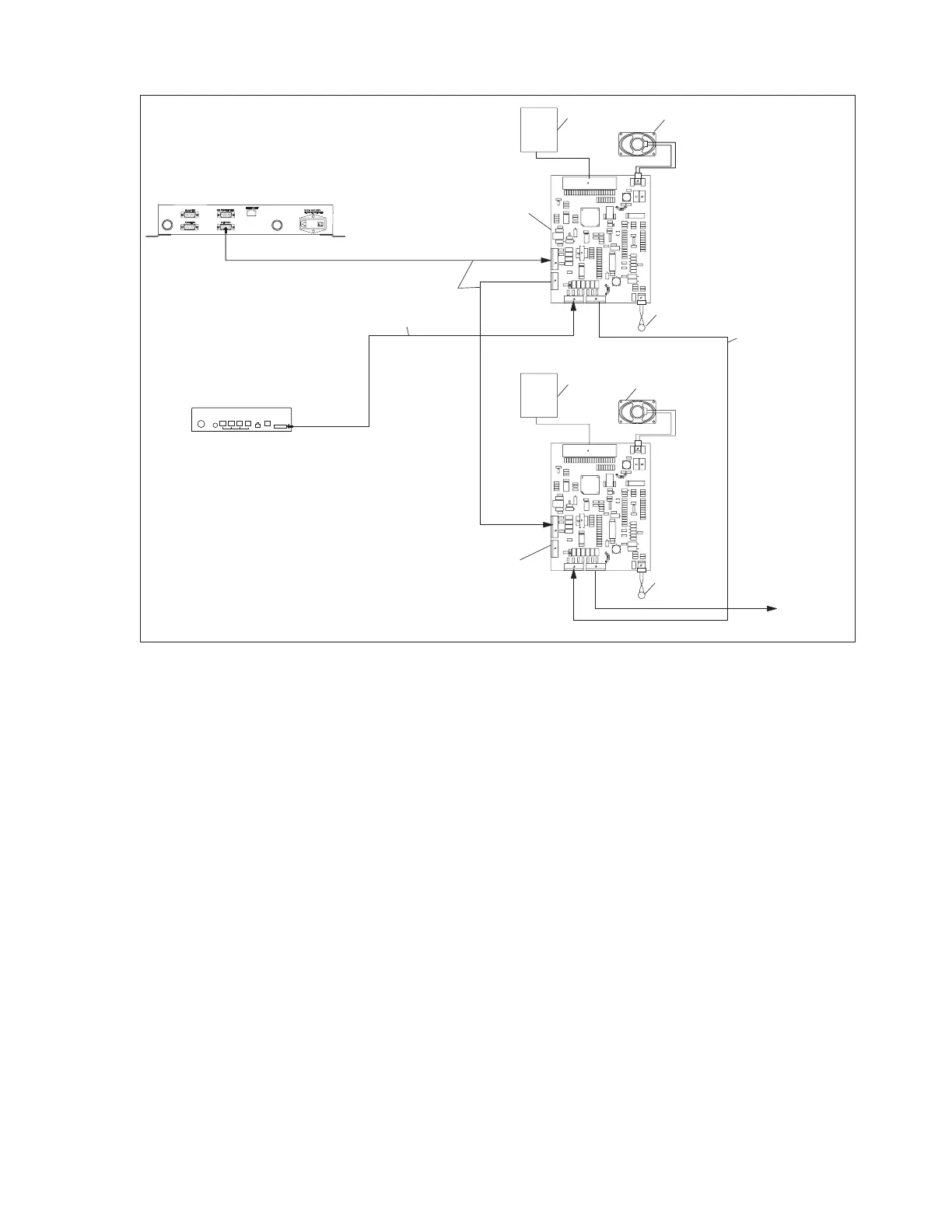

Vector Keypad Console Cabling
(1) LEFT LANE KEYPAD INTERFACE (2) RIGHT LANE KEYPAD INTERFACE (3) SPEAKER
PCB PCB
(4) MICROPHONE (5) KEYPAD (6) PERIPHERAL CONTROLLER
(7) AUDIO CONTROL UNIT (8) INTERCOM AUDIO (9) RS-232 COMM / POWER
(10) 27-609941-000 (11) INTERCOM AUDIO TO NEXT LANE PAIR
