Sync Scorer Components 35
Sync Keyboard Controller
The Sync Keyboard Controller contains the circuitry to interface the keyboard and intercom and exciter
audios in the Touchpad. The connections on the board allow for exibility in routing cables to the
Touchpad. The actual connections used on the board is dependent on whether the touchpad is installed
in a dual pedestal or in mounted individually. Refer to the gure titled Sync Keyboard Controller -
Single Pedestal / Table Mount.

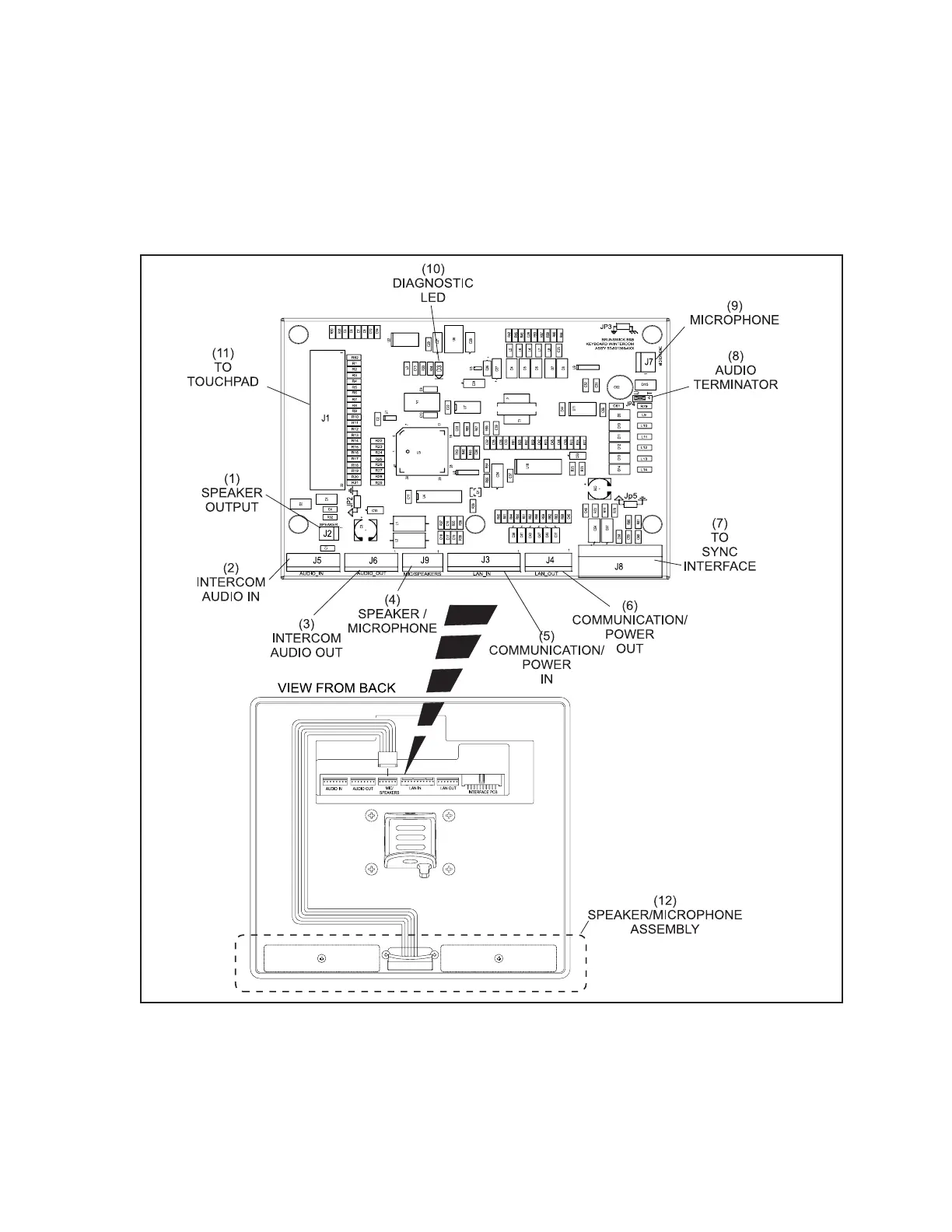

Sync Keyboard Controller - Single Pedestal / Table Mount
