30 Sync Scorer Components
Sync Touchpads
The Sync Touchpads are full function keyboards that allows the bowler to enter all information needed
to begin bowling or change/correct information once bowling has begun. The use of a keypad gives
the bowler complete control over bowling functions without the added cost of a lower display. The
Touchpads are available in oor-mounted dual or single pedestal congurations or can be mounted
individually to the table tops of certain Brunswick designed furniture.
For dual pedestal installations, a Touchpad Interface PCB, mounted inside the pedestal, along with the
Touchpad Cable Interface board, located under the lanes near the ball lift, provide a convenient and
exible way to route cabling. Because of this cable routing method, only a couple of connectors on the
Controller board are used for dual pedestals.
When the touchpad is individually mounted the connections on the Controller board are used to route
the cables lane to lane. Because of this, most of the connections are needed when the touchpad are
mounted individually using a single pedestal or table mount.
Dual Pedestal
(1)
TOUCHPAD
INTERFACE
(2)
TOUCHPAD
(3)
BACK VIEW
(4)
FRONT VIEW
123 4 5 6 7 8 9 0
Q
W
E R T Y U I O P
ASD F G H J K L
?ZX C V B N M
.
!
+
space
/
O
OK
-
X
cancel
service
123 4 5 6 7 8 9 0
Q
W
E R T Y U I O P
ASD F G H J K L
?ZX C V B N M
.
!
+
space
/
O
OK
-
X
cancel
service
J1
J3
AUDIOAUDIO
LAN IN SPEAKER
J5 J6
J2 J4
IN OUT

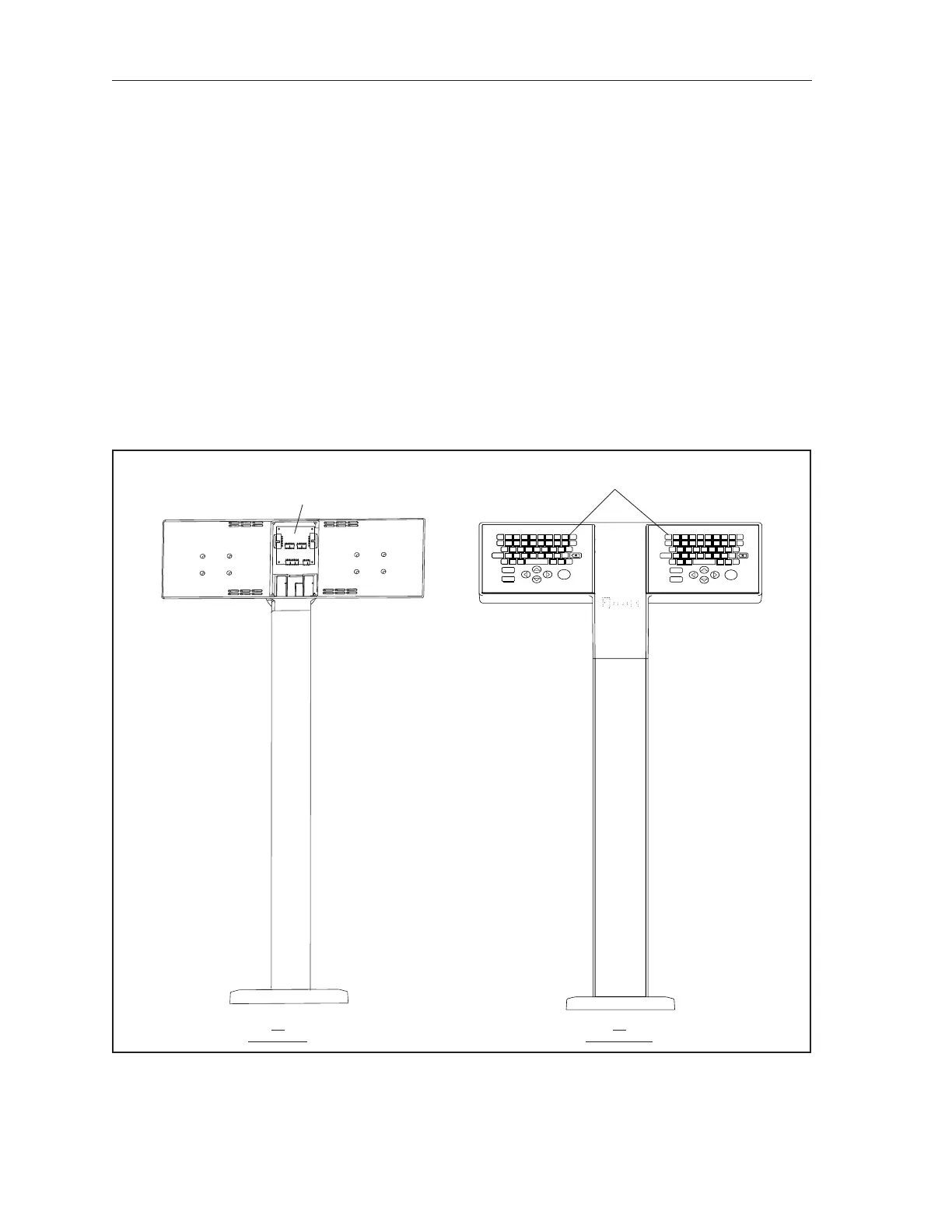

Sync Tablet - Dual Pedestal
(1) TOUCHPAD INTERFACE (2) TOUCHPAD (3) BACK VIEW
(4) FRONT VIEW
