72 Sync Scorer Components

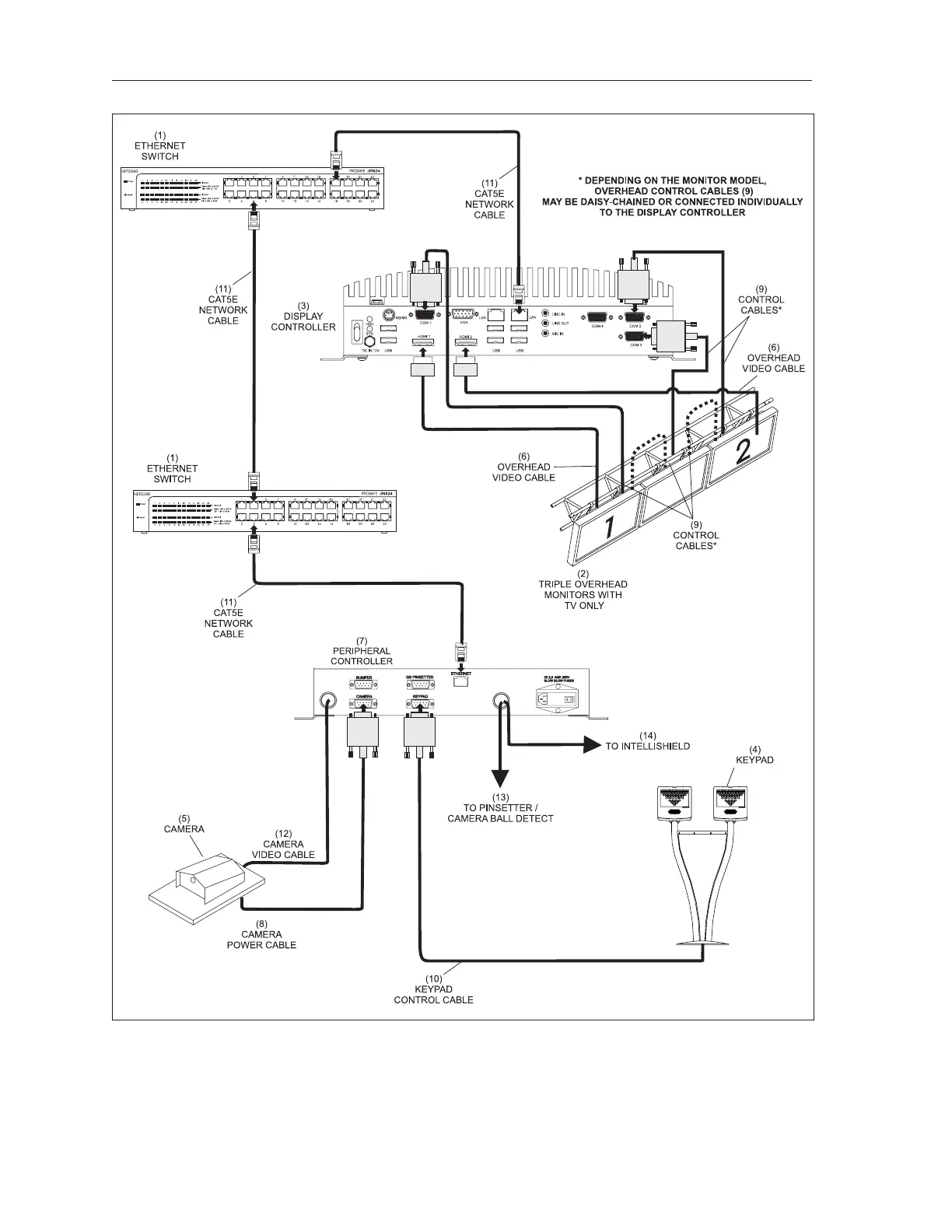

CABLING OVERVIEW
Sync Scoring Lane Pair Cabling - Vector Keypads, Non-GS Pinsetters
(1) ETHERNET SWITCH (2) TRIPLE OVERHEAD MONITORS (3) DISPLAY CONTROLLER
W/TV ONLY
(4) KEYPAD (5) CAMERA (6) OVERHEAD VIDEO CABLE
(7) PERIPHERAL CONTROLLER (8) CAMERA POWER CABLE (9) CONTROL CABLES
(10) KEYPAD CONTROL CABLE (11) CAT5E NETWORK CABLE (12) CAMERA VIDEO CABLE
(13) TO PINSETTER / CAMERA (14) TO INTELLISHIELD
BALL DETECT
