Brunswick Sync - Cycle Link Operation

10
Sync Camera Assembly
To make the New Pins Solenoid actuate on a foul, the following conditions must occur:
1. Pinsetter is on rst ball.
2. A foul signal occurs.
3. A ball detect signal occurs.
If the signals are present, the New Pins Solenoid will be energized two times during the pinsetter cycle.
After the time delay for scoring the New Pins Solenoid will energize causing the pinsetter to switch to
second ball and sweep all standing pins. It energizes again when the zero degree switch on the switch
cluster is engaged when the pinsetter completes its cycle.
For third ball, tenth frame, the New Pins Solenoid will energize when the zero degree switch on the
switch cluster is engaged at the end of the pinsetter cycle, when the bowler scores a spare or a double in
the tenth frame. This will automatically put the pinsetter in a second ball mode for the nal ball of the
game.
For No Tap situations, the New Pins Solenoid energizes after the time delay for scoring to cause the
pinsetter to switch to second ball, sweep all pins from the pin deck, and reset to a full rack rst ball for
the next bowler.
Cycle Link Operation
The New Pins Solenoid signal is received from the Peripheral Controller for 1st ball foul, third ball tenth
frame and no tap cycles. When the New Pins Solenoid is energized, it pulls the standing pins selector
clockwise, unblocking the standing pins cam follower. The standing pins cam follower goes into the
low of the cam causing the “C” shaft to turn clockwise. The rst/second ball switch lever, attached to
the “C” shaft, rotates clockwise to switch the ball light to second ball. Refer to the gure titled New
Pins Solenoid Activated - Cycle Link Raised.
(1)
CYCLE LINK
CRANK
(2)
CYCLE LINK
ASSEMBLY
(3)
STANDING PIN
CAM FOLLOWER
(4)
STANDING PIN
CONTROLLER
(5)
STANDING PIN
SELECTOR
(6)
NEW PINS
SOLENOID
(10)
0°- 90° OVER TRAVEL
SELECTOR
(8)
DETECTOR
1:1 SHAFT
(9)
C SHAFT
(7)
A SHAFT

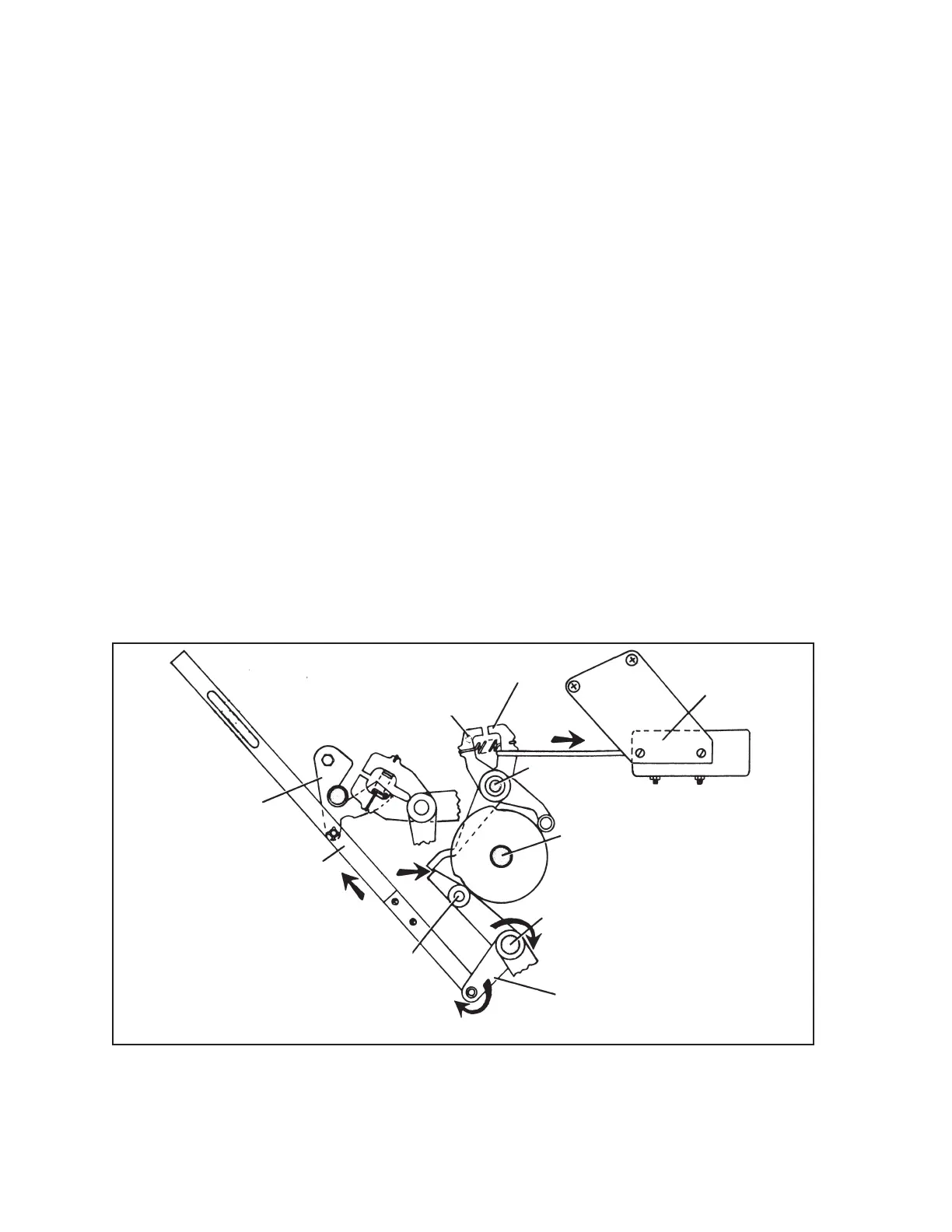

New Pins Solenoid Activated - Cycle Link Raised
(1) CYCLE LINK CRANK (2) CYCLE LINK ASSEMBLY (3) STANDING PIN CAM FOLLOWER
(4) STANDING PIN CONTROLLER (5) STANDING PIN SELECTOR (6) NEW PINS SOLENOID
(7) “A” SHAFT (8) DETECTOR 1:1 SHAFT (9) “C” SHAFT
(10) 0º-90º OVERTRAVEL SELECTOR
