CONSOLE ELECTRONICS
The bowler’s console allows the bowler to enter all information needed to begin bowling, change or
correct information once bowling has begun and access special features of the scoring system. Sync
bowler’s consoles can be equipped with a standard keypads (Touchpads) or full touchscreens (Tablets)
capable of displaying the bowling scoresheet. Centers upgrading from Vector scoring have the option of
re-using their Vector keypads instead of Sync bowler’s consoles.
The consoles can be mounted to tables or pedestal mounted to the oor. The type bowler’s console and
the mounting method determines the interface board needed to connect the console to the rest of the
system.
Sync Tablets
Dual Pedestal
(1)
SYNC
INTERFACE
(2)
TABLET
(3)
BACK VIEW
(4)
FRONT VIEW
J5
J4
J1
J3
J10
+ -+ -
-
+
-
+

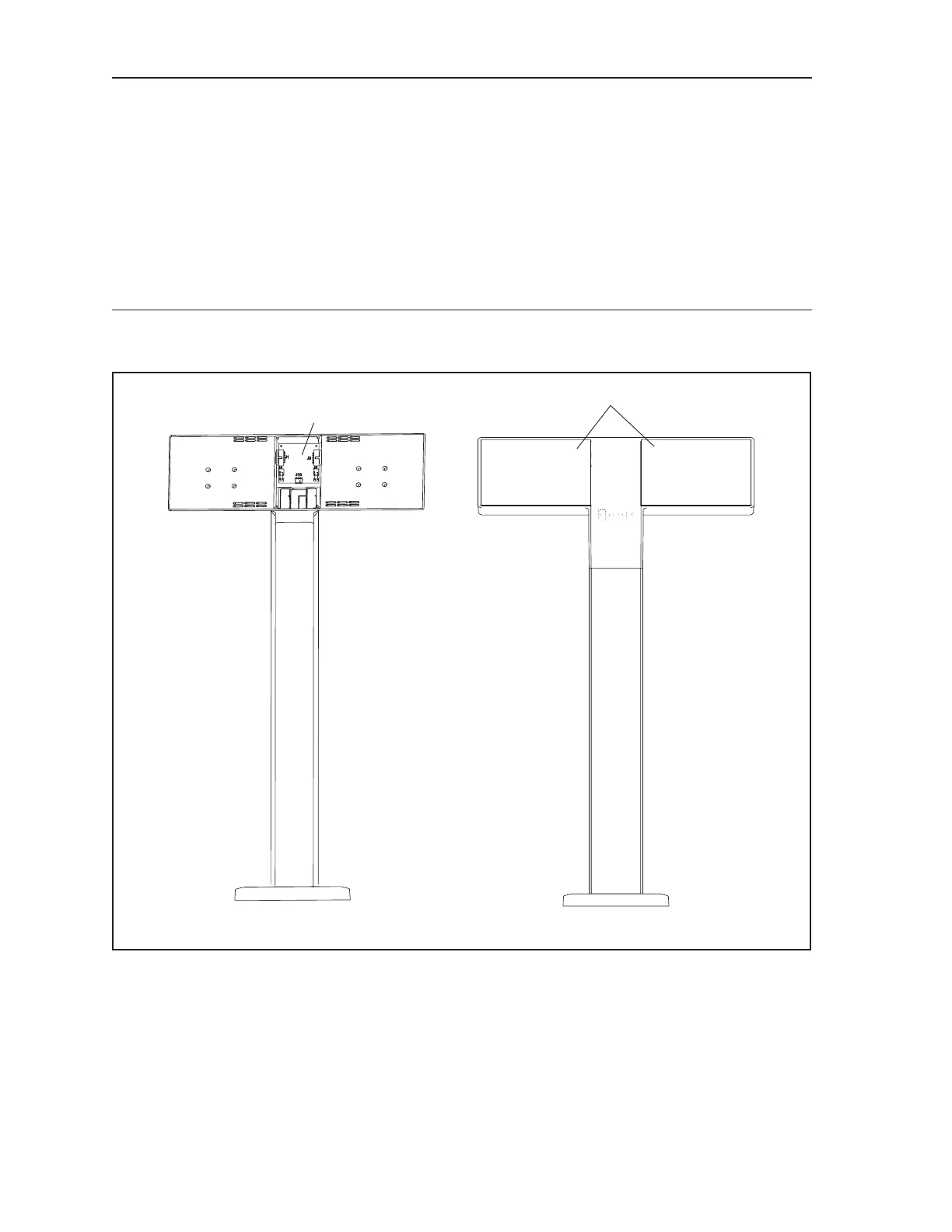

Sync Tablet - Dual Pedestal
(1) SYNC INTERFACE (2) TABLET (3) BACK VIEW
(4) FRONT VIEW
