Brunswick Sync - Status Leds

Sync Scorer Components 11

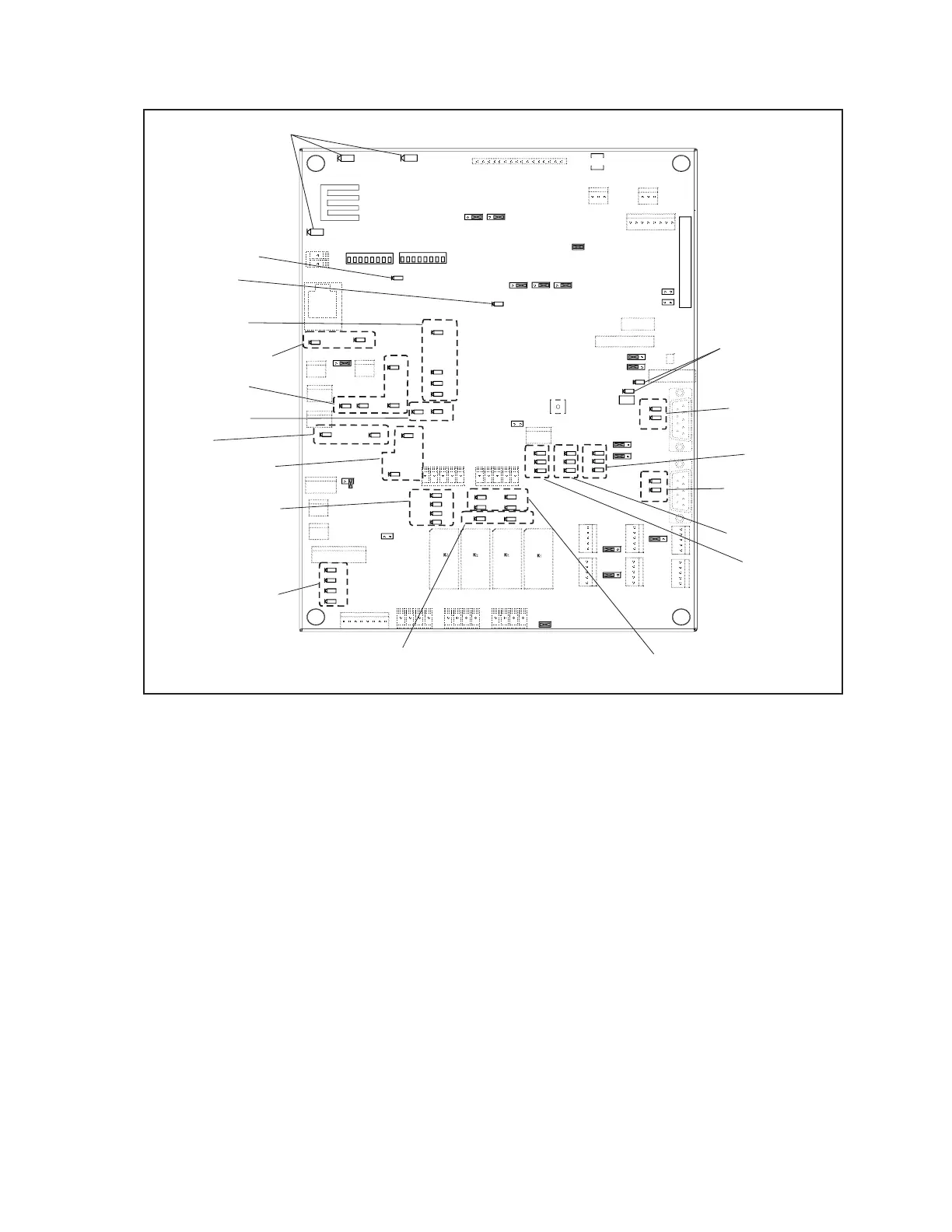

Status LEDs
J5
R_BUMPER_L
D3
TX4
TX5
D2
RX4
RX5
D7
D8
PWR/RES_LEFT
PWR/RES_RIGHT
J3
J17
J30
D34
BUMP_LEFT
CAM_1-3
BUMP_RIGHT
D41
SW1
J33
FOUL_RT
D75
SWP_RT
THR_RT
D84
J35
D61
SWP_LT
SWP/THR_RT
SP_OUT3
D97
D98
SP_OUT4
D69
J20
J34
K1
0DEG_RT
D47
D57
JP8
SPARE OUT
FOUL_LT
J29
CAMERA_EN
JP2
PWR_DN
D95
SP_OUT1
D96
SP_OUT2
CAM_IN2
1
JP14
SPARE_IN
J28
JP9
1
JP18
WD_EN
RESET
JP11
1
A21
JP13
1
A20
JP4
1
+5V
+3.3V
BYTE
A19
+12Vdc
SP_IN1
D53
D55
SP_IN3
D33
RST_LEFT
+12V
D100
D54
SP_IN2
SP_IN4
D56
J36
APS_LEFT
D36
BEAT
+12Vdc
JP16
PWR_LEFT
FOUL_IN
K3
K4
LAN1 OUT
D40
RST_RT
D39
PWR_RT
SWP/THR_LT
THR_LT
D62
1
JP3
T U
D94
1
J13
PE4
PE5
PE3
D81
+12V +5V
1
JP17
D50
F1
JP1
ALSB
LAN1 IN
J8
JP12
1
BOOT0
BOOT1
JP5
D32
J9
K2
D60
CAM_IN1
J12
NPS_LT
0DEG_LT
D48
1
CE2
JP15
+12Vdc
44/NPS_LEFT
44/NPS_RIGHT
SPEED
44DEG_LT
D49
44DEG_RT
D46
D58
NPS_RT
PH_LEFT
D73
PH_RIGHT
J32
D102
PH_RIGHT
PH_LEFT
J27
APS_RIGHT
D64
APS_RIGHT
J37
APS_LEFT
D59
LAN2 OUT
J16
J15
LAN2 IN
T U
JP6
1
J19
LAN3 OUT
LAN3 IN
J18
T U
1
JP7
ISP
LCD1
RS232
J6
RS232_L&R
PT1
J21
161
JP10
+12Viso
J1
FS_ERR
D16
USB_PWR
D17
J31
J14
20
19
2
1
D27
TX6
D23
RX1
D22
DIR1
TX1
D24
D25
DIR6
D26
RX6
DIR3
D28
TX3
D30
RX3
D29
+12V
1
JP19
+5V
RS485
JP20
1
RS232
J7
J26
J25 J23
J24
J22
(13)
RS-485 (LAN3)
COMMUNICATION
(16)
KEYPAD (EVEN)
(11)
AMF
BUMPER
CONTROL
(2)
NETWORK
SPEED
(4)
SWITCH CLUSTER
SWITCHES
(3)
DIAGNOSTIC
(6)
SWEEP SWITCH/
THROW SIGNAL
(8)
AMF
SHORT
CYCLE
(7)
FOUL
(1)
POWER
(9)
SPARE
INPUT
(5)
BALL
DETECT
(10)
SPARE
OUTPUT
(12)
LANE
CONTROL
(17)
KEYPAD (ODD)
(18)
USB
(15)
RS-485 (LAN1)
COMMUNICATION
(14)
RS-485 (LAN2)
COMMUNICATION
(19)
NPS
OPEN
SW2
876
5
4
3
21
BOARD_ADR1
BOARD_ADR2
OPEN
SW3
876
5
4
3
21
Distribution Board 7 LEDs
The function of the LEDs on the Distribution Board 7 are:
(1) Power - (D57,D81,D100) Power indicator LEDs
D57 (red) - +3.3VDC
D81 (red) - +5VDC
D100 (green) - +12VDC
(2) Network Speed - (D60) LED D60 (green) indicates the status of the Ethernet network
connections.
ON - Network cable is connected
FLASHING - Network activity
(3) Diagnostics - (D36) LED D36 (green) ashes when the Distribution PCB is working properly.
