Brunswick Sync - Sync Scorer Power Supply

28 Sync Scorer Components
Sync Scorer Power Supply
The Sync power supply is mounted on the curtain wall of a lane pair for installations equipped with
Sync touchscreens. The unit accepts a universal input of 120 VAC - 240 VAC. Outputs include 12VDC
connectors to supply the touchscreen tablets for a lane pair as well as the tablet Ethernet switch located
under the ball rack on select lane pairs and a main power output connection that can be used to power
the Peripheral Controller. Fuses located inside the power input connector protects the unit from power
surges. Refer to the gure titled Sync Scorer Power Supply - Tablet Installations.
2X 5.0 AMP
SLOW BLOW
FUSES ONLY
RIGHT LANE
LEFT LANE
NETWORK
SWITCH
(5)
TO
LEFT LANE
SYNC CONSOLE
(4)
TO
RIGHT LANE
SYNC CONSOLE
(6)
TO CONSOLE
NETWORK
SWITCH
POWER IN
(1)
AC POWER
IN
(3)
AC POWER
OUT
(2)
POWER
FUSES
(5A SB)
POWER OUT
POWER IN
2X 5.0 AMP
SLOW BLOW
FUSES ONLY

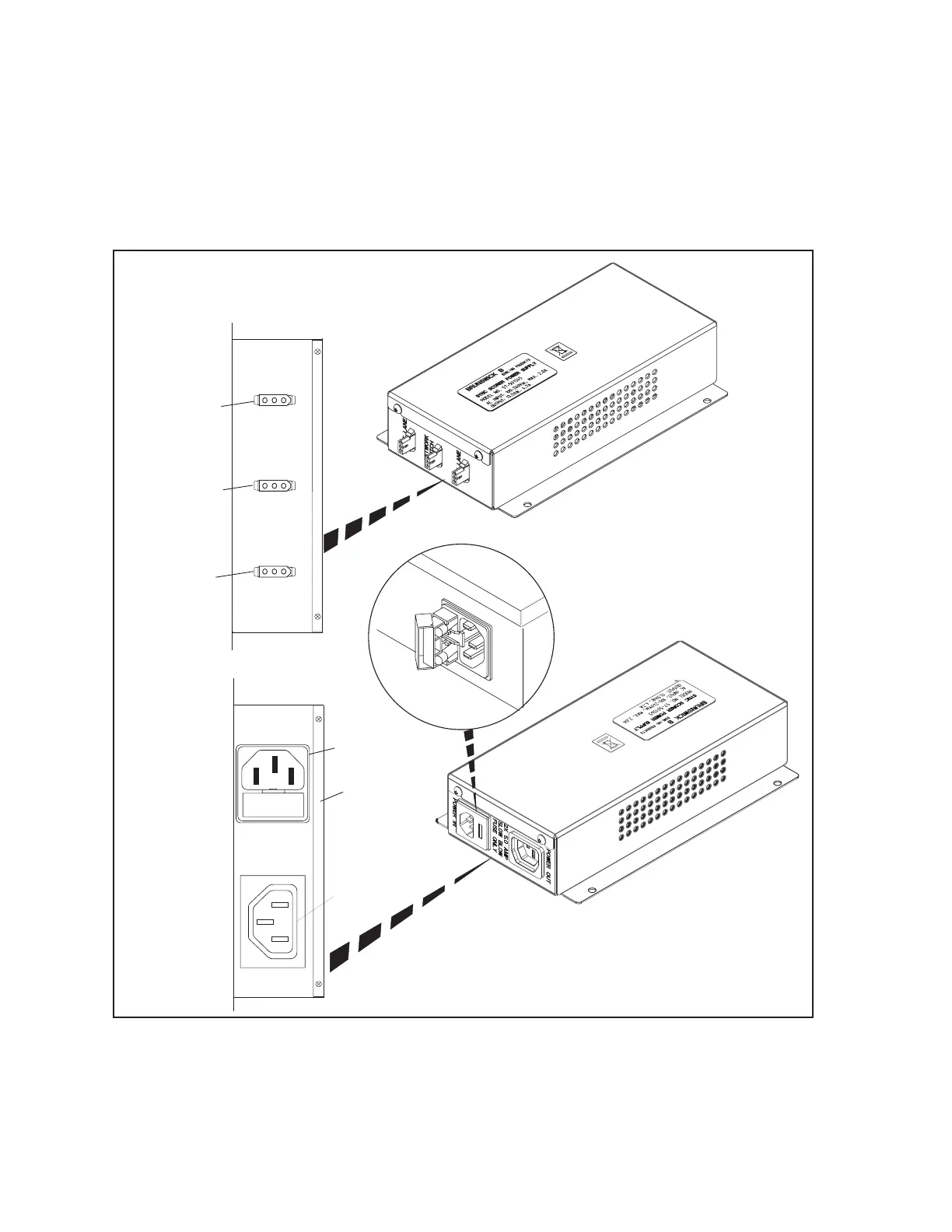

Sync Scorer Power Supply - Tablet Installations
