Video Amplier
A video amplier is used to increase the signal from the RF combiner to a sufcient level for the
displays in the center. The unit is specically designed to amplify higher frequencies more than the
lower frequencies to compensate for the greater loss of the higher frequencies as it is sent through the
coax cable. The output of the amplier is pre-adjusted at the factory for a optimum output level.
Video Amplier

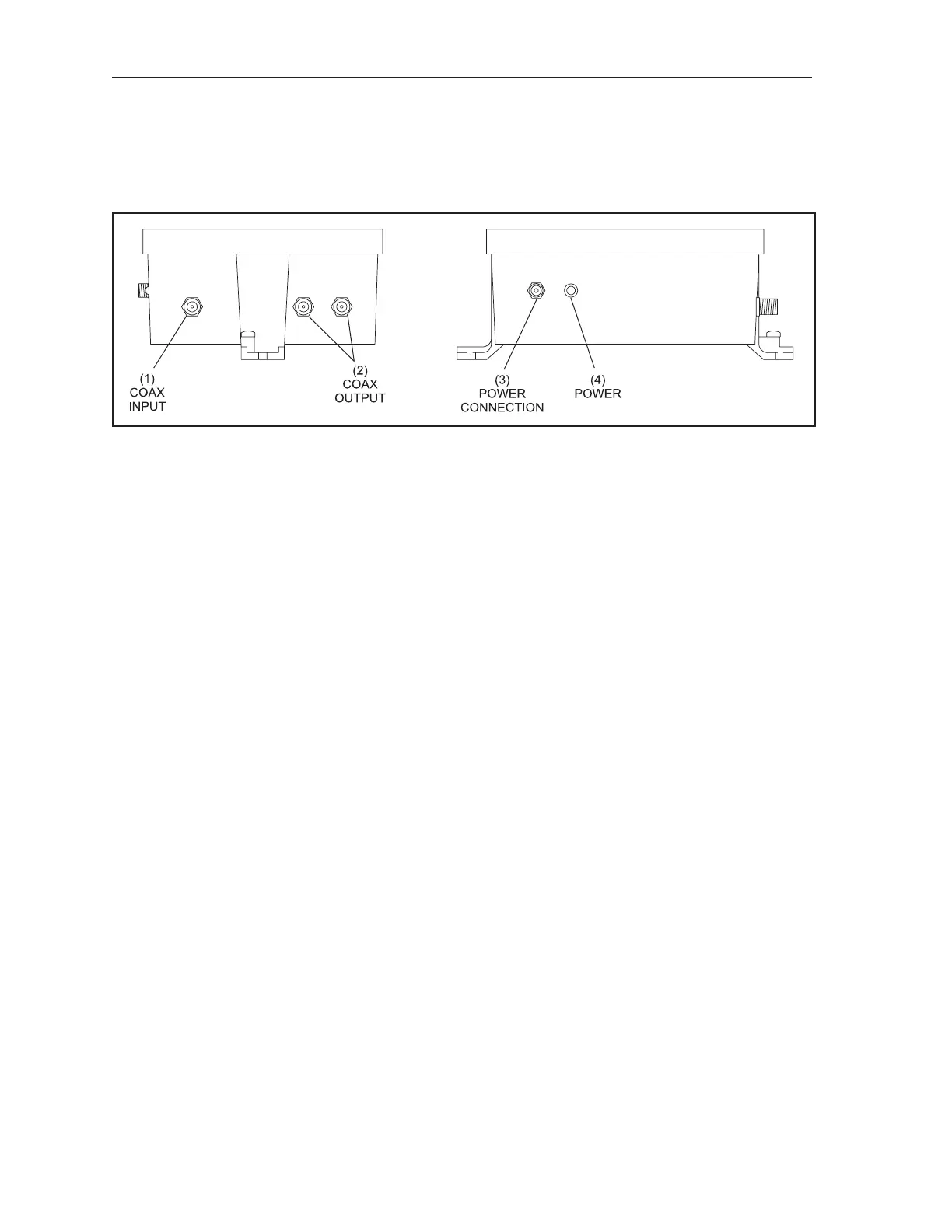

The functions of the components and connectors on the amplier are:
(1) Coax Input - Input connection for the signal coming from the RF combiner.
(2) Coax Output - Output connection for the amplied signal going to the overhead monitors.
(3) Power Connection - 6 VDC power input.
(4) Power - Power indicator light.
