Brunswick Sync - Video

28 System Overview
Video
Two types of video are used in the Sync system:
Scoresheet - Scorer video for the overhead displays is generated by the Display Controller and
connected to the displays through an HDMI cable.
TV - The TV signal originates at the control desk and is daisy chained to each overhead in the system.
Refer to the gure titled Sync System - Video Cabling.
(1)
TV DISTRIBUTION
CENTER
(OPTIONAL)
(2)
TV VIDEO
CABLE
(3)
CONTROL
DESK
(6)
WIDE SCREEN
TV-ONLY
OVERHEAD
MONITOR
(2)
TV
VIDEO CABLE
(9)
TO
ADDITIONAL
OVERHEADS
(5)
WIDE SCREEN
OVERHEAD
MONITORS
(5)
WIDE SCREEN
OVERHEAD
MONITORS
(2)
TV
VIDEO CABLE
(2)
TV
VIDEO CABLE
(9)
TO
ADDITIONAL
OVERHEADS
(4)
DISPLAY
CONTROLLER
(4)
DISPLAY
CONTROLLER
(11)
SCORESHEET
VIDEO
LANE 2
(10)
SCORESHEET
VIDEO
LANE 1
(12)
SCORESHEET
VIDEO
LANE 3
(13)
SCORESHEET
VIDEO
LANE 4
(7)
SPLITTER
(8)
TAP

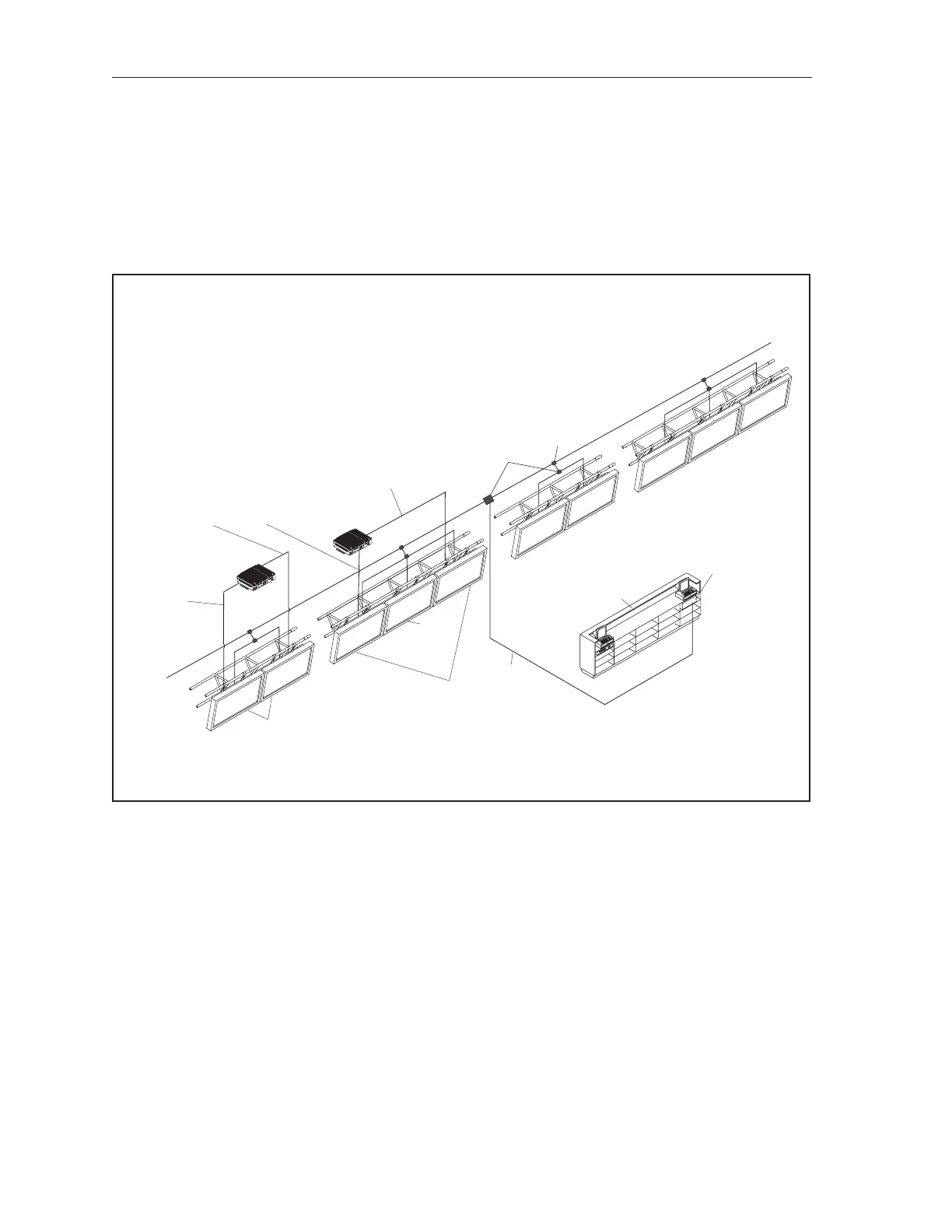

Sync System - Video Cabling
(1) TV DISTRIBUTION CENTER (2) TV VIDEO CABLES (3) CONTROL DESK
(4) DISPLAY CONTROLLER (5) WIDE SCREEN OVERHEAD (6) WIDE SCREEN TV-ONLY
MONITORS OVERHEAD MONITORS
(7) SPLITTER (8) TAP (9) TO ADDITIONAL OVERHEADS
(10) SCORESHEET VIDEO LANE 1 (11) SCORESHEET VIDEO LANE 2 (12) SCORESHEET VIDEO LANE 3
(13) SCORESHEET VIDEO LANE 4
