Sync Control System 45
RF Combiner
The RF combiner takes the output signals from the modulators and combines them into a single
RF signal that can be sent to the overhead displays on one coaxial cable. The combiner is an 8-port
splitter that is wired in reverse. Used as a combiner, the splitter takes the signals attached to its “out”
connections, and outputs them on a single cable attached to its “in” connector.

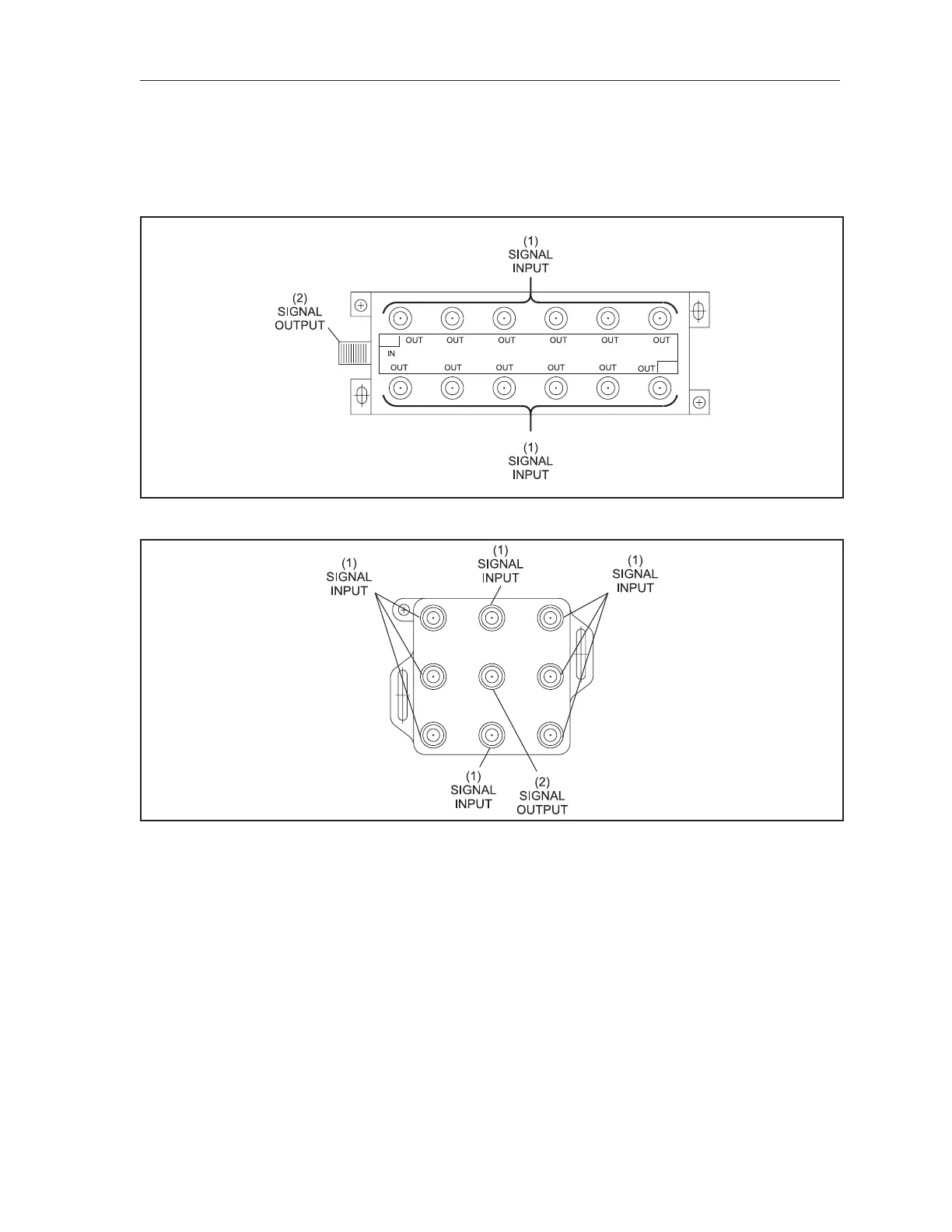

12 port RF Combiner/Splitter
8-port RF Combiner/Splitter
The functions of the connectors on the RF Combiner are:
(1) Signal Input - Input connections for the signal coming from the modulators.
(2) Signal Output - Connection for the combined signal going to the video amplier.
