Sync Camera Assembly
7
PINSETTER MODIFICATIONS
Sweep (Rake) Switch
The sweep (rake) switch ensures that the camera takes the picture only after the pinsetter triggers. If a
ball detection has occurred, the opening of sweep switch, causes the camera to take a picture after a
preset delay. Additional ball detect signals will be ignored when the switch is opened. Refer to gures
titled Switch Wiring Chart, Brunswick Rake Switch and AMF Sweep Switch.
Sweep (Rake) Switch Wiring
INSTALLATION
WIRING
Brunswick Pinsetters - Rake Switch Common (COM), Normally Closed (NC)
AMF Pinspotters - Sweep Switch Common (COM), Normally Closed (NC)
Switch Wiring Chart

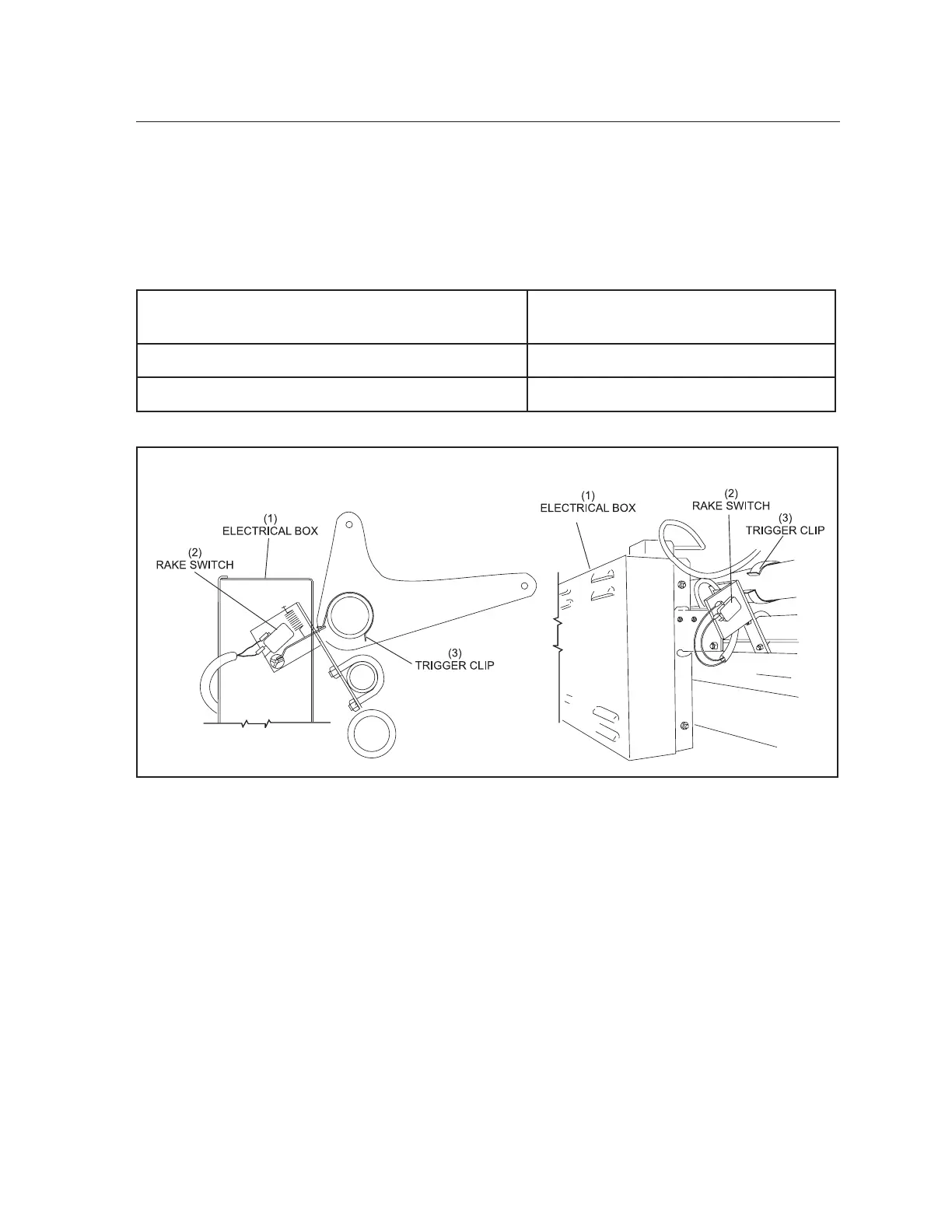

Brunswick Rake Switch
(1) ELECTRICAL BOX (2) RAKE SWITCH (3) TRIGGER CLIP
