Brunswick Sync - Cable Diagrams

Sync Camera Assembly
41
CABLE DIAGRAMS
(2)
RIGHT BALL
DETECTOR
(1)
LEFT BALL
DETECTOR
(3) BALL DETECT CABLE
(57-500220-000)
(10) FOUL CABLE
(57-500207-000)
(12) FOUL UNIT
(9) EVEN
(8) ODD
(17) RESET
(14)
LEFT PINSETTER
(15)
ELECT. BOX
(16) POWER
(18) RAKE DOWN
SWITCH
(19)
RIGHT PINSETTER
J32
(11)
PINSETTER
RESET
/POWER
/SWEEP CABLE
(57-500206-000)
(6)
VIDEO CABLE
(57-500050-000)
(15)
ELECT. BOX
(18) RAKE DOWN
SWITCH
(16) POWER
(17) RESET
J2
(5)
CAMERA
6
9
5
1
J1
J3
R_BUMPER_L
PWR/RES_LEFT
PWR/RES_RIGHT
SW1
8765
OPEN
SW2
4
321
SWP/THR_RT
K1
RESET
APS_LEFT
BOARD_ADR1
FOUL_IN
K3
K4
K2
44/NPS_LEFT
44/NPS_RIGHT
APS_RIGHT
RS232
J6
RS232_L&R
4318765
BOARD_ADR2
OPEN
SW3
2
J31
J7
J27
J33
J34
J35
J25
J23
J26
(11)
PINSETTER
RESET
/POWER
/SWEEP CABLE
(57-500206-000)
BUMPER
CAMERA
KEYPAD
GS PINSETTER
2X 2.0 AMP, 250V
SLOW BLOW FUSES
ETHERNET
J2
(7)
POWER CABLE
(57-500281-000)
J36
J37
J24
J22
(13)
DISTRIBUTION
PCB
(4)
PERIPHERAL CONTROLLER
(BACK VIEW)
(20)
CAMERA
ADAPTER
PCB
(22)
44 DEGREE
SWITCH
(21)
NEW PIN
SOLENOID
(21)
NEW PIN
SOLENOID
SWP/THR_LT
BALL_RT
BALL_LT
(22)
44 DEGREE
SWITCH

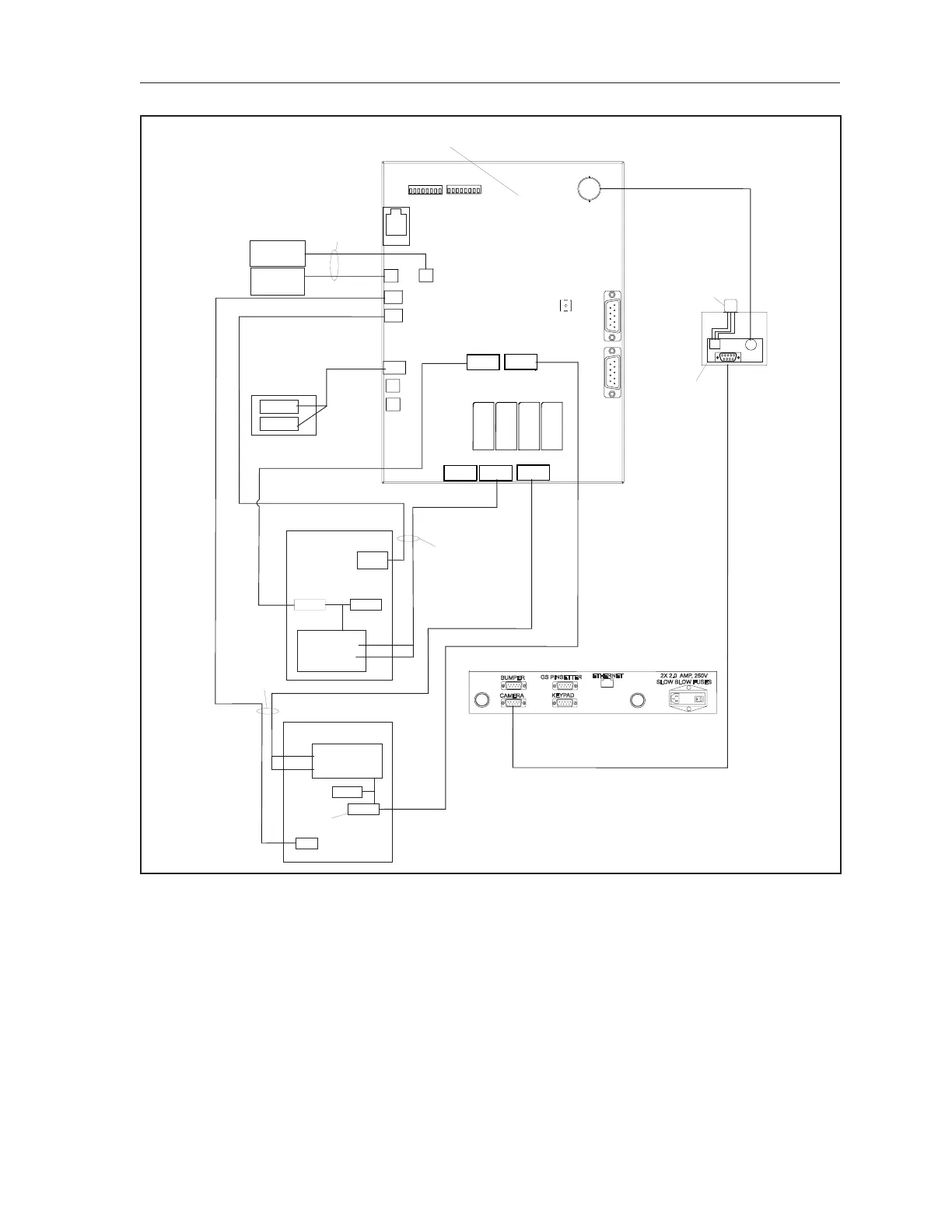

A, A2 Pinsetter Sync Wiring
(1) LEFT BALL DETECTOR (2) RIGHT BALL DETECTOR (3) BALL DETECT CABLE
(57-500220-000)
(4) PERIPHERAL CONTROLLER (5) CAMERA (6 VIDEO CABLE (57-500050-000)
(BACK VIEW)
(7) POWER CABLE (8) ODD (9) EVEN
(57-500281-000)
(10) FOUL CABLE (57-500207-000) (11) PINSETTER RESET/POWER/ (12) FOUL UNIT
SWEEP CABLE (57-500206-000)
(13) DISTRIBUTOR PCB (14) LEFT PINSETTER (15) ELECT. BOX
(16) POWER (17) RESET (18) RAKE DOWN SWITCH
(19) RIGHT PINSETTER (20) CAMERA ADAPTER PCB (21) NEW PIN SOLENOID
(22) 44 DEGREE SWITCH
