Brunswick Sync - Power Supply

46 Sync Scorer Components
Power Supply
(4)
POWER
SWITCH
POWER SWITCH
POWER
IN
POWER
OUT
(1)
AC POWER
IN
(3)
AC POWER
OUT
(2)
POWER
FUSES
(5A SLOW BLOW)
(5)
DISPLAY
CONTROLLER
POWER
POWER IN
POWER
OUT
POWER
IN

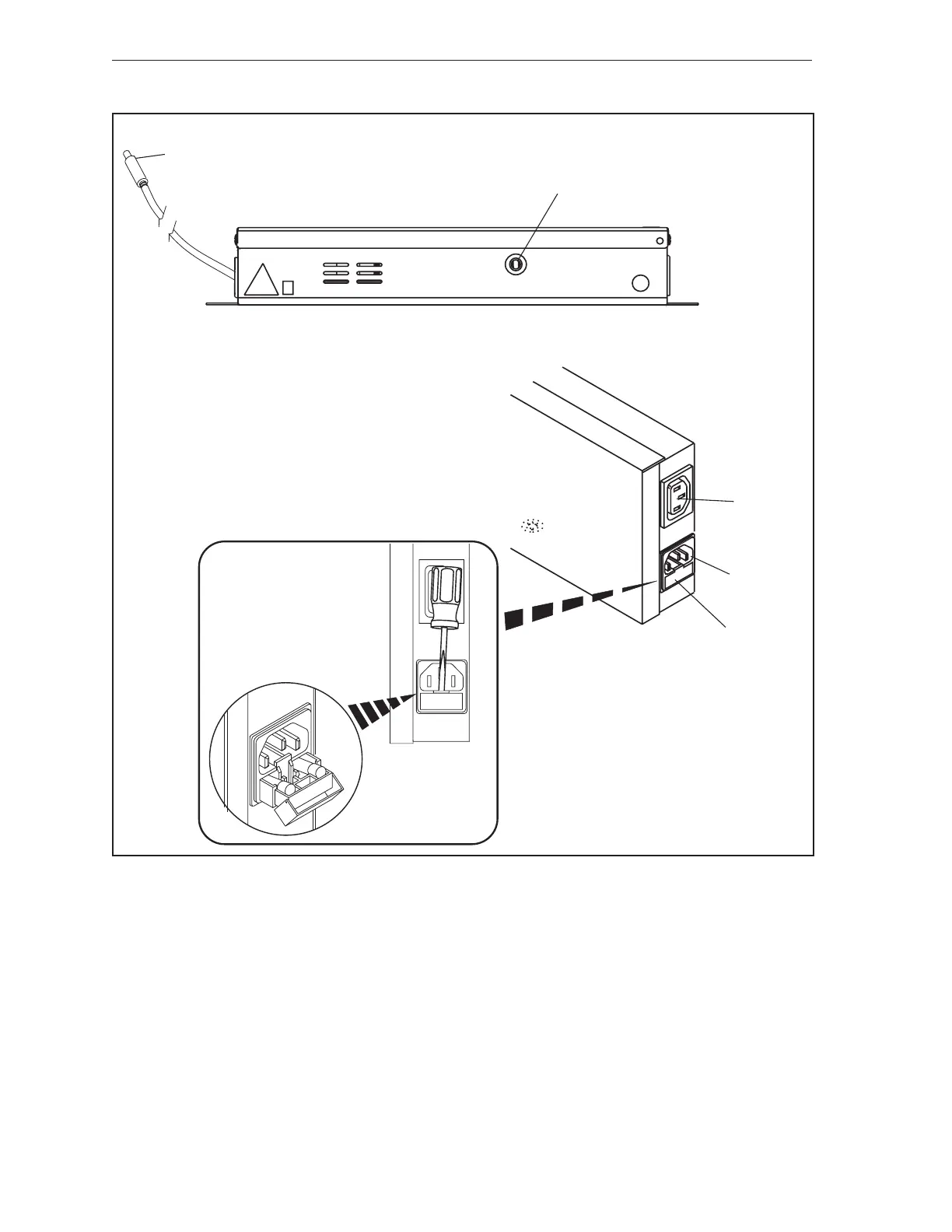

Display Controller Power Supply
(1) AC Power In - AC power input.
(2) Power Fuses - 5 amp, slo blo fuses used for the incoming power.
(3) AC Power Out - AC power connection that can be used to power a monitor.
(4) Power Switch - Push button used to power the unit On/Off.
(5) Display Controller Power - 12V DC power output for the Display Controller.
