Brunswick Sync - Jumpers and Settings; Ball Detect

Sync Camera Assembly
33
Jumpers and Settings

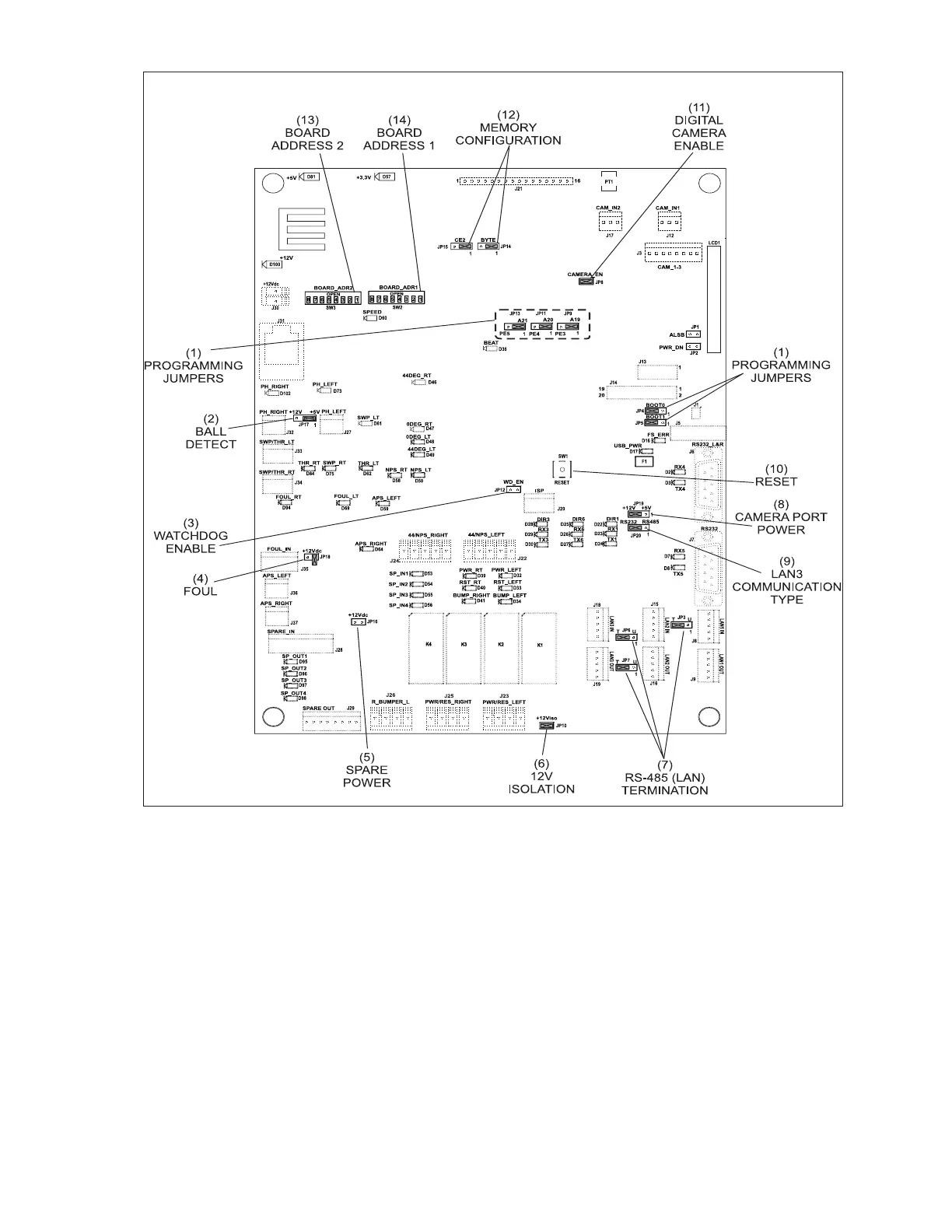

Distribution Board 7 Jumpers
The function of the jumpers on the Distribution Board 7 are:
(1) Programming Jumpers - (JP4,JP5,JP9,JP11,JP13) For factory use only
JP4,JP5 - Install jumper at pins 2-3 (Gnd) (Default)
JP9,JP11,JP13 - Install jumper at pins 1-2 (Default)
(2) Ball Detect - (JP17) Jumper used to congure the Distribution PCB to power the ball detectors
used in installations equipped with pin camera with 5VDC or 12VDC. This setting is only
impacts installations that use cameras for scoring (Centers without GS-Series pinsetters and
StringPin pinsetters). For square type ball detectors, set the jumper to 5VDC. For the round ball
detectors, set the jumper to 12VDC.
