18 Sync Control System
INTERCOM
Overview
The intercom system used in the Sync system depends on what type of bowler console the center has
installed. When equipped with Sync Touchpads or Vector keypads, an Audio Control Unit and handset
/beeper assemblies are used. When the center is equipped with lower tablets, a VOIP (Voice Over
Internet Protocol) telephone is used.
Intercom with Sync Touchpads or Vector Keypads
Intercom Beeper Assembly
The intercom beeper assembly provides an audible indication whenever an intercom request is received
from a console. The box is connected to the Audio Control unit through a 6-conductor telephone cable,
then to the handset box via another 6-conductor cable. A volume control on the assembly allows the
control desk operator to adjust the volume level of the beep. Refer to the gure titled Beeper Assembly.

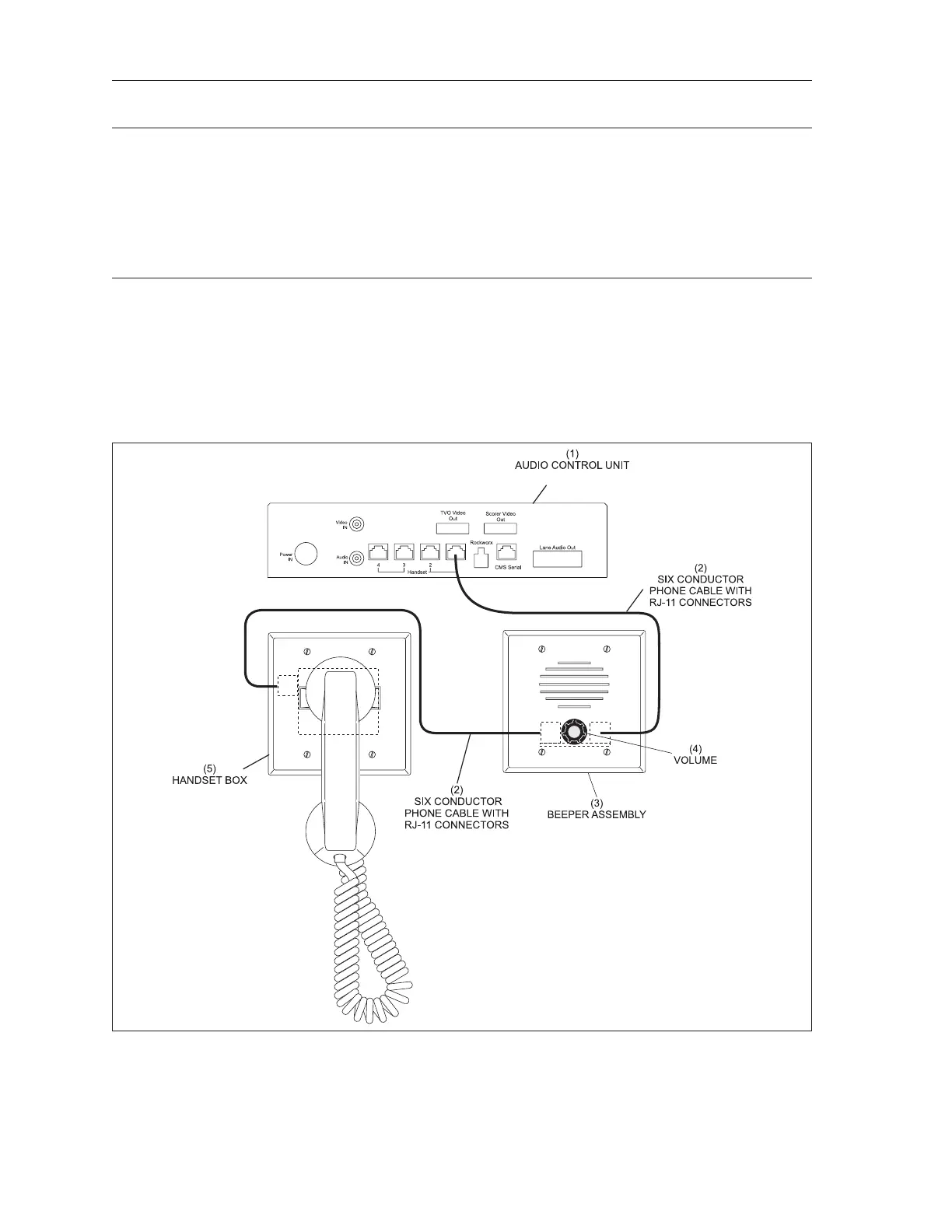

Beeper Assembly
(1) AUDIO CONTROL UNIT (2) SIX CONDUCTOR PHONE (3) BEEPER ASSEMBLY
CABLE WITH RJ-11 CONNECTORS
(4) VOLUME (5) HANDSET BOX
