Sync Camera Assembly
27
Distribution Board 7
Connections and Components

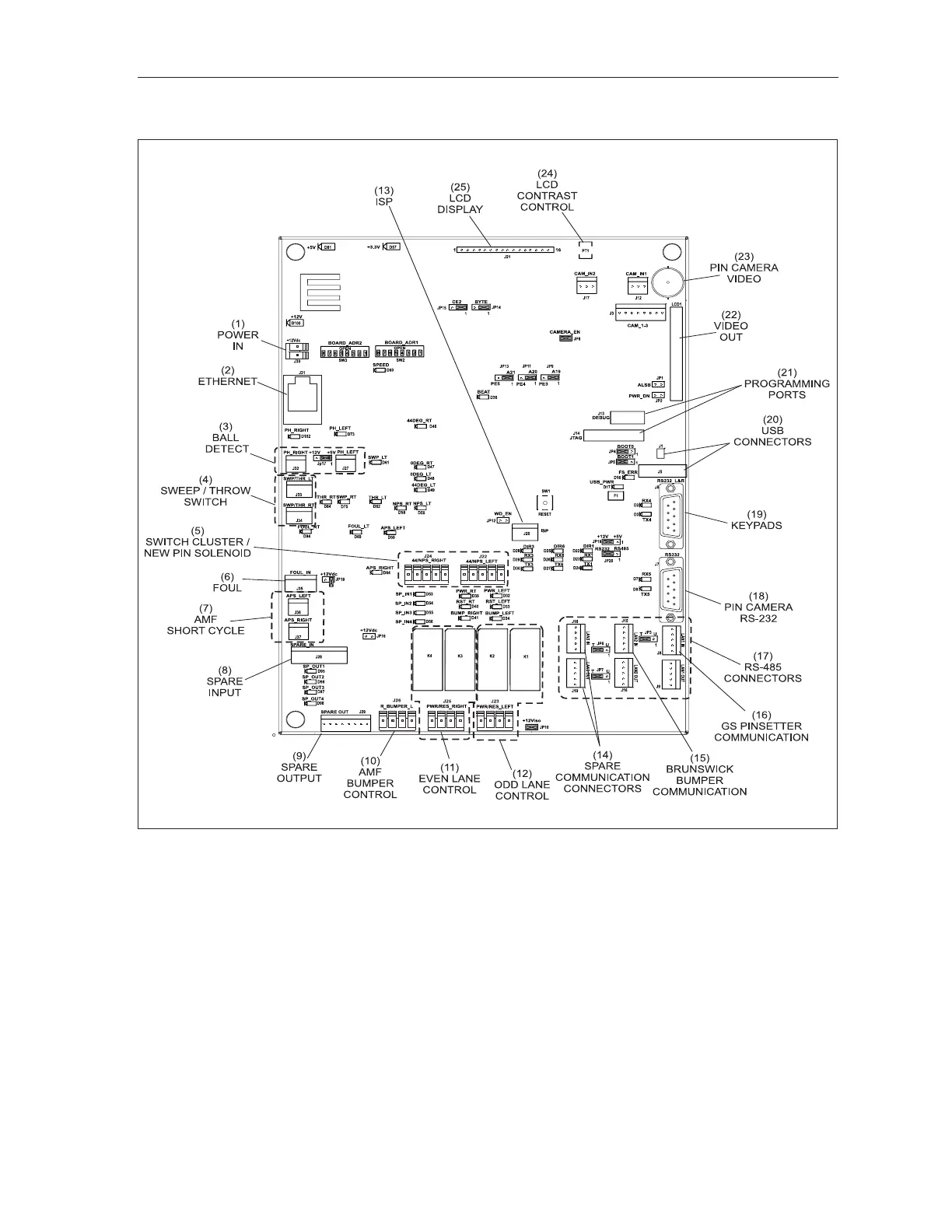

Distribution Board 7 Connectors and Components
The function of the connectors and components on the Distribution Board 7 are:
(1) Power In - (J30) Board power connector. Input for +12VDC originating at the power supply.
(2) Ethernet - (J31) Internal connection point for the Cat5e cable that attaches to the external
“Ethernet” connector located on the bottom of the Peripheral Controller. The Distribution
board communicates with the Sync control system, Display Controllers, and Sync Touchscreen
consoles through this connection.
