Sync Scorer Components 37
Vector Keypads
Instead of using Sync consoles for the bowler entries, a center can opt to use their existing Vector
keypads. These keypads are identical lane to lane and contain circuit boards that are interchangeable.
The Keypad Interface PCB located in the keypad housing handles the bowler input, sound selection and
communication for the console. Refer to the gures titled Vector Keypads and Keypad Interface PCB.
(2)
KEYPAD INTERFACE
PCB
(3)
MICROPHONE
(4)
SPEAKER
(1)
KEYBOARD

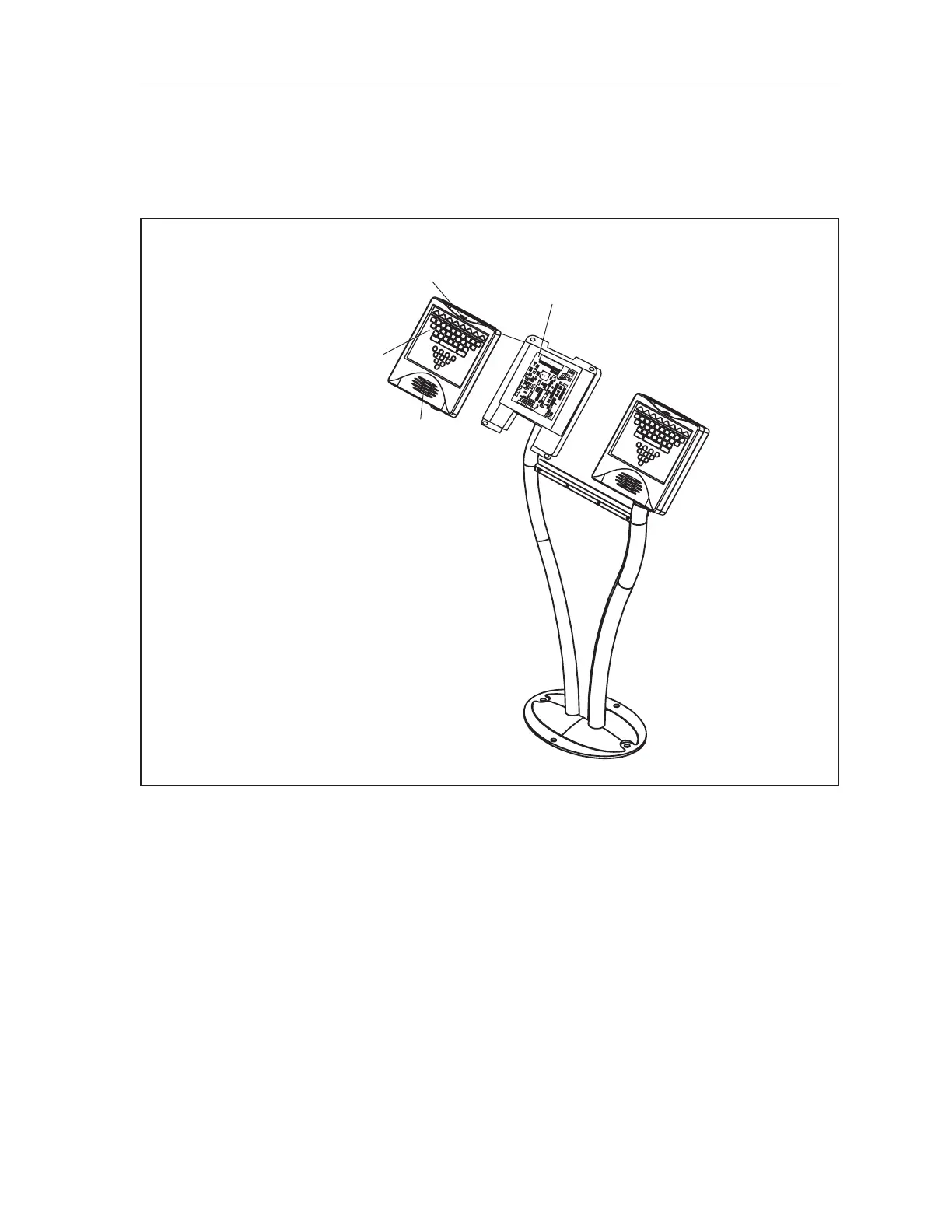

Vector Keypads
(1) KEYBOARD (2) KEYPAD INTERFACE PRINTED (3) MICROPHONE
CIRCUIT BOARD
(4) SPEAKER
