Sync Camera Assembly
5
BALL DETECTOR
The Sync system uses a ball detector that is an infrared sensing device. The ball detector unit is made
up of two infrared transmitters and receivers, one for each lane. LEDs on the unit indicate power, signal
stability and level. The provided adjustment allow the user to adjust the ball detection sensitivity. Refer
to gure titled Ball Detector.

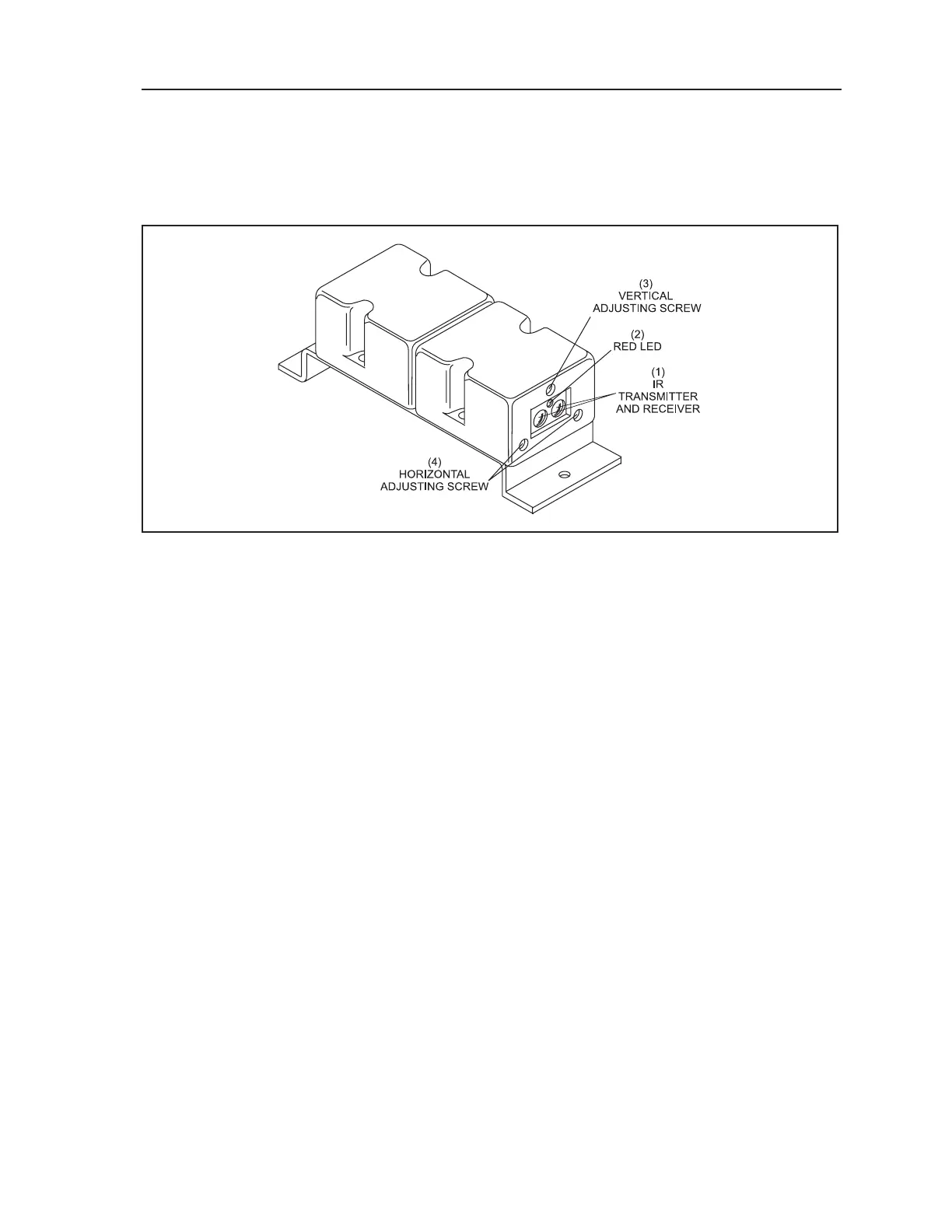

Ball Detector
(1) IR TRANSMITTER AND RECEIVER (2) RED LED (3) VERTICAL ADJUSTING SCREW
(4) HORIZONTAL ADJUSTING SCREW
