Sync Control System 55

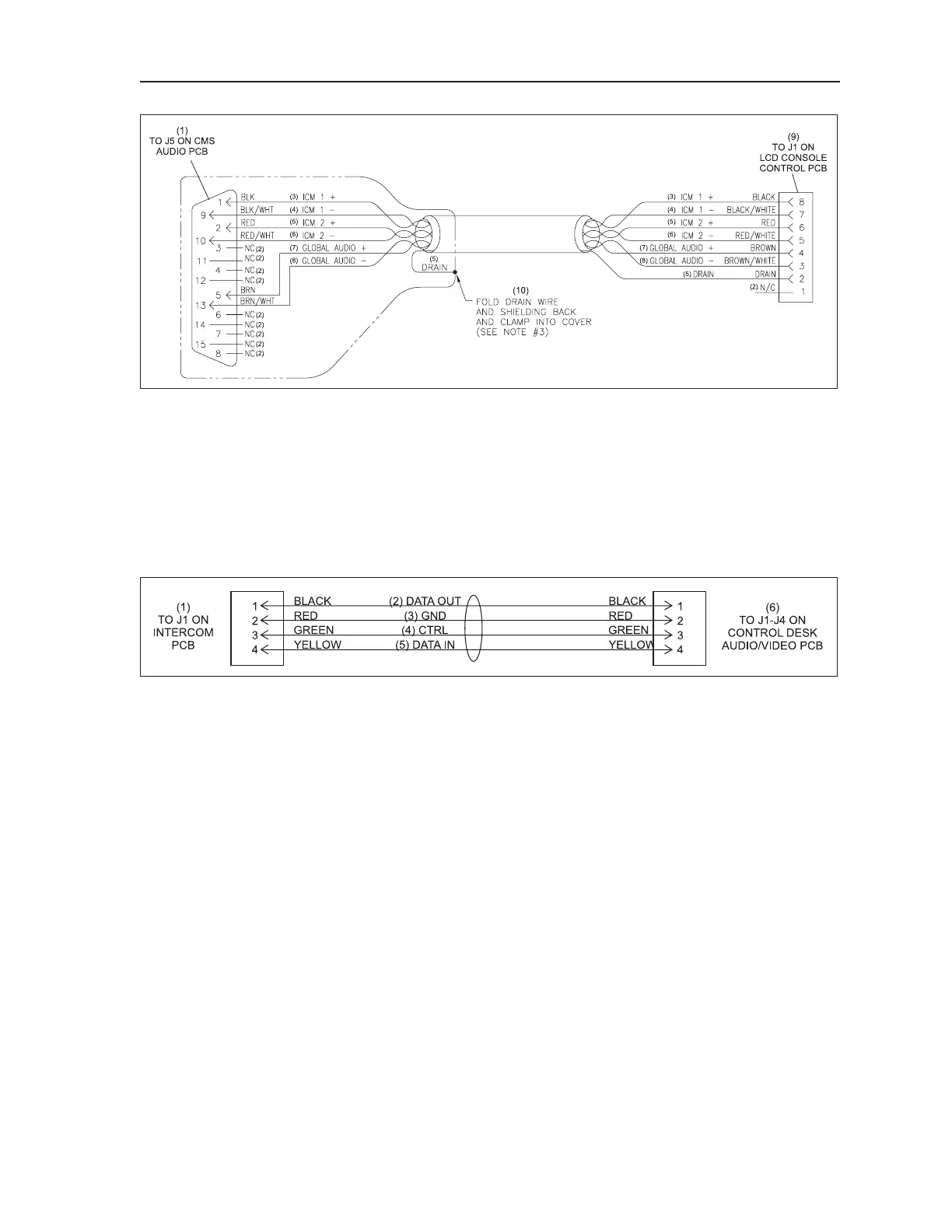

CABLE DIAGRAMS
Global Audio Control Desk to First Vector Keypad Or Sync Touchpad (Part No. 57-301125-000)
(1) TO J5 ON CMS AUDIO PCB (2) NO CONNECTION (3) INTERCOM 1 +
(4) INTERCOM 1 - (5) INTERCOM 2+ (6) INTERCOM 2-
(7) GLOBAL AUDIO + (8) GLOBAL AUDIO - (9) TO JI ON LCD CONSOLE
CONTROL PCB
(10) FOLD DRAIN WIRE AND
SHIELDING BACK AND CLAMP INTO
COVER (SEE NOTE 3)
Intercom to Control Desk Audio Control Box (Part No. 57-300132-000)
(1) TO J1 ON INTERCOM PCB (2) DATA OUT (3) GROUND
(4) CONTROL (5) DATA IN (6) TO J1-J4 ON CONTROL DESK
AUDIO/VIDEO PCB
