Sync Interface - Dual Pedestal Tablets
The interface board located in dual tablet pedestals connects two touchscreen tablets to the pedestal’s
speakers and microphones and provides 12VDC to power the tablets. Two similar interface boards are
available with the difference being the addition of RJ-45 connectors used for routing the ethernet cat5e
network cables. This board with the added connectors provide a simple pass-through for the network
signal allowing centers that upgrade their tablets to the most recent model to use their existing network
cabling. Refer to the gures titled Sync Interface - Dual Pedestal Tablets (Non Upgrade Version) and
Sync Interface - Dual Pedestal Tablets (Tablet Upgrade Version)
(10)
SPEAKERS
(9)
ETHERNET
CABLES
(57-501416-XXX)
(8)
POWER
CABLE
(57-501320-000)
J4
J5
-
2
1
+
JPR1
SP_G
SP_G
JPR3
JPR2
Vin1/Vin2
JPR5
1
MN
ST
(5)
POWER
LED
(1)
TO
TOUCHSCREEN
(2)
POWER
INPUT
(2)
POWER
INPUT
(1)
TO
TOUCHSCREEN
(5)
POWER
LED
(6)
SPEAKER
CONFIGURATION
JUMPERS
(7)
POWER
JUMPER
(4)
SPEAKER
CONNECTION
JPR4
1
MN
ST
(6)
SPEAKER
CONFIGURATION
JUMPERS
-
PWR1
2
L12
L1
PWR2
D7
+12V
C1 C2 C6
C9
L2
L5
J3
+12V
C3L7L4
D6
TP3
C10
C12
L9
J1
J2
1
C5
L11
L6
L10
L16
J10
C7
D10
1
J4
D5
D9
D1
D8
C4
C8
D2
D3
D4
MIC1
MIC2
C11
+
L13
L3
+12V
L17
L15
L8
SPEAKERS
RS-232
L14
U1
J5
(3)
ETHERNET
CONNECTION
(3)
ETHERNET
CONNECTION
-
+
-
+
L
R
J1
J3
J10
+-
RED BLACK
GREEN
WHITE
+-
TESTED
DATE INITIALS
TESTED
DATE INITIALS

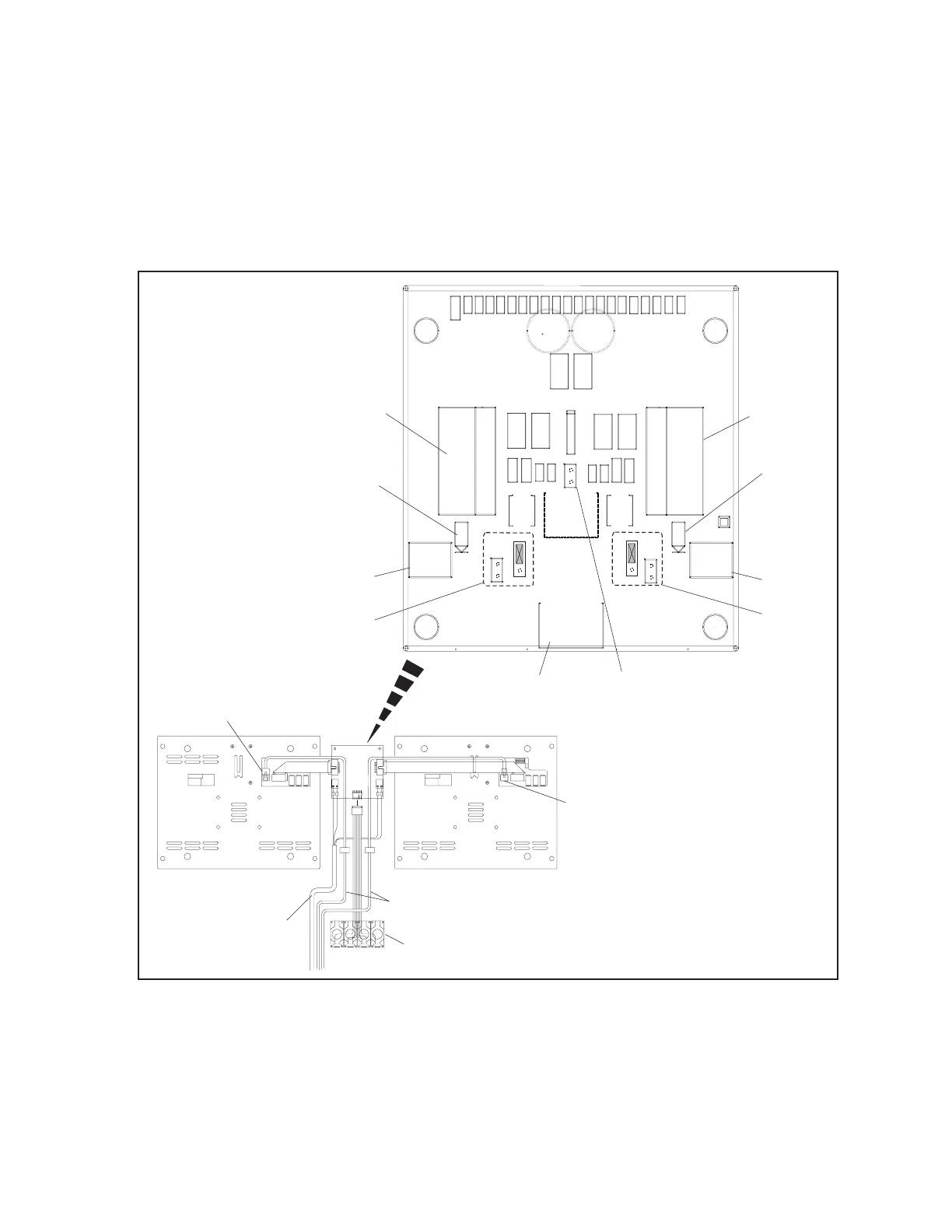

Sync Interface - Dual Pedestal S5 Tablets (Non Upgrade Version)
