40 Sync Control System
TV Distribution Center
The TV Distribution center consists of video adaptors (as needed), a modulator for each signal source, a
signal combiner, and a signal amplier.
The distribution center can accept a variety of signal sources such as satellite boxes, cable set-top boxes,
or DVD/Blu-ray players. Modulators mounted inside the center take the audio and video signals from
the sources and “assigns” a unique “TV” channel to each of them. These channels are then combined
into a single coaxial cable, amplied, and distributed to the overhead monitors. Refer to the gure
titled TV Distribution Center.

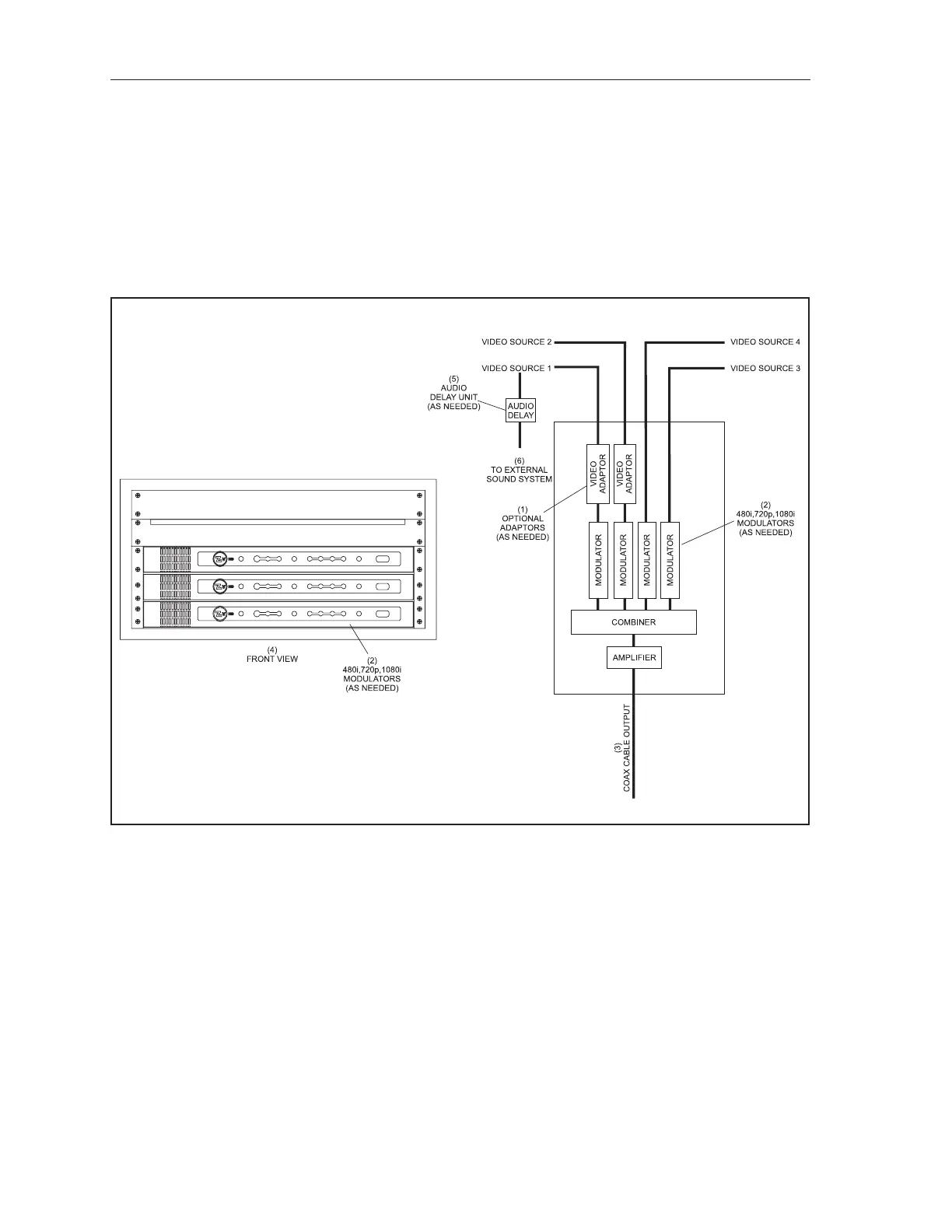

TV Distribution Center
1) OPTIONAL ADAPTORS (2) 480I, 720P,1080I MODULATORS (3) COAX CABLE OUTPUT
(AS NEEDED) (AS NEEDED)
4) FRONT VIEW (5) AUDIO DELAY UNIT (AS NEEDED) (6) TO EXTERNAL SOUND SYSTEM
