Sync Camera Assembly
25
PERIPHERAL CONTROLLER
The Peripheral Controller provides multiple functions for a lane pair dependent on the pinsetter in use
and optional devices that may be installed on the lane pair.
The board contains circuits to allow communication to GS series pinsetters, Brunswick automated
bumpers and optional Vector keyboard.
For non GS pinsetter installations it supplies power to the pin camera and processes the camera’s video,
turns the pinsetters on/off, cycles the pinsetters as needed, interfaces the ball detectors and foul unit to
the scoring system.
The board also has the capability to control AMF automated bumpers and provide signals for AMF
pinspotters chassis equipped with the short cycle functionality. Version 7 also contains circuitry and
connectors on the circuit board to expand functionality in the future. Refer to gure titled Peripheral
Controller Box, Distribution Board 7 Connectors and Components, Distribution Board 7 LEDs, and
Distribution Board 7 Jumpers.
(11)
POWER
SUPPLY
(2)
FUSES
(1)
POWER
SWITCH
(4)
CABLE
FEED THROUGH
HOLE
(10)
DISTRIBUTION
BOARD 7
(8)
CAMERA
(7)
GS
PINSETTER
(6)
KEYPADS
(9)
BUMPERS
(5)
NETWORK
CONNECTION
(3)
POWER
IN
(4)
CABLE
FEED THROUGH
HOLE

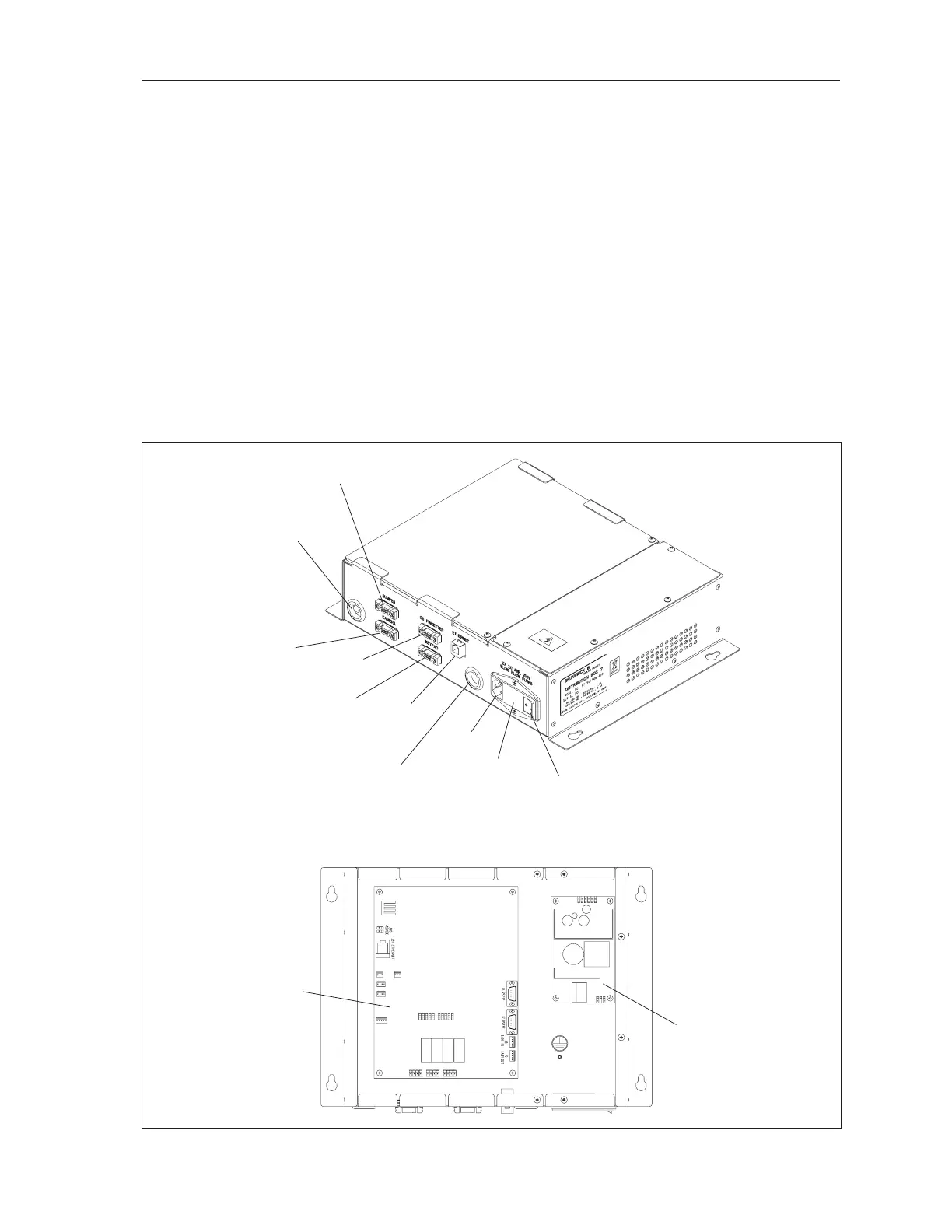

Peripheral Controller Box
