Brunswick Sync - Page 150

24
Sync Camera Assembly

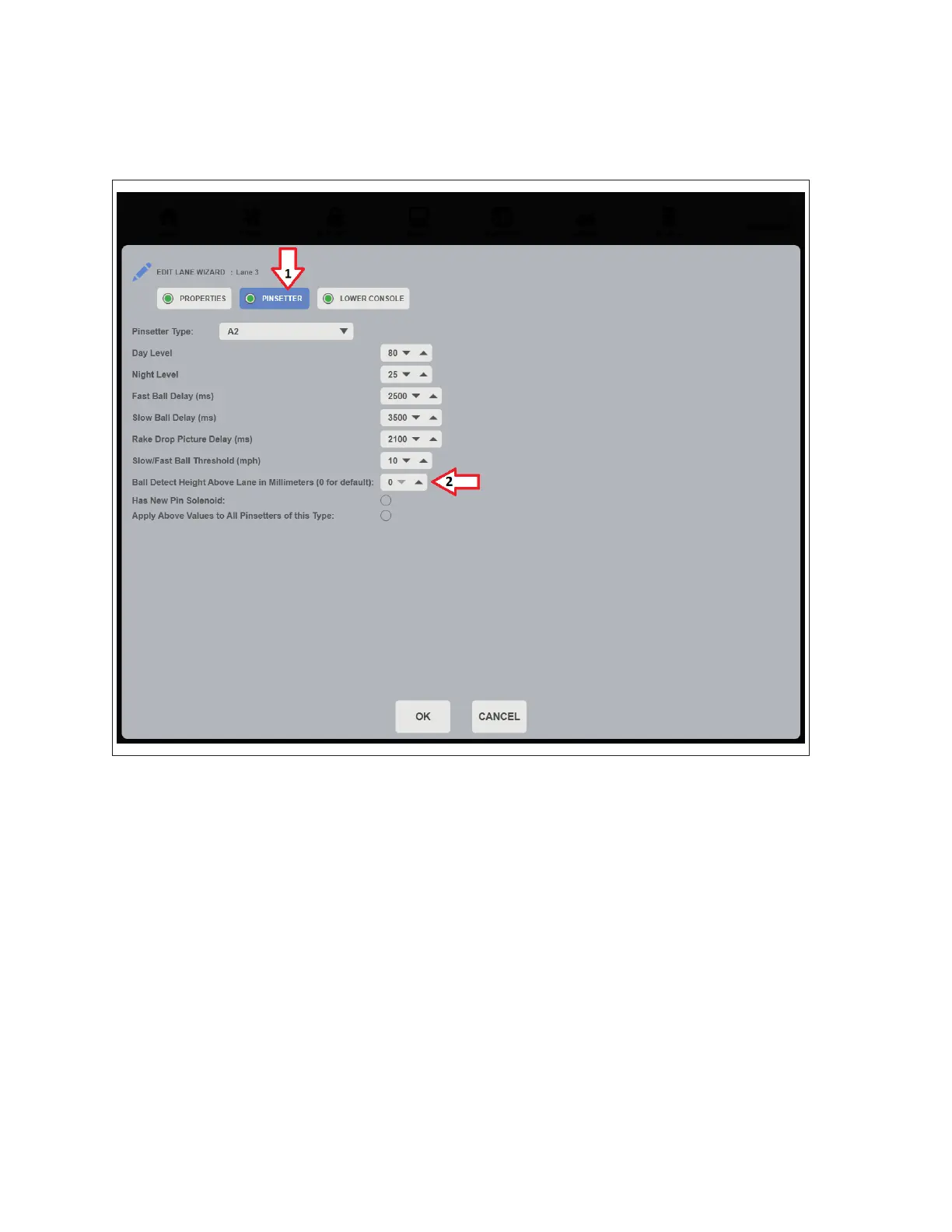

2. On the Lane Wizard screen, select the pinsetter tab.
3. Select the Ball Detect Height eld and enter the measured distance, in millimeters, from lane
surface to the middle of the ball detector lens.
Ball Detect Height Setting
