System Overview 27

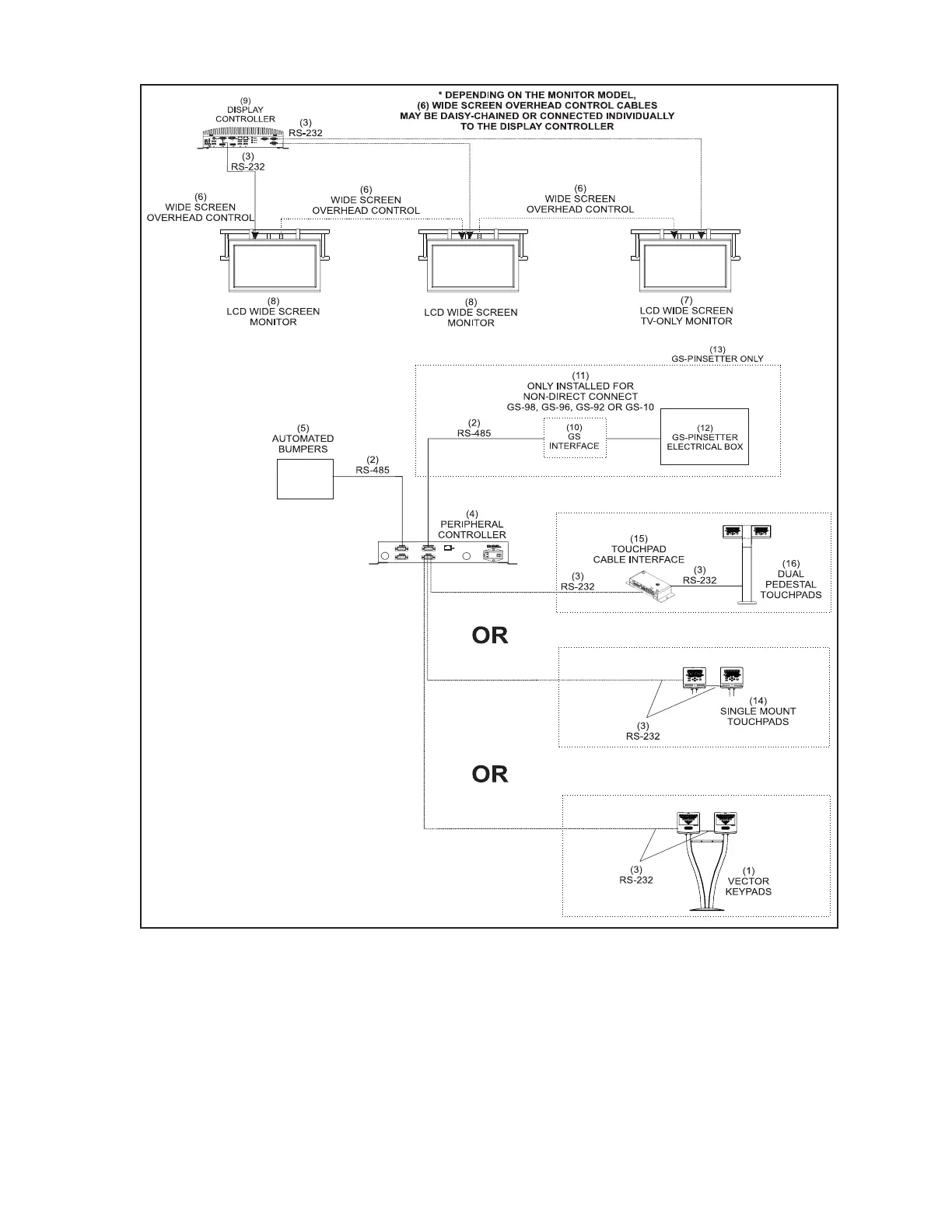

Sync Lane Pair Communication Cabling (One Lane Pair Shown)
(1) VECTOR KEYPADS (2) RS-485 (3) RS-232
(4) PERIPHERAL CONTROLLER (5) AUTOMATED BUMPERS (6) WIDE SCREEN OVERHEAD
CONTROL
(7) LCD WIDE SCREEN TV-ONLY MONITOR (8) LCD WIDE SCREEN MONITOR (9) DISPLAY CONTROLLER
(10) GS-INTERFACE (11) ONLY INSTALLED FOR (12) GS-PINSETTER ELECTICAL BOX
NON-DIRECT CONNECT
GS-98,GS-96, GS-92 OR GS-10
(13) GS PINSETTERS ONLY (14) SINGLE MOUNT TOUCHPADS (15) TOUCHPAD CABLE INTERFACE
(16) DUAL PEDESTAL TOUCHPADS
To Next Page
